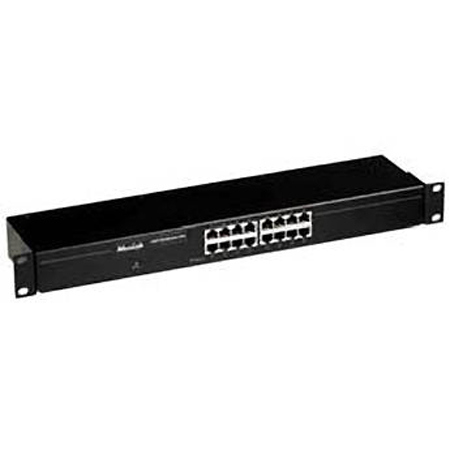

Muxlab CATV Distribution Hub, 16 Ports, 220-240V
See all Muxlab items

Muxlab CATV Distribution Hub, 16 Ports, 220-240V

SKU: ML500304 MFR: 500304
Be the first to review this itemAsk a Question
$1,566.00
OR
$131/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enhance your CATV distribution with this 16-port hub, perfect for apartments & hotels.
  • Supports broadband CATV, VHF, FM, and digital cable for versatile connectivity options.
  • Transparent transmission ensures seamless viewing without any user intervention needed.
  • Ideal for residential, offices, schools, and hospitals needing reliable video distribution.
  • Uses RJ45 connectors for easy setup with set-top tuners and RF splitters, amplifiers.
  • Rack-mountable design fits standard 1U spaces, keeping your setup organized and efficient.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab CATV Distribution Hub, 16 Ports, 220-240V Specifications

  • Compatibility

    500302, 500306 Baluns

  • Environment

    Broadband CATV, VHF, FM, broadband Internet, digital cable. Does not support satellite RF

  • Devices

    Set-top tuners, RF splitters, RF amplifiers, modulators, combiners, re-processors, cable modems

  • Transmission

    Transparent to the user

  • Applications

    Residential, apartment, condominiums, hotels, offices, schools, hospitals, airports, trading floors

  • Frequency Band Supported

    CATV: 54-900 MHz
    Return Channel: 5-42MHz

  • Signal Gain

    Forward path (S21):
    55-450 MHz: > 12 dB, 450-900 MHz: > 10 dB
    Reverse path (S12):
    5-42 MHz: > 0 dB

  • Return Loss

    >5 dB from 5 to 42MHz 6 dB from 55 to 900 MHz

  • Common Mode Rejection Ratio

    > 30 dB from 5 to 900 MHz

  • Mounting

    1U Rack-mount

  • Maximum Distance

    Cat 5 UTP: Dependent on channel frequency, input power and receiver sensitivity

  • LED Indicators

    Power: 1x Green LED

  • Cable

    UTP:
    24 gauge or lower solid copper twisted pair wire impedance: 100Ohms at 1 MHz
    Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' at 1 MHz

    "F":
    Impedance: 75Ohms at 1 MHz (RG6)

  • Connectors

    RF Input: "F" connector
    RF Outputs: 8x or 16x RJ45S depending on model

  • RJ45 Pin Configuration

    RJ45 Pins 7&8

  • Power Requirement

    12VDC at 400 mA

  • Power Supply

    Desktop 110-240V switching power supply
    Input: 100-240V, 0.5A Max, 50-60Hz
    Output: +12V, 1.25A. Output Power: 15W Max. Detachable AC power cord

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -10 to 70 deg. C / 14 to 158 deg. F

  • Humidity

    Up to 95% (non-condensing)

  • Enclosure

    Anodized aluminum

  • Regulatory

    FCC, CE, RoHS

  • Dimensions

    19 x 3.9 x 1.75" / 48.26 x 9.91 x 4.45cm

  • Weight

    41oz / 1162.33g

About Muxlab CATV Distribution Hub, 16 Ports, 220-240V

Become a master of signal distribution with our CATV Distribution Hub, designed to efficiently distribute terrestrial broadband RF video signals to multiple RF receivers. This high-performance hub utilizes Cat5 unshielded twisted pair cable, ensuring a reliable and robust connection for your video and internet needs.

Our CATV Distribution Hub is available in two versatile configurations to suit your specific requirements. Choose from an eight-port model (500300/500301) or a more expansive sixteen-port model (500303/500304), each designed to optimize your RF video equipment setup.

This hub is designed to work seamlessly with Muxlab's passive CATV Balun (500302) and other RF video equipment, providing a comprehensive cabling solution for your home or business. With a 900 MHz bandwidth, it supports a wide range of services including broadband video, broadband Internet, and Digital Cable, making it a versatile addition to any tech setup.

The CATV Distribution Hub is not just about connectivity; it's about enhancing your signal quality too. With built-in gain amplification and port buffering, it ensures a strong, clear signal across all connected devices. This feature makes it an ideal choice for larger installations, where it can be used in conjunction with standard RF distribution equipment to ensure optimal performance.

In summary, the CATV Distribution Hub is a powerful, versatile tool for anyone needing to distribute RF video signals effectively and efficiently. Whether you're setting up a home entertainment system or managing a large-scale installation, this hub offers the connectivity and performance you need.

Muxlab CATV Distribution Hub, 16 Ports, 220-240V Features

  • 900 MHz bandwidth
  • Supports CATV, Internet, digital cable
  • Built-in RF amplifier
  • Bi-directional transmission
  • Works with other standard RF video equipment
  • Compact design
  • Centralized cabling for greater control
  • Cost savings - eliminate costly coaxial cable
  • Quicker moves, adds and changes
  • Neater wiring

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enhance your CATV distribution with this 16-port hub, perfect for apartments & hotels.
  • Supports broadband CATV, VHF, FM, and digital cable for versatile connectivity options.
  • Transparent transmission ensures seamless viewing without any user intervention needed.
  • Ideal for residential, offices, schools, and hospitals needing reliable video distribution.
  • Uses RJ45 connectors for easy setup with set-top tuners and RF splitters, amplifiers.
  • Rack-mountable design fits standard 1U spaces, keeping your setup organized and efficient.

What's in the box:

  • Muxlab CATV Distribution Hub
  • External Power Supply 12VDC/1.25 A
  • Installation Guide
  • Muxlab 2 Year Warranty
