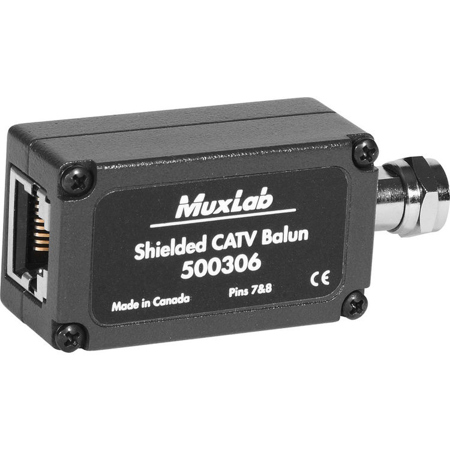

Muxlab Shielded CATV Balun
See all Muxlab items

Muxlab Shielded CATV Balun

SKU: ML500306 MFR: 500306
Be the first to review this itemAsk a Question
$59.95
$61.00
Save: $1.05
Earn VIP Reward Points

Key Features

  • Ensure reliable signal quality with this shielded CATV balun for clear video.
  • Enjoy broad compatibility; connect satellite receivers, DVD players, & more!
  • Extend your surveillance reach up to 330ft using Cat 5 UTP cable with this balun.
  • Weatherproof design ensures durability in diverse environments, indoors or out.
  • Easy install: Connects via standard "F" connector to RJ45 for quick setup.
  • Use with confidence in schools, offices, & residential complexes; FCC/CE approved.
See More Product Details
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.49

2 Year

$10.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Shielded CATV Balun Specifications

  • Environment

    Private and public broadband CATV, VHF and FM networks

  • Devices

    Terrestrial CATV, satellite receivers, DVD players, RF modulators, splitters, cable modems and other broadband video equipment

  • Transmission

    Transparent to the user

  • Applications

    Schools, government, offices, hospitals, financial institutions, hotels and residential complexes

  • 3dB Bandwidth

    5 MHz to 900 MHz

  • Video Channels Supported

    CATV 2-142, VHF channels 2-13, FM broadcast band

  • Insertion Loss Per Pair

    <3 dB: 5 295 MHz, 510 725 MHz
    <4.2 dB: 295 510 MHz, 725 900 MHz

  • Return Loss

    >10 dB: 5 245 MHz, 493 900 MHz
    >9.6 dB: 245 493 MHz

  • Common Mode Rejection

    -20dB or higher at 5 MHz to 900 MHz

  • Cable

    UTP:
    24-AWG or lower solid copper twisted pair
    Impedance: 100-120Ohms

    Coax:
    Impedance: 75Ohms at 1MHz (RG6)

  • Connector

    Input: "F" connector male
    Output: RJ45S female

  • RJ45 Pin Configuration

    RJ45 Pins 7&8

  • Maximum distance

    Up to 100m (330') via Cat 5 UTP depending on channel frequency and input power
    Maximum 100m at CATV Channel 2, May require tilt amplifiers at higher frequencies

  • Enclosure

    Aluminum cast.

  • Regulatory Approval

    FCC, CE

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -10 to 70 deg. C / 14 to 158 deg. F

  • Humidity

    Maximum 95% (non-condensing)

  • Dimensions (L x H x W)

    0.8 x 1.85 x 1.05" / 2.03 x 4.70 x 2.67cm ( with extended F conn.)

  • Weight

    1.5oz / 42.52g

  • UPC Code

    627699003060

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab Shielded CATV Balun

With the innovative and reliable Shielded CATV Balun (500306), you can effortlessly convert your RG6 coaxial cable into a Cat 5e/6/7 STP or UTP cable in any terrestrial RF environment. This high-quality balun is designed for use in pairs, enabling seamless integration of broadband CATV equipment into your structured cabling system. This efficient setup allows for the relocation or addition of CATV equipment to any modular wall outlet at your convenience.

When utilized with shielded twisted pair cable, this durable balun supports enhanced RF amplification, enabling greater transmission distances. This feature also significantly reduces EMI/RFI egress, providing superior performance compared to the CATV Balun II (500302).

The Shielded CATV Balun is not just a product, but a universal solution for diverse applications. It offers better protection against electromagnetic interference, making it a top choice for those seeking a reliable and efficient networking solution. Whether you're looking to distribute cable TV signals throughout a building or home, this balun ensures a smooth and uninterrupted signal transmission, making it an essential tool in any modern networking setup.

Muxlab Shielded CATV Balun Features

  • Bandwidth up to 900 MHz including Internet, digital cable
  • Supports Cat5e/6/7 STP and UTP
  • Fits side-by-side on most RF splitters
  • Lower EMI /RFI egress when STP is used
  • Cast aluminum enclosure for maximum EMI/RFI shielding
  • Low insertion loss

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure reliable signal quality with this shielded CATV balun for clear video.
  • Enjoy broad compatibility; connect satellite receivers, DVD players, & more!
  • Extend your surveillance reach up to 330ft using Cat 5 UTP cable with this balun.
  • Weatherproof design ensures durability in diverse environments, indoors or out.
  • Easy install: Connects via standard "F" connector to RJ45 for quick setup.
  • Use with confidence in schools, offices, & residential complexes; FCC/CE approved.

What's in the box:

  • Muxlab Shielded CATV Balun
  • Muxlab Lifetime Warranty
