Muxlab DVI/USB 2.0 Over HDBaseT Extender Kit
See all Muxlab items

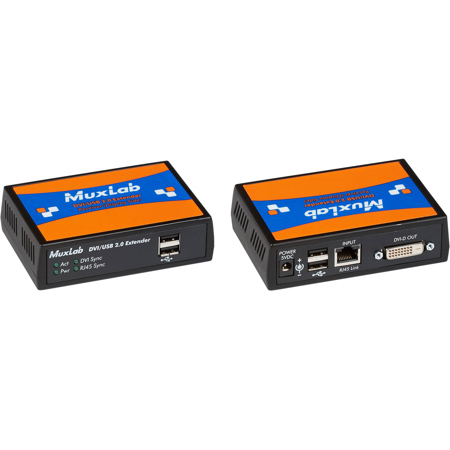

Muxlab DVI/USB 2.0 Over HDBaseT Extender Kit

SKU: ML500391
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab DVI/USB 2.0 Extender Kit Specifications

  • Environment

    DVI 1.0 (Single Channel) & USB 2.0

  • Devices

    Projectors, monitors, PC, laptops, mouse, keyboard, webcam

  • Transmission

    Transparent to the user

  • Applications

    KMV / AV systems
    Classroom projector systems
    Digital signage
    Boardroom systems
    Collaborative PC systems
    Medical information systems

  • Bandwidth

    340 MHz

  • Signals

    DVI 1.0 protocol, USB2.0

  • USB

    One input (type B) on TX side and 4 output (type A) on RX. Bandwidth available: Up to 250 Mbps

  • Connectors

    1x DVI-D receptacle
    1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair On TX: 1 standard USB connector type B On RX: 4 standard USB connector type A

  • Max. Distance

    Cat 5e/6: 330'/ 100m up to 1920x1200
    230'/ 70m for 4K (3840x2160 at 24 / 25 / 30Hz) (Based on a maximum length of 6.6' / 2m of DVI cable per end.)

  • RJ45 Pin Configuration

    RJ45 Link
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Reverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight through wiring)

  • Cable

    Cat 5e/6 or better twisted pair cables required

  • Power Supply

    2x 110-240V/5VDC power supplies with interchangeable blades

  • Power Consumption

    Transmitter: 3 W
    Receiver: 7 W

  • Enclosure

    Aluminum

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    4.50 x 3.00 x 1.25" / 11.43 x 7.62 x 3.18cm

  • Weight

    2.6lbs / 1.18kg

About Muxlab DVI/USB 2.0 Extender Kit

The DVI / USB2.0 HDBaseT Extender Kit allows one DVI channel and one USB2.0 channel to be transmitted over distances of up to 330' (100m) at all resolutions up to 1920½ 1200 via single Cat5e/6 cable, 4K (3840½ 2160) to 230' (70m). The Receiver features a 4-port USB2.0 hub for transferring of multiple USB2.0 data transmissions.

Muxlab DVI/USB 2.0 Extender Kit Features

  • Extends DVI and line level stereo audio via single Cat5e/6 cable
  • Up to 330' (100m) at all resolutions up to 1920x1200 via one Cat5e/6
  • HDBaseT technology
  • Supports 4K resolutions up to 230' (70m)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extends DVI and line level stereo audio via single Cat5e/6 cable
  • Up to 330' (100m) at all resolutions up to 1920x1200 via one Cat5e/6
  • HDBaseT technology
  • Supports 4K resolutions up to 230' (70m)

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • Muxlab 2 Year warranty
