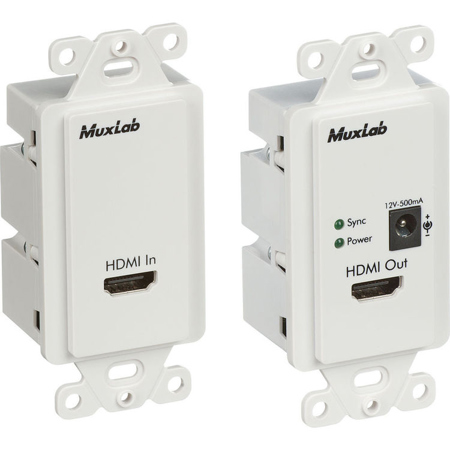

Muxlab HDMI Wall Plate Extender Kit, United States

SKU: ML500401WPUS MFR: 500401-WP-US
$198.00
$264.00
Save: $66 (25%)
Earn VIP Reward Points

Key Features

  • Extend HDMI signals up to 200 ft with this HDMI Wall Plate Extender Kit for seamless connectivity.
  • This HDMI extender supports resolutions up to 1080p, delivering crystal-clear images for your displays.
  • Enjoy easy installation with included adhesive pads, perfect for DVD, PC, and other HDMI devices.
  • Our power supply is designed for optimal performance, ensuring a stable connection for your devices.
  • This durable extender kit features a robust ABS fire-retardant plastic enclosure for added safety.
  • Experience transparent transmission with 225MHz bandwidth, maintaining signal integrity for your devices.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum distance this HDMI Wall Plate Extender Kit can cover?

The HDMI Wall Plate Extender Kit can cover distances up to 150 ft (45m) at 1080p resolution using two Cat5e cables.

Does the HDMI Wall Plate Extender Kit come with everything needed for installation?

Yes, the kit includes a transmitter, a receiver, and a power supply for a complete installation.

Can the HDMI Wall Plate Extender Kit be used without external power?

Yes, the HDMI Wall Plate Extender Kit can operate without external power, offering flexibility in installation scenarios.

Is this HDMI Wall Plate Extender Kit compatible with other brands?

The HDMI Wall Plate Extender Kit is compatible with MuXLab mounting accessories and Decora [TM] products, making it a versatile choice for various systems.

Does the HDMI Wall Plate Extender Kit support high-quality visuals?

Yes, the HDMI Wall Plate Extender Kit supports 1080p Deep Color up to 90 ft (27m) when using Cat6 cables, offering vibrant, rich colors for an enhanced viewing experience.

Reviews about this item

Review Summary

Muxlab Extender Kit Specifications

  • Mounting

    Adhesive pads included

  • Environment

    HDMI 1.3a (Supports the 3D feature of HDMI 1.4)

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI
    Compatible with MuxLab p/n 500401

  • Transmission

    Transparent to the user

  • Bandwidth

    225MHz

  • Signals

    HDMI 1.3a protocol

  • Connectors

    HDMI receptacle
    2x RJ45S for Cat5 unshielded or shielded twisted pair

  • Power Switch

    Switch on rear panel to select between Power or No-Power
    Factory setting - Power

  • Maximum Distance

    480i/p: Cat5e: 300" / 91.44m, Cat6: 300" / 91.44m
    720p, 1080i: Cat5e: 200" / 60.96m, Cat6: 250" / 76.20m
    1080p 8-bit: Cat5e: 150" / 45.72m, Cat6: 200" / 60.96m
    1080p 12-bit Deep Color: Cat6: 90" / 27.43m
    "No Power" Mode: Cat5e: 100" / 30.48m, Cat6: 100" / 30.48m
    (Based on a maximum length of 6.6" / 2.01m of HDMI cable per end.)

  • RJ45 Pin Configuration

    RJ45 A (video)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

    RJ45 B (DDC)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    2x Category 5e or better twisted pair cables required

  • Power Supply

    1x 110-240V/12VDC power supply with interchangeable blades

  • Power Consumption

    3W

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    ABS fire retardant plastic, Color white, Finish glossy

  • Compliance

    Regulatory: FCC, CE, RoHS, European Standard for 86mm / 3.39" faceplate
    Flammability: 94V0

  • Dimensions

    4.1 x 1.8 x 1.44" / 104.14 x 45.72 x 36.58mm
    Choose 1.6" / 40.64mm deep back box to allowfor Cat 5e/6 wiring connection.

  • Weight

    1.6lbs / 0.73kg

  • UPC Code

    627699924013

About Muxlab Extender Kit

When seeking a reliable and efficient solution for extending your HDMI connections, the HDMI Wall Plate Extender Kit (500401-WP) stands out as a superior choice. This high-quality product, manufactured by the reputable brand Muxlab, allows HDMI devices to be connected over distances of up to 150 ft (45m) using two Cat5e unshielded twisted pair cables. This point-to-point configuration supports 1080p resolution, ensuring crystal clear image quality.

The HDMI Wall Plate Extender Kit also supports 1080p Deep Color up to 90 ft (27m) when using Cat6 cables, offering vibrant, rich colors for an enhanced viewing experience. The kit is comprehensive, including one transmitter, one receiver, and one power supply, providing everything you need for a straightforward installation.

One of the standout features of the 500401-WP is its versatility. It can operate without external power, offering flexibility in various installation scenarios. Additionally, it's compatible with MuXLab mounting accessories and Decora [TM] products, making it a versatile choice for both commercial and residential AV systems.

Whether you're setting up a classroom projector system, digital signage, a boardroom system, a collaborative PC system, or a medical information system, this HDMI Wall Plate Extender Kit is designed to meet your needs. Its stylish design ensures it blends seamlessly into any environment, while its durability guarantees long-lasting performance. Experience the convenience and quality of the HDMI Wall Plate Extender Kit (500401-WP) for your HDMI extension needs.

Muxlab Extender Kit Features

  • High-quality HDMI Wall Plate Extender Kit for reliable connections
  • Supports 1080p resolution over distances up to 150 ft with Cat5e cables
  • Ensures vibrant visuals with 1080p Deep Color up to 90 ft using Cat6 cables
  • Complete kit includes one transmitter, one receiver, and one power supply
  • Operates without external power for added flexibility in installation
  • Compatible with MuXLab mounting accessories and Decora [TM] products for versatile use in commercial and residential settings

Key Features

  • Extend HDMI signals up to 200 ft with this HDMI Wall Plate Extender Kit for seamless connectivity.
  • This HDMI extender supports resolutions up to 1080p, delivering crystal-clear images for your displays.
  • Enjoy easy installation with included adhesive pads, perfect for DVD, PC, and other HDMI devices.
  • Our power supply is designed for optimal performance, ensuring a stable connection for your devices.
  • This durable extender kit features a robust ABS fire-retardant plastic enclosure for added safety.
  • Experience transparent transmission with 225MHz bandwidth, maintaining signal integrity for your devices.

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • Power Supply
  • Velcro Pads
  • Muxlab 2 Year Warranty
