Muxlab Extender Kit Specifications

  • Environment

    HDMI and DVI-D

  • Devices

    DVD, plasma displays, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Bandwidth

    225 MHz

  • Standard

    HDMI 1.4

  • Connectors

    HDMI receptacle
    2x RJ45S for Cat5 unshielded or shielded twisted pair

  • Maximum Distance

    480i/p: Cat5e: 150" / 45.72m & Cat6:  200" / 60.96m
    720p, 1080i: Cat5e: 150" / 45.72m & Cat6:  200" / 60.96m
    1080p: Cat5e: 100" / 30.48m & Cat6:  150" / 45.72m
    (Based on a maximum length of 6.6" / 2.01m of HDMI cable per end.)

  • RJ45 Pin Configuration

    RJ45 A (video)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

    RJ45 B (DDC)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight-through wiring.)

  • Cable

    2x Cat5e or better twisted pair cables required

  • Compliance

    Regulatory: FCC Class A, CE, RoHS
    Flammability: 94V0

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    PVC fire retardant plastic

  • Dimensions

    10.6 x 1.9 x 0.8" / 269.24 x 48.26 x 20.32mm

  • Weight

    10.9oz / 309.01g

  • UPC Code

    627699004029

About Muxlab Extender Kit

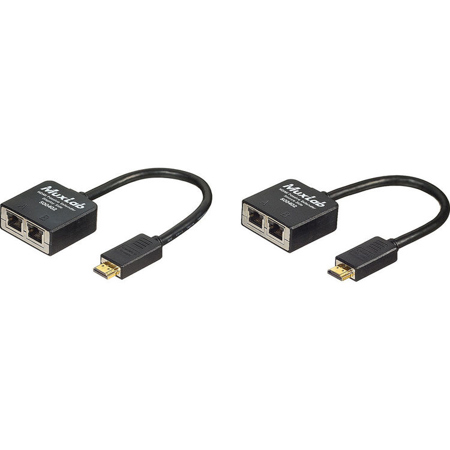

The HDMI Passive Extender Kit (500402) allows HDMI equipment to be connected up to 100 ft (30m) via two (2) Cat5e unshielded twisted pair cables in a point-to-point configuration at 1080p resolution. The product works with 1080p up to 150 ft (45m) via Cat6 cables. The kit comes with one (1) transmitter and one (1) receiver.

• HDMI 1.4
• Up to 100 ft (30m) at 1080p via Cat5e
• Up to 150 ft (45m) at 1080p via Cat6
• Connect via two (2) Cat5e/6 cables
• No external power required
• Supports HDMI 3D
• Works with Deep Color equipment

Applications
Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • Muxlab 2 Year Warranty
