Muxlab HDMI/Bi-IR Extender Kit
See all Muxlab items

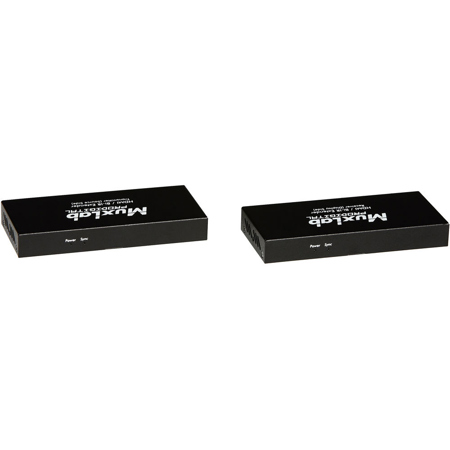

Muxlab HDMI/Bi-IR Extender Kit

SKU: ML500404
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab HDMI/Bi-IR Extender Kit Specifications

  • Environment

    HDMI 1.3a (Supports the 3D feature of HDMI 1.4)

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.

  • Applications

    Commercial and residential audio systems
    Boardroom systems
    Collaborative PC systems
    Medical information systems

  • Transmission

    Transparent to the user

  • Bandwidth

    225 MHz

  • Signals

    HDMI 1.3a protocol

  • Connectors

    1x HDMI receptacle
    1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    2x 3.5mm jacks for IR emitter and sensor

  • Maximum Distance

    40m (130') at 1080p over Cat 5e/6
    70m (230') at 1080i/720p over Cat6
    50m (164') at 1080i/720p over Cat5e (Based on a maximum length of6.6' (2 m) of HDMI cable per end)

  • RJ45 Pin Configuration

    RJ45 Link
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    Cat 5e/6 or better twisted pair cables required

  • Power Supply

    2x 110-240V/12VDC power supplies with interchangeable blades

  • Power Consumption

    Transmitter: 5 W
    Receiver: 5 W

  • Enclosure

    Metal

  • Wall-Mount Bracket

    4x Wall-Mount Brackets and screws

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Operating Temperature

    0 to 35 deg. C / 32 to 95 deg. F

  • Storage Temperature

    -20 to 70 deg. C / -4 to 158 deg. F

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    5.00 x 2.12 x 0.67" / 12.70 x 5.38 x 1.70cm

  • Weight

    1.4lbs / 0.64kg

  • UPC Code

    627699004043

About Muxlab HDMI/Bi-IR Extender Kit

The HDMI / Bi-IR Extender Kit allows HDMI equipment to be connected via one Cat 5e/6 unshielded twisted pair cables in a point-to-point configuration. The kit comes with one (1) Transmitter and one (1) Receiver as well as an IR Emitter and IR Sensor for remote control applications. Four (4) mounting Ear are also provided for wall-mount applications.

Muxlab HDMI/Bi-IR Extender Kit Features

  • 70m (230') at 1080p/720p over Cat6
  • 50m (164') at 1080p/720p over Cat5e
  • Comes with one (1) Transmitter and one (1) Receiver as well as an IR Emitter and IR Sensor for remote control applications

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 70m (230') at 1080p/720p over Cat6
  • 50m (164') at 1080p/720p over Cat5e

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • IR Emitter
  • IR Sensor
  • 4x Wall-Mount Brackets and Screws
  • Muxlab 2 Year Warranty
