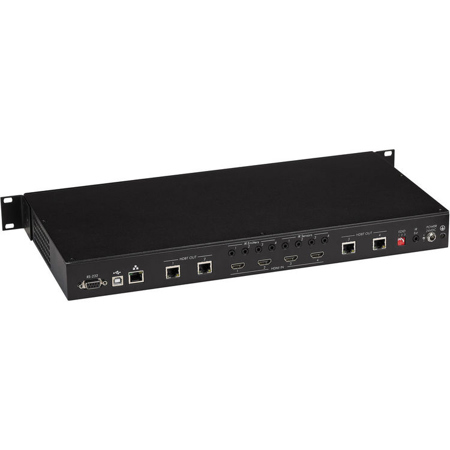

Muxlab HDMI 4x4 Matrix Switch, HDBT, POE, United Kingdom

SKU: ML500416UK MFR: 500416-POE-UK
Earn VIP Reward Points

Key Features

  • Seamless HDMI matrix switching for up to 4 sources with low latency, ensuring smooth transitions.
  • Extend your HDMI signals up to 230ft via HDBaseT, perfect for home theaters & commercial setups.
  • Control your video matrix via IR, RS232, USB, or webserver for ultimate flexibility and easy setup.
  • Power over Ethernet (PoE) support simplifies installation, reducing cable clutter for clean setup.
  • Enjoy wide compatibility with LCDs, projectors, Blu-ray players, and gaming consoles via HDMI.
  • Reliable video distribution with this 4x4 HDMI matrix, supporting resolutions for crystal-clear images.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Matrix Switch Specifications

  • Environment

    HDMI 1.4A, 3D Support
    HDBaseT

  • Devices

    LCD and Plasma TVs, DVD and Blu-Ray players, monitors, projectors, PCs, laptops, home theatre systems, home theatre PCs, game consoles, servers that support HDMI.

  • Transmission

    Transparent to the user

  • Matrix Switching Time

    3 seconds (maximum)

  • Connectors

    Input: 4x HDMI and 4x IR sensors (3.5mm / 0.14" stereo)
    Output: 4x HDBaseT (RJ45) and 4x IR emitters (3.5mm / 0.14" mono)

  • Connectivity

    Ethernet LAN (RJ45), USB (Type B) and RS232 (DB9)

  • Maximum Distance HDMI Switch to Display

    UTP/STP Cat 5e/6 output port: 230" / 70.10m
    (Based upon a maximum length of 6.6" / 2.01m of HDMI cable per end.)

  • RJ45 Pin Configuration

    RJ45 A (HDMI A)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

    RJ45 B (HDMI B)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    1x Cat 5e/6 UTP/STP cable (or better) required per HDBaseT port

  • Power Supply

    1x 110-240V/24VDC, 5A power supply with detachable IEC power cord

  • IR Remote

    Includes 4x IR emitters and 1x handheld remote control

  • Compatible Receivers

    500451-RX, 500454-RX, 500454-POE-RX

  • LED Diagnostics

    Power (Blue) Connections Status (Green) LAN (Link (Green) and Activity (Yellow))

  • Matrix control

    Pushbutton, IR, USB, RS232 and webserver interface

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity : Up to 95% non-condensing

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Dimensions

    1U Rack Mountable: 16.9 x 8.7 x 1.8" / 429.26 x 220.98 x 45.72mm

About Muxlab Matrix Switch

Bring high-definition video to your commercial or residential AV systems, classroom projectors, digital signage, boardroom systems, collaborative PC systems, and medical video systems with the HDMI 4x4 Matrix Switch, HDBT (500416-POE). This advanced device allows for the connection and distribution of up to four distinct HDMI sources to as many as four HDMI displays, all via Cat5e/6 unshielded twisted pair cable.

Designed to work seamlessly with MuXLab's HDMI receivers (500454-RX, 500454-POE-RX), this HDMI 4x4 Matrix Switch supports a range of up to 230 feet (70m) at all resolutions up to 1080p when used with a Cat5e cable. This ensures clear, high-quality video transmission even over long distances, making it an ideal solution for large spaces.

The HDMI 4x4 Matrix Switch also supports Power Over Ethernet (POE) when used with the 500454-POE-RX receiver, reducing the need for additional power sources and simplifying your setup.

Control of this device is versatile and user-friendly, with management functions including a pushbutton, IR, USB, RS232, and a webserver interface. This allows for easy switching between sources and displays, ensuring a smooth and efficient user experience.

Additionally, the HDMI 4x4 Matrix Switch supports IR matrix and source control, providing further flexibility in managing your video sources. The package includes four IR emitters and a wireless remote for added convenience.

In summary, the HDMI 4x4 Matrix Switch, HDBT, POE is a robust and versatile solution for managing multiple HDMI sources and displays, offering high-quality video transmission, extensive range, and user-friendly control options.

Muxlab Matrix Switch Features

  • High-definition HDMI 4x4 Matrix Switch for commercial and residential AV systems
  • Connects and distributes up to four HDMI sources to four HDMI displays via Cat5e/6 cable
  • Works seamlessly with MuXLab's HDMI receivers, supporting a range of up to 230 feet at all resolutions up to 1080p
  • Supports Power Over Ethernet (POE) when used with the 500454-POE-RX receiver
  • Versatile control options including pushbutton, IR, USB, RS232, and webserver interface
  • Package includes four IR emitters & a wireless remote for convenient control & source management

Key Features

  • Seamless HDMI matrix switching for up to 4 sources with low latency, ensuring smooth transitions.
  • Extend your HDMI signals up to 230ft via HDBaseT, perfect for home theaters & commercial setups.
  • Control your video matrix via IR, RS232, USB, or webserver for ultimate flexibility and easy setup.
  • Power over Ethernet (PoE) support simplifies installation, reducing cable clutter for clean setup.
  • Enjoy wide compatibility with LCDs, projectors, Blu-ray players, and gaming consoles via HDMI.
  • Reliable video distribution with this 4x4 HDMI matrix, supporting resolutions for crystal-clear images.

What's in the box:

  • Muxlab HDMI 4x4 Matrix Switch
  • 1x USB Type A to Type B Cable
  • 1x RS232 Cable
  • 4x IR Sensors
  • 4x IR Emitters
  • Matrix Switch Remote Control
  • 110-240V / 24VDC 5A Power Supply with UK Adapter
  • Muxlab 2 Year Warranty
