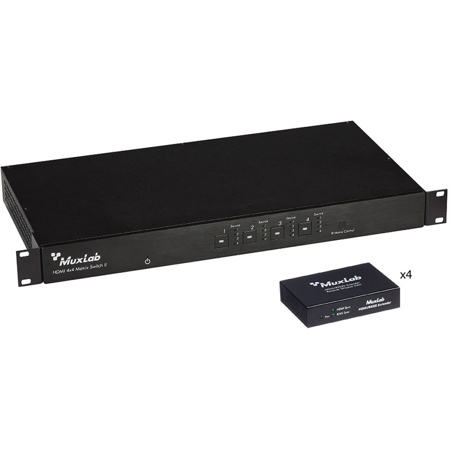

Muxlab HDMI 4x4 Matrix Switch United Kingdom Kit, Includes HDMI / RS232 Receiver with POE, 4x IR Sensors and 4x IR Emitters

SKU: ML500416UKKI MFR: 500416-POE-UK-KIT
Earn VIP Reward Points

Key Features

  • Effortlessly switch between four HDMI sources with this Muxlab HDMI Matrix Switch.
  • Enjoy high-quality video distribution to four displays using HDBaseT technology.
  • Control your matrix switch via IR, USB, RS232, or webserver for ultimate convenience.
  • Extend HDMI signals up to 230ft with Cat5e/6 cable for remote display setups.
  • Perfect for home theaters, conference rooms, or digital signage applications.
  • This HDMI switch kit includes everything needed for easy setup and operation.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Matrix Kit Specifications

  • Matrix Switch: Environment

    HDMI 1.4A, 3D Support
    HDBaseT

  • Matrix Switch: Devices

    LCD and Plasma TVs, DVD and Blu-Ray players, monitors, projectors, PCs, laptops, home theatre systems, home theatre PCs, game consoles, servers that support HDMI.

  • Matrix Switch: Transmission

    Transparent to the user

  • Matrix Switch: Matrix Switching Time

    3 seconds (maximum)

  • Matrix Switch: Connectors

    Input: 4x HDMI and 4x IR sensors (3.5mm / 0.14" stereo)
    Output: 4x HDBaseT (RJ45) and 4x IR emitters (3.5mm / 0.14" mono)

  • Matrix Switch: Connectivity

    Ethernet LAN (RJ45), USB (Type B) and RS232 (DB9)

  • Matrix Switch: Maximum Distance

    HDMI Switch to Display: UTP/STP Cat 5e/6 output port: 230" / 70.10m
    (Based upon a maximum length of 6.6" / 2.01m of HDMI cable per end.)

  • Matrix Switch: RJ45 Pin Configuration

    RJ45 A (HDMI A)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

    RJ45 B (HDMI B)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Matrix Switch: Cable

    1x Cat 5e/6 UTP/STP cable (or better) required per HDBaseT port

  • Matrix Switch: Power Supply

    1x 110-240V/24VDC, 5A power supply with detachable IEC power cord

  • Matrix Switch: IR Remote

    Includes 4x IR emitters and 1x handheld remote control

  • Matrix Switch: Compatible Receivers

    500451-RX, 500454-RX, 500454-POE-RX

  • Matrix Switch: LED Diagnostics

    Power (Blue) Connections Status (Green) LAN (Link (Green) and Activity (Yellow))

  • Matrix Switch: Matrix control

    Pushbutton, IR, USB, RS232 and webserver interface

  • Matrix Switch: Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity : Up to 95% non-condensing

  • Matrix Switch: Regulatory

    FCC, CE, RoHS, WEEE

  • Receiver: Environment

    HDMI 1.3a, HDBaseT (5 Play technology). (Supports the 3D feature of HDMI 1.4)
    Supports all digital audio modes

  • Receiver: Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Receiver: Transmission

    Transparent to the user

  • Receiver: Bandwidth

    340 MHz

  • Receiver: Signals

    HDMI 1.3a, HDBaseT, Digital audio: 7.1CH, Dolby TrueHD, DTS-HD

  • Receiver: Connectors

    1x HDMI receptacle
    1x RJ45S for Link
    1x DB9 for RS232
    2x 3.5mm / 0.14" jacks for IR emitter and IR Sensor

  • Receiver: Maximum Distance

    Cat 5e/6: 230" / 70.10m up to 1080P Deep Color
    115" / 35.05m for 4K, 3840 x 2160/24,25,30 Hz
    ( Based on a maximum length of 6.6" / 2.01m of HDMI cable per end)

  • Receiver: RJ45 Pin Configuration

    RJ45
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight through wiring.)

  • Receiver: Cable

    1x Cat5e/6 or better twisted pair cable required

  • Receiver: Power Supply

    1x POE power supply

  • Receiver: Power Consumption

    Transmitter: 1.6W
    Receiver: 3.2W

  • Receiver: Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity : Up to 95% non-condensing

  • Receiver: Enclosure

    Metal

  • Receiver: Compliance

    Regulatory: FCC, CE, RoHS Flammability: 94V0

  • Dimensions

    Receiver: 4.4 x 3 x 1" / 111.76 x 76.20 x 25.40mm
    Matrix Switch: 1U Rack Mountable: 16.9 x 8.7 x 1.8" / 429.26 x 220.98 x 45.72mm

  • Weight

    Receiver: 1.4lbs / 0.64kg

About Muxlab Matrix Kit

Why settle for less when you can experience the advanced functionality of the HDMI 4x4 Matrix Switch United Kingdom Kit This high-tech device allows for the connection and distribution of up to four distinct HDMI sources to four separate HDMI displays using Cat5e/6 unshielded twisted pair cable.

Designed to work seamlessly with MuXLab's HDMI receivers (500454-RX, 500454-POE-RX), this innovative matrix switch supports distances of up to 230 feet (70m) at all resolutions up to 1080p via Cat5e cable. This state-of-the-art product offers a variety of management functions, including pushbutton, IR, USB, RS232, and a webserver interface.

The kit includes 1 x 500416-POE-US + 4 x 500454-POE-RX Matrix Switch, providing HDBaseT switching via one Cat5e/6 cable. It supports POE when used with 500454-POE-RX, offering the convenience of power over Ethernet.

Control options are diverse, encompassing pushbutton, IR, USB, RS232, and webserver. The product supports IR matrix and source control, and comes with four IR emitters plus a wireless remote HDMI / RS232 Receiver with POE.

The HDMI 4x4 Matrix Switch supports 3D of HDMI 1.4, all digital audio modes, RS232, and bi-directional IR remote source control. It includes an IR Emitter (500998) and IR Sensor (500999), and can function at distances of up to 230 feet (70m) at all resolutions up to 1080p via a single Cat5e/6 cable.

This sophisticated device is ideal for a variety of applications, including commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical video systems. Experience the future of HDMI distribution with the HDMI 4x4 Matrix Switch United Kingdom Kit.

Muxlab Matrix Kit Features

  • Advanced HDMI 4x4 Matrix Switch for seamless connection & distribution of up to four HDMI sources
  • High-tech device that supports distances up to 230 feet at all resolutions up to 1080p via Cat5e cable
  • Includes Power over Ethernet (POE) feature for convenience and ease of installation
  • Diverse control options including pushbutton, IR, USB, RS232, and webserver interface
  • Supports 3D of HDMI 1.4, all digital audio modes, and bi-directional IR remote source control
  • Ideal for commercial and residential AV systems, classroom projectors, digital signage, and more

Key Features

  • Effortlessly switch between four HDMI sources with this Muxlab HDMI Matrix Switch.
  • Enjoy high-quality video distribution to four displays using HDBaseT technology.
  • Control your matrix switch via IR, USB, RS232, or webserver for ultimate convenience.
  • Extend HDMI signals up to 230ft with Cat5e/6 cable for remote display setups.
  • Perfect for home theaters, conference rooms, or digital signage applications.
  • This HDMI switch kit includes everything needed for easy setup and operation.

What's in the box:

  • Muxlab HDMI 4x4 Matrix Switch
  • HDMI / RS232 Receiver with POE
  • 1x USB Type A to Type B Cable
  • 1x RS232 Cable
  • 4x IR Sensors
  • 4x IR Emitters
  • Matrix Switch Remote Control
  • 110-240V / 24VDC 5A Power Supply with UK Adapter
  • Muxlab 2 Year Warranty
