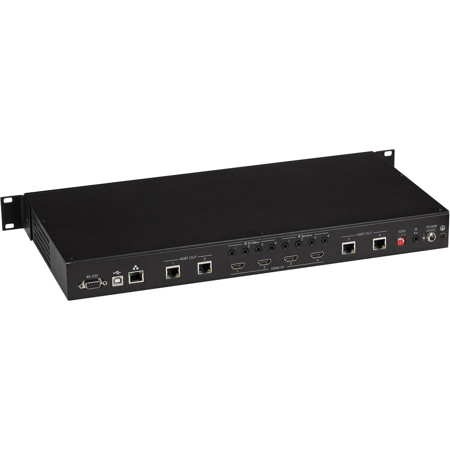

Muxlab HDMI 4x4 Matrix Switch United States Kit, Includes HDMI / RS232 Receiver with POE, 4x IR Sensors and 4x IR Emitters

SKU: ML500416USKI MFR: 500416-POE-US-KIT
Earn VIP Reward Points

Key Features

  • Seamless HDMI matrix switching for up to 4 sources with low latency, high-resolution output.
  • Enjoy reliable connections and easy setup with this HDMI switch, perfect for home theaters.
  • Control your video distribution via IR, USB, or RS232; a versatile video switcher for any setup.
  • This 4x4 HDMI matrix supports 3D, ensuring your content looks its best on compatible displays.
  • Extend HDMI signals up to 230ft with HDBaseT, making it ideal for large homes or commercial spaces.
  • Wide compatibility: Use with DVD players, PCs, & more for a streamlined AV experience; great value.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Matrix Kit Specifications

  • Matrix Switch: Environment

    HDMI 1.4A, 3D Support
    HDBaseT

  • Matrix Switch: Devices

    LCD and Plasma TVs, DVD and Blu-Ray players, monitors, projectors, PCs, laptops, home theatre systems, home theatre PCs, game consoles, servers that support HDMI.

  • Matrix Switch: Transmission

    Transparent to the user

  • Matrix Switch: Matrix Switching Time

    3 seconds (maximum)

  • Matrix Switch: Connectors

    Input: 4x HDMI and 4x IR sensors (3.5mm / 0.14" stereo)
    Output: 4x HDBaseT (RJ45) and 4x IR emitters (3.5mm / 0.14" mono)

  • Matrix Switch: Connectivity

    Ethernet LAN (RJ45), USB (Type B) and RS232 (DB9)

  • Matrix Switch: Maximum Distance

    HDMI Switch to Display: UTP/STP Cat 5e/6 output port: 230" / 70.10m
    (Based upon a maximum length of 6.6" / 2.01m of HDMI cable per end.)

  • Matrix Switch: RJ45 Pin Configuration

    RJ45 A (HDMI A)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

    RJ45 B (HDMI B)
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Matrix Switch: Cable

    1x Cat 5e/6 UTP/STP cable (or better) required per HDBaseT port

  • Matrix Switch: Power Supply

    1x 110-240V/24VDC, 5A power supply with detachable IEC power cord

  • Matrix Switch: IR Remote

    Includes 4x IR emitters and 1x handheld remote control

  • Matrix Switch: Compatible Receivers

    500451-RX, 500454-RX, 500454-POE-RX

  • Matrix Switch: LED Diagnostics

    Power (Blue) Connections Status (Green) LAN (Link (Green) and Activity (Yellow))

  • Matrix Switch: Matrix control

    Pushbutton, IR, USB, RS232 and webserver interface

  • Matrix Switch: Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity : Up to 95% non-condensing

  • Matrix Switch: Regulatory

    FCC, CE, RoHS, WEEE

  • Receiver: Environment

    HDMI 1.3a, HDBaseT (5 Play technology). (Supports the 3D feature of HDMI 1.4)
    Supports all digital audio modes

  • Receiver: Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Receiver: Transmission

    Transparent to the user

  • Receiver: Bandwidth

    340 MHz

  • Receiver: Signals

    HDMI 1.3a, HDBaseT, Digital audio: 7.1CH, Dolby TrueHD, DTS-HD

  • Receiver: Connectors

    1x HDMI receptacle
    1x RJ45S for Link
    1x DB9 for RS232
    2x 3.5mm / 0.14" jacks for IR emitter and IR Sensor

  • Receiver: Maximum Distance

    Cat 5e/6: 230" / 70.10m up to 1080P Deep Color
    115" / 35.05m for 4K, 3840 x 2160/24,25,30 Hz
    ( Based on a maximum length of 6.6" / 2.01m of HDMI cable per end)

  • Receiver: RJ45 Pin Configuration

    RJ45
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight through wiring.)

  • Receiver: Cable

    1x Cat5e/6 or better twisted pair cable required

  • Receiver: Power Supply

    1x POE power supply

  • Receiver: Power Consumption

    Transmitter: 1.6W
    Receiver: 3.2W

  • Receiver: Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity : Up to 95% non-condensing

  • Receiver: Enclosure

    Metal

  • Receiver: Compliance

    Regulatory: FCC, CE, RoHS Flammability: 94V0

  • Dimensions

    Receiver: 4.4 x 3 x 1" / 111.76 x 76.20 x 25.40mm
    Matrix Switch: 1U Rack Mountable: 16.9 x 8.7 x 1.8" / 429.26 x 220.98 x 45.72mm

  • Weight

    Receiver: 1.4lbs / 0.64kg

  • UPC Code

    00627699014165

About Muxlab Matrix Kit

Just imagine the convenience and efficiency of being able to connect and distribute up to four different HDMI sources to four HDMI displays using just one device. That's exactly what the advanced HDMI 4x4 Matrix Switch HDBT (500416-POE) offers. This sophisticated piece of technology allows for seamless switching between multiple devices such as gaming consoles, computers, and Blu-ray players, all via a Cat5e/6 unshielded twisted pair cable.

This high-quality HDMI Matrix Switch is compatible with MuXLab's HDMI receivers (500454-RX, 500454-POE-RX), supporting distances of up to 230 feet (70m) at all resolutions up to 1080p via Cat5e cable. This makes it an ideal solution for both commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical video systems.

The HDMI 4x4 Matrix Switch is not just efficient, but also offers a range of management functions. These include pushbutton, IR, USB, RS232, and a webserver interface. The kit includes 1 x 500416-POE-US + 4 x 500454-POE-RX Matrix Switch, ensuring you have everything you need to get started.

One of the standout features of this reliable HDMI Matrix Switch is its support for POE (Power over Ethernet) when used with 500454-POE-RX. This allows for easy powering of the switch without the need for an additional power outlet, making it a perfect choice for remote locations or areas with limited access to power outlets.

The HDMI / RS232 Receiver with POE supports 3D of HDMI 1.4, all digital audio modes, and RS232. It also supports bi-directional IR remote source control and includes an IR Emitter (500998) and IR Sensor (500999). This ensures you have complete control over your HDMI sources and displays, no matter where you are.

In conclusion, the HDMI 4x4 Matrix Switch HDBT (500416-POE) is a versatile, high-quality solution for anyone needing to connect and distribute multiple HDMI sources to multiple displays.

Muxlab Matrix Kit Features

  • 4x4 HDMI Matrix Switch with seamless switching for multiple devices
  • Extended range up to 230ft at 1080p resolution via Cat5e/6 cable
  • Compatible with MuXLab HDMI receivers for advanced connectivity
  • Integrated POE support for simplified power management
  • Comprehensive control options including IR, USB, RS232, and web interface
  • Includes 4 IR emitters and sensors for remote source management

Key Features

  • Seamless HDMI matrix switching for up to 4 sources with low latency, high-resolution output.
  • Enjoy reliable connections and easy setup with this HDMI switch, perfect for home theaters.
  • Control your video distribution via IR, USB, or RS232; a versatile video switcher for any setup.
  • This 4x4 HDMI matrix supports 3D, ensuring your content looks its best on compatible displays.
  • Extend HDMI signals up to 230ft with HDBaseT, making it ideal for large homes or commercial spaces.
  • Wide compatibility: Use with DVD players, PCs, & more for a streamlined AV experience; great value.

What's in the box:

  • Muxlab HDMI 4x4 Matrix Switch
  • HDMI / RS232 Receiver with POE
  • 1x USB Type A to Type B Cable
  • 1x RS232 Cable
  • 4x IR Sensors
  • 4x IR Emitters
  • Matrix Switch Remote Control
  • 110-240V / 24VDC 5A Power Supply with US Adapter
  • Muxlab 2 Year Warranty
