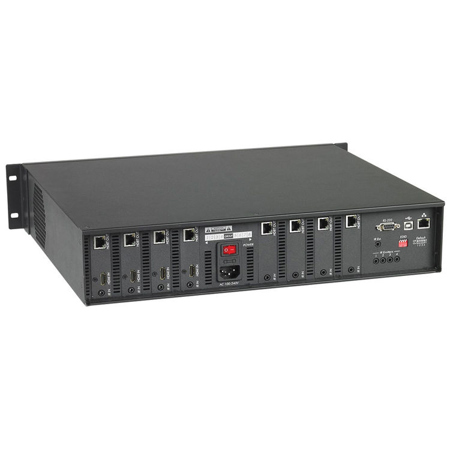

Muxlab HDMI 4x8 Matrix Switch, HDBT PoE, United States

SKU: ML500418US MFR: 500418-POE-US
Earn VIP Reward Points

Key Features

  • Effortlessly switch HDMI sources with this Muxlab 4x8 Matrix Switch for streamlined control.
  • Enjoy reliable connection & extended reach up to 230' via HDBaseT for your video setup.
  • This HDMI matrix supports high resolution, ensuring crystal-clear visuals for all displays.
  • Wide compatibility: Control via Ethernet, USB, or RS-232 for seamless system integration.
  • Simplify setup with PoE support, delivering power and video over a single Cat5e/6 cable.
  • Create a custom A/V experience, routing any of 4 HDMI inputs to any of 8 outputs easily.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Matrix Switch Specifications

  • Environment

    HDMI 1.4a, 3D support, HDBaseT

  • Switching Time

    3 seconds (maximum)

  • Input

    4 x HDMI
    8 x 3.5 mm stereo jacks for IR sensors

  • Output

    8 x RJ45 HDBaseT
    4 x 3.5 mm mono for IR emitters

  • Connectivity

    Ethernet LAN (RJ45), USB (Type B), and RS-232 (DB-9)

  • Transmission Distance Supported

    Via UTP/STP Cat 5e/6: 230' (70 m)

  • Required Cabling

    HDMI and Cat5e/6 UTP/STP cables (or better) required for HDBaseT port

  • Power Supply

    110 to 240 VAC 50/60 Hz, 0.72 A power supply (with included US power cord)

  • Compatible Receivers

    MuxLab 500451-RX, 500454-RX, 500454-POE-RX Not included.

  • Approvals

    FCC, CE, RoHS, WEEE

  • Operating Temperature

    32 to 104deg. F (0 to 40deg. C)

  • Storage Temperature

    -4 to 185deg.F (-20 to 85deg.C)

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    19.0 x 13.6 x 3.5" / 48.26 x 34.54 x 8.89cm
    Rack-Mountable: 2 RU

  • Weight

    7lbs / 3.18kg

About Muxlab Matrix Switch

If you're seeking a sophisticated and high-tech solution for distributing high-definition video and audio signals, look no further than the MuXLab HDMI 4x8 & 8x8 Matrix Switches, HDBT, PoE. This advanced matrix switcher is designed to seamlessly switch between 4 or 8 HDMI sources, distributing them to up to 8 remote displays.

This efficient system utilizes either HDMI or unshielded twisted pair (UTP) cables, providing cost-effective connectivity. It's capable of extending 1080p Deep Color up to 230 feet (70 meters) via Cat 5e/6 UTP/STP cables, making it ideal for large-scale installations.

The Matrix Switch is designed to work in harmony with MuXLab's HDMI Receiver models (500451-RX, 500454-RX or 500454-POE-RX), ensuring seamless integration for your AV setup. Please note that the 500451-RX model does not support RS-232 and PoE functionality.

With HDMI input support for resolutions up to 1080p and HDBaseT supported output, this reliable matrix switcher guarantees high-quality signal transmission. The configurable EDID settings, web interface, and RS232 and USB CDC control provide a user-friendly experience, while the firmware is field upgradable for future-proofing your investment.

The Matrix Switch also features a touch pad on the front panel for manual control and offers device control over HTTP protocol. As a 2U rackmount unit, it's designed to fit seamlessly into your existing setup.

Compliant with HDCP 1.4, this matrix switcher is suitable for a wide range of applications, including commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, multi-room systems, classroom training, retail systems, collaborative PC systems, and medical information systems.

In summary, the MuXLab HDMI 4x8 & 8x8 Matrix Switches, HDBT, PoE is a versatile and efficient solution for your high-definition video and audio distribution needs.

Muxlab Matrix Switch Features

  • Advanced HDMI 4x8 & 8x8 Matrix Switch for seamless video/audio distribution
  • Supports 1080p Deep Color with UTP/STP cable extension up to 230 feet
  • Compatible with MuXLab's HDMI Receivers for streamlined integration
  • Configurable EDID settings and web interface for customized control
  • Front panel touchpad, RS232, and USB CDC for versatile operation
  • HDCP 1.4 compliant and suitable for diverse AV system applications

Key Features

  • Effortlessly switch HDMI sources with this Muxlab 4x8 Matrix Switch for streamlined control.
  • Enjoy reliable connection & extended reach up to 230' via HDBaseT for your video setup.
  • This HDMI matrix supports high resolution, ensuring crystal-clear visuals for all displays.
  • Wide compatibility: Control via Ethernet, USB, or RS-232 for seamless system integration.
  • Simplify setup with PoE support, delivering power and video over a single Cat5e/6 cable.
  • Create a custom A/V experience, routing any of 4 HDMI inputs to any of 8 outputs easily.

What's in the box:

  • Muxlab HDMI 4x8 Matrix Switch
  • IR Sensor
  • 4x IR Emitters
  • Remote
  • USB Type A to Type B Cable
  • RS232 Cable
  • 110-240V / 24VDC 5A Power Supply with US Adapter
  • Muxlab 2 Year Warranty
