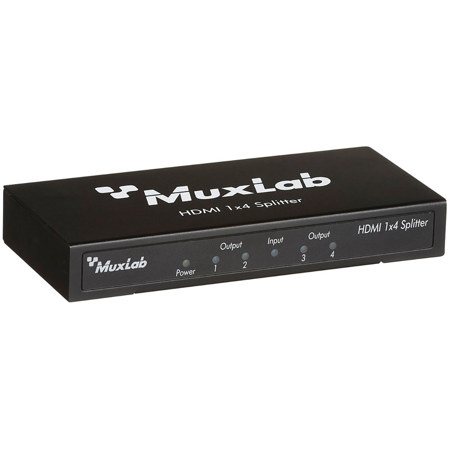

Muxlab HDMI 4K 1x4 Splitter
See all Muxlab items

Muxlab HDMI 4K 1x4 Splitter

SKU: ML500421
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Muxlab 500424US: Picture 1 regular
Muxlab 1x4 4K UHD HDMI HDBaseT Splitter, US
$1,028.00
Muxlab 500426: Picture 1 regular
Muxlab 1x4 4K UHD HDMI Splitter
$207.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Splitter Specifications

  • Environment

    HDMI 1.4 (3D)

  • Devices

    DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops

  • Transmission

    Transparent to the user

  • Frequency

    25 to 340 MHz

  • Signals

    HDMI Protocol 1.4

  • Connectors

    1x HDMI Type A Input
    4x HDMI Type A Output

  • LEDs

    Power: Green
    Input & Output Link: Blue

  • Resolution

    480i to 1080p at 50/60 fps
    1080p at 24/50/60 fps
    VGA to UXGA

  • Color

    8, 10, and 12-bit

  • Audio

    LPCM 7.1 Ch, Dolby TrueHD, DTS-HD Master Audio

  • HDCP

    Revision 1.3

  • Cable

    HDMI Cable

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 60 deg. C / -4 to 140 deg. F
    Humidity: Up to 90% non-condensing

  • Enclosure

    Metal Enclosure

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    6.06 x 2.76 x 1" / 153.92 x 70.10 x 25.40mm

  • Weight

    1.4lbs / 0.64kg

  • UPC Code

    627699004210

About Muxlab Splitter

The HDMI 14 Splitter allows one HDMI source to be distributed to up to four HDMI displays. The splitter supports up to 1080p, 12-bit Deep color and HD audio. The splitter is HDCP 1.3 compliant and features LED diagnostics. Additionally, all HDMI connectors are on the rear panel for neater cabling.

• Distributes one HDMI source to four displays
• Supports up to 1080p at 60Hz, Deep Color 12-bit
• Supports 2K and 4K resolutions
• Supports Dolby TrueHD and DTS-HD Master
• Audio
• Connectors on rear panel for neater cabling
• Supports 3D
• LED diagnostics
• HDMI 1.4
• HDCP 1.3 compliant

Applications
• Commercial and residential AV systems
• Classroom training systems
• Digital signage
• Boardroom systems
• Medical video systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Muxlab HDMI 4K 1x4 Splitter
  • Power Supply
  • Muxlab 2 Year Warranty
