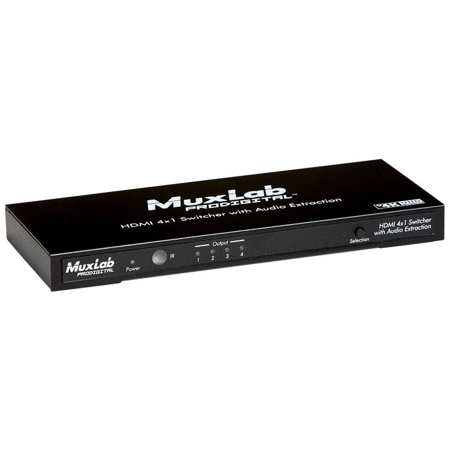

Muxlab HDMI UHD-4K 4x1 Switcher with Audio Extraction
Muxlab Switcher: Picture 1 thumbnail
Muxlab Switcher: Picture 2 thumbnail
See all Muxlab items
25% Off

Muxlab HDMI UHD-4K 4x1 Switcher with Audio Extraction

SKU: ML500430 MFR: 500430
Be the first to review this itemAsk a Question
$146.50
$195.00
Save: $48.5 (25%)
Earn VIP Reward Points

Key Features

  • Easily switch between four HDMI sources with this UHD-4K HDMI switcher.
  • Enjoy high-quality audio extraction for enhanced sound with your video setup.
  • Supports resolutions up to 3840 x 2160 for crystal-clear 4K video output.
  • Use with DVD/Blu-Ray players, PCs, and more, offering wide device compatibility.
  • Control your HDMI switching remotely for easy adjustments from anywhere in the room.
  • Experience reliable HDMI connections with low latency for seamless viewing pleasure.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$9.99

2 Year

$14.99

3 Year

$23.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Switcher Specifications

  • Environment

    HDMI 1.4 (3D)

  • Devices

    DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops

  • Transmission

    Transparent to the user

  • Frequency

    25 to 340 MHz

  • Signals

    HDMI 1.4 protocol

  • Connectors

    HDMI Type A 19-pin female

  • LEDs

    1x Power: Green
    4x Output Link: Blue

  • Manual Control

    Push button at the front of the unit

  • Remote Control

    Included

  • Resolution

    480i to 1080p at 50/60 fps
    1080p at 24/50/60 fps
    3840 X 2160 at 24/25/30 fps
    VGA to UXGA

  • Color

    8, 10 & 12 bit

  • Audio

    Uncompressed (LPCM) or compressed (Dolby, DTS)

  • HDCP

    Revision 1.3

  • Cable

    HDMI Cable

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 60 deg. C / -4 to 140 deg. F
    Humidity: Up to 90% non-condensing

  • Enclosure

    Metal enclosure

  • Power Supply

    5VDC, 2A with interchangeable blade for US, UK and Euro

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    10.63 x 4.33 x 1.18" / 270.00 x 109.98 x 29.97mm

  • Weight

    3.2lbs / 1.45kg

  • UPC Code

    627699004302

About Muxlab Switcher

The HDMI 4x1 Switcher with Audio Extraction allows Four (4) HDMI sources to be distributed to one (1) HDMI display. The switcher supports up to 4K (3840 x 2160), 8-bit color and HD audio. The extracted audio is available on an S/PDIF Toslink, Coaxial and 3.5mm Stereo Jack. The splitter is HDCP 1.3 compliant and features LED diagnostics. Additionally, all HDMI connectors are on the rear panel for neater cabling.

• Switches between four Ultra HD sources to one Ultra HD display
• Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 at 30Hz) and 1080p Full HD
• Supports 12-bit Deep Color, 3D
• Extracts audio to S/PDIF Toslink, Coaxial and 3.5mm Stereo Jack
• Extracts LPCM to Analog Audio 3.5mm Stereo Jack
• Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
• Push button selects between the four HDMI inputs
• IR Remote Control

Application
Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easily switch between four HDMI sources with this UHD-4K HDMI switcher.
  • Enjoy high-quality audio extraction for enhanced sound with your video setup.
  • Supports resolutions up to 3840 x 2160 for crystal-clear 4K video output.
  • Use with DVD/Blu-Ray players, PCs, and more, offering wide device compatibility.
  • Control your HDMI switching remotely for easy adjustments from anywhere in the room.
  • Experience reliable HDMI connections with low latency for seamless viewing pleasure.

What's in the box:

  • Muxlab HDMI UHD-4K 4x1 Switcher with Audio Extraction
  • Remote Control
  • Muxlab 2 Year Warranty
