Muxlab HDMI to HDMI UHD-4K with Audio Extraction
See all Muxlab items

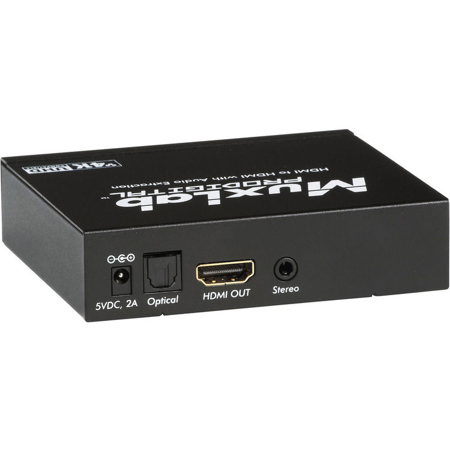

Muxlab HDMI to HDMI UHD-4K with Audio Extraction

SKU: ML500431
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Muxlab : Picture 1 regular
Muxlab HDMI UHD-4K Video Scaler
$69.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab HDMI with AudioExtraction Specifications

  • Environment

    HDMI 1.4 (3D)

  • Devices

    DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, and laptops

  • Transmission

    Transparent to the user

  • Frequency

    25 to 340 MHz

  • Signals

    HDMI 1.4 protocol

  • Connectors

    HDMI Type A 19-pin female
    Toslink
    3.5mm / 0.14" stereo phone jack

  • LEDs

    1x Power: Blue
    1x LPCM: Blue
    1x Sync: Blue

  • Power Control

    Push button on the front of the unit

  • Resolution

    480i to 1080p at 50/60 fps
    1080p at 24/50/60 fps
    3840 X 2160 at 24/25/30 fps
    VGA to UXGA

  • Color

    8-bit 10-bit, and 12-bit

  • Audio Format

    HDMI Output: LPCM, Dolby Digital, DTS, Dolby Digital Plus, Dolby True-HD, DTS-HD Master Audio
    Optical Output: LPCM, Dolby Digital, DTS
    Stereo Output: Analog Stereo

  • Sampling Rate

    HDMI Output: 192 KHz
    Optical Output: 192 KHz
    Stereo Output: 48 KHz

  • HDCP

    Revision 1.3

  • Cable

    HDMI Cable

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 60 deg. C / -4 to 140 deg. F
    Humidity: Up to 95% non-condensing

  • Power Supply

    5 VDC, 2A with interchangeable blade for US, UK, and Euro

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Enclosure

    Metal enclosure

  • Dimensions

    3.74 x 3.27 x 0.91" / 95.00 x 83.06 x 23.11mm

  • Weight

    1lbs / 0.45kg

  • UPC Code

    627699004319

About Muxlab HDMI with AudioExtraction

The HDMI to HDMI with Audio Extraction allows one (1) HDMI source to be distributed to one (1) HDMI display. The switcher supports up to 4K (3840 x 2160), 8-bit color and HD audio. The extracted audio is available on an S/PDIF Toslink and 3.5mm Stereo Jack. The product is HDCP 1.3 compliant and features LED diagnostics.

• Allows one HDMI source to be distributed to one HDMI display
• Supports up to 4K (3840 x 2160), 8-bit color and HD audio

Applications
Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Muxlab HDMI to HDMI UHD-4K with Audio Extraction
  • Muxlab 2 Year Warranty
