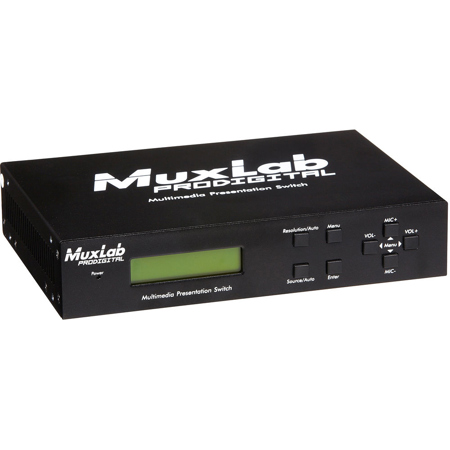

Muxlab 5x1 HDMI HDBaseT Multimedia Presentation Switcher

SKU: ML500435 MFR: 500435
Be the first to review this itemAsk a Question
$762.00
OR
$127/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly switch between five HDMI sources with this versatile HDMI switcher.
  • Enjoy high resolution video up to 1080p with HDBaseT technology for clear visuals.
  • Connect various devices: DVDs, PCs, and more, for ultimate compatibility.
  • Extend HDMI signals up to 230 ft using Cat 5e/6 cable, perfect for large venues.
  • Simplify presentations with easy switching and reliable, low latency connections.
  • Control your presentation remotely with included IR remote for added convenience.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500435 Specifications

  • Environment

    HDMI 1.3

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.

  • Transmission

    Transparent to the user

  • Video Bandwidth

    HDMI: 4.96 Gbps
    Composite Video: 150 MHz
    Component Video (YPbPr): 170 MHz
    VGA: 375 MHz

  • Maximum Pixel Clock

    165 MHz

  • Video Impedance

    75 Ohm

  • Video Resolution

    1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768

  • Audio Bandwidth

    20Hz to 20KHz

  • Audio Impedance

    Input: >10kOhm
    Output: 70Ohm

  • Stereo Channel Separation

    >80dB @1KHz

  • Signals

    HDMI 1.3a protocol and HDCP

  • Connectors

    Four (4) HDMI receptacles; Three (3) Inputs & One (1) Output.
    Two (2) VGA HD-15 receptacles (Inputs).
    One (1) RJ45Sfor HDBT (output).
    Six (6) 3-pin terminal block (3.81mm) for Audio; Five (5) Inputs& one (1) Output.
    One (1) 3-pin terminal block (3.81mm) for the microphone.

  • Connectors (Contd.)

    Five (5) IR Emitter 3.5mm Mono jacks.
    One (1) IR Sensor 3.5mm Stereo jack.
    One (1) 3-pin terminal block (3.81mm) for RS232.
    One (1) 2.1mm barrel jack for Power.
    One (1) USB Type A.

  • Maximum Distance

    Cat 5e/6:230' (70m) up to 1080p
    Based on a maximum length of 6.6' (2m) of HDMI cable per end.

  • Cable

    One (1) Cat 5e/6 or better twisted pair cable required

  • Compatible Receiver

    500451-RX (No Serial Port, No PoE)
    500451-PoE-RX (No Serial Port, with PoE)
    500454-RX (With Serial Port, No PoE)
    500454-POE-RX (With Serial Port and PoE)

  • Power Supply

    One (1) 110-240V/12VDC power supply with interchangeable blades (locking PSU connector)

  • Power Consumption

    8 Watts for the 5x1 HDMI / HDBT Presentation switch alone.
    16 Watts when the 5x1 HDMI / HDBT Presentation provides PoE power to the HDMI Extender

  • Power Consumption

    8 Watts for the 5x1 HDMI / HDBT Presentation switch alone.
    16 Watts when the 5x1 HDMI / HDBT Presentation provides PoE power to the HDMI Extender

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    8.66 x 1.73 x 5.83" (220 x 44 x 148mm)

  • Weight

    3.28 lbs (1.49kg)

About Muxlab 500435

The 5x1 HDMI / HDBT Presentation switch is a compact scaler switcher with5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA with audio switched following the video; 1 MIC audio input). The VGA input supports VGA, Component Video (YPbPr) and Composite Video.

The 5x1 HDMI / HDBT Presentation switch scales & switches any video signal to HDMI output and HDBaseT output for a transmission over up to 70 m of Cat5e/6 with PoC support.

With 1 IR Sensor, 5 IR Emitters and 1 RS232 port, bidirectional IR & RS232 signals can be transmitted simultaneously between the 5x1 HDMI / HDBT Presentation switch and the HDMI Extender PoC/PoE Receiver.

Applications:
Computer realm, monitoring, conference room and conference centers, corporate boardrooms, hotels and hospitality rooms, big screen displaying, television education, command & control centers and smart homes.

Muxlab 500435 Features

  • Supports video source auto-switching function
  • Bi-directional IR & RS232 control
  • Supports HDMI, VGA, Composite Video, and Component Video (YPbPr)
  • Output resolutions selectable (1920x1200, 1920x1080, 1600x1200, 1360x768, 1280x800, 1280x720, 1024x768)
  • Supports CEC, with commands to enable/disable this function
  • Compliant with HDCP
  • Supports online software upgrading
  • MIC port supports balance/unbalance signal, suppress the external noise effectively
  • 48V phantom power to support condenser microphone
  • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
  • Controllable via button, IR & RS232
  • Powerful OSD function

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly switch between five HDMI sources with this versatile HDMI switcher.
  • Enjoy high resolution video up to 1080p with HDBaseT technology for clear visuals.
  • Connect various devices: DVDs, PCs, and more, for ultimate compatibility.
  • Extend HDMI signals up to 230 ft using Cat 5e/6 cable, perfect for large venues.
  • Simplify presentations with easy switching and reliable, low latency connections.
  • Control your presentation remotely with included IR remote for added convenience.

What's in the box:

  • Muxlab 5x1 HDMI HDBaseT Multimedia Presentation Switcher
  • IR Remote
  • IR Sensor (with Carrier Wave)
  • IR Emitter
  • 2x VGA to Component Video or Composite Cables
  • 2x RS-232 Cables
  • 2x Mounting Wall Brackets
  • 4x Black Screws
  • 7x Captive Screw Connectors
  • 4x Plastic Cushions with Black Screws
  • Power Adapter with Interchangeable Blades
  • (Battery Not Included)
  • Muxlab 2 Year Limited Warranty
