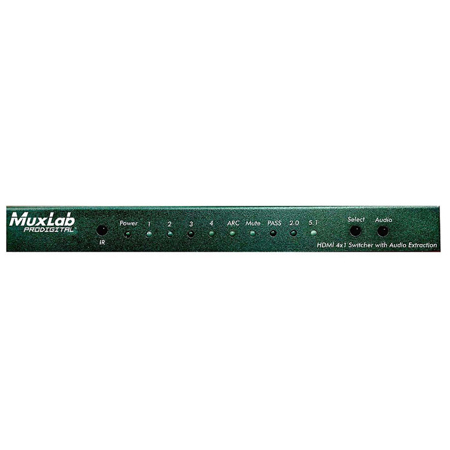

Muxlab 4x1 4K UHD HDMI Switcher with Audio Extraction

SKU: ML500437 MFR: 500437
Earn VIP Reward Points

Key Features

  • Seamlessly switch between four HDMI sources with this Muxlab 4K UHD HDMI switcher.
  • Enjoy high-resolution video up to 4K @ 60fps, perfect for crystal-clear presentations.
  • Extract audio via optical TosLink or analog 2CH, enhancing your sound system setup.
  • Experience low latency switching for smooth transitions during live streaming events.
  • Wide compatibility with DVD, Blu-ray, PC, and more, integrating into your existing setup.
  • Reliable HDMI signal distribution ensures consistent performance for all your devices.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500437 Specifications

  • Environment

    HDMI 2.0

  • Devices

    DVD/Blu-Ray, Plasma, Projectors, Monitors, TV, PC, Laptops

  • Transmission

    Transparent to The User

  • Frequency

    25 to 594 MHz

  • Video Signal

    HDMI 2.0 Protocol and HDCP 2.2

  • Connectors

    HDMI Type A 19-Pin Female

  • LEDs

    One (1) LED for Power
    Four (4) LEDs for HDMI Select
    Five (5) LEDs for Audio Select

  • Manual Control

    Push Button at The Front of The Unit for Video Input and Audio Mode Select

  • Remote Control

    Included

  • Resolution

    480i to 1080p @ 50/60 fps
    1080p @ 24/50/60 fps
    3840 X 2160 @ 24/25/30/60 fps

  • Color

    8, 10 & 12 bit

  • Audio Extraction

    Uncompressed (LPCM) or compressed (Dolby, DTS)

  • Cable

    HDMI Video Cable
    Optical TosLink and Analog 2CH Audio Cable

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
    Humidity: Up to 90% non-condensing

  • Enclosure

    Metal Enclosure

  • Power Supply

    5VDC, 2A with Interchangeable Blade for US, UK and Euro

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    10.63 x 4.33 x 1.18" (270 x 110 x 30mm)

  • Weight

    3.2 lbs (1.45kg)

  • UPC Code

    627699004371

About Muxlab 500437

The HDMI 4x1 Switcher with Audio Extraction, 4K/60 allows one of four HDMI sources to be switched to one HDMI display. The switcher supports resolutions up to 4K (3840 x 2160) @ 60Hz, 8-bit color and HD audio. Extracted digital audio is available on an S/PDIF Toslink, and analog 2CH audio on two (2) RCA jacks. Audio Return Channel (ARC) is supported, allowing audio to be returned to the source side to be connected to audio equipment.

Three audio modes are supported including pass-through, 2CH and 5.1CH audio. The switching and audio mode selections may be controlled locally via two (2) push buttons and remotely via IR. The device is HDCP 2.2 compliant and features LED diagnostics. Additionally, all HDMI and audio connectors are on the rear panel for neater cabling.

Applications:
Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.

Muxlab 500437 Features

  • Switches Between Four HDMI Sources to One HDMI Display
  • Supports resolutions up to HDMI 2.0 4K/60 (3840 x 2160 @60Hz)
  • Supports 12-bit Deep Color, 3D
  • Extract LPCM 2.0, Dolby 5.1 and DTS 5.1 audio to digital S/PDIF Toslink and LPCM 2.0 to analog 2CH RCA Jacks
  • Supports pass-through of LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio and DTS:X
  • Push button selects between four HDMI inputs, and three audio modes (Pass-through, 2.0 and 5.1 audio)
  • Support Audio Return Channel (ARC)
  • IR Remote Control

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly switch between four HDMI sources with this Muxlab 4K UHD HDMI switcher.
  • Enjoy high-resolution video up to 4K @ 60fps, perfect for crystal-clear presentations.
  • Extract audio via optical TosLink or analog 2CH, enhancing your sound system setup.
  • Experience low latency switching for smooth transitions during live streaming events.
  • Wide compatibility with DVD, Blu-ray, PC, and more, integrating into your existing setup.
  • Reliable HDMI signal distribution ensures consistent performance for all your devices.

What's in the box:

  • Muxlab 4x1 4K UHD HDMI Switcher
  • 5VDC Power Adapter
  • IR Remote Control
  • MuxLab 2 Year Limited Warranty
