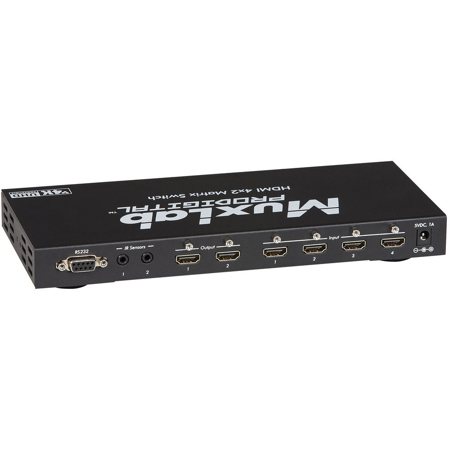

Muxlab UHD-4K 4x2 HDMI Matrix Switch
See all Muxlab items

Muxlab UHD-4K 4x2 HDMI Matrix Switch

SKU: ML500442

This item is no longer available.

Recommended Alternatives

Muxlab VGA Switcher: Picture 1 regular
Muxlab VGA 4x1 Switcher, 110V
$600.00$450.00
Muxlab VGA Switcher: Picture 1 regular
Muxlab VGA 4x1 Switcher, 220-240V
$600.00$450.00
Muxlab 500412US: Picture 1 regular
Muxlab 4K UHD HDMI 4x4 HDBaseT Matrix Switcher Kit with 3x Receivers
$2,077.00$1,422.00
Muxlab Matrix Switch: Picture 1 regular
Muxlab HDMI 4x4 Matrix Switch, HDBT, POE, Europe
$2,000.00$1,500.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 4x2 Matrix Switch Specifications

  • Video Bandwidth

    297 MHz

  • Support Video Resolution

    480i,576i,480p,576p,720p,1080i,1080p at 24/30/50/60Hz
    4K at 30Hz
    1080p 3D at 60Hz

  • Applications

    Commercial and residential AV systems
    Classroom projector systems
    Digital signage
    Boardroom Systems
    Collaborative PC systems
    Medical information systems

  • Input Ports

    4x HDMI Receptacle
    1x RS-232
    3x IR Sensor 3.5mm Jack

  • Output Ports

    2x HDMI Receptacle
    4x IR Emitter 3.5mm Jack

  • ESD Protection

    Human-body Model: +/- 8kV (Air-gap discharge), +/- 4kV (Contact discharge)

  • Power Supply

    110-240VAC to 5VDC/1A power supply with interchangeable blades

  • Chassis Material

    Metal

  • Power Consumption

    5W Max

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    20 to 90 % RH (non-condensing)

  • Dimensions

    10.24 x 4.45 x 1.02" / 26.01 x 11.30 x 2.59cm

  • Weight

    2.72lbs / 1.23kg

About Muxlab 4x2 Matrix Switch

The HDMI 4x2 Matrix, UHD-4K connects 4 HDMI sources to 2 displays. This matrix provide eight HDMI outputs and each HDMI output is supporting 1080p Full HD up to 4K plus all 3D formats and supporting independent EDID control. It works with Blu-Ray players, Set-Top boxes, Home Theater PCs and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel.

Muxlab 4x2 Matrix Switch Features

  • HDMI V1.4 supports: 4K x 2K at 30Hz, 1080P at 120Hz and 1080P 3D at 60Hz
  • Supports color depth of 48, 36, 30 and 24 bit
  • Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
  • Allows any source to be displayed on multiple displays at the same time
  • Allows any HDMI display to view any HDMI source at any time
  • Supports IR matrix
  • Supports pushbutton, IR and RS232 control
  • HDMI connectors with Locking nuts

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • HDMI V1.4 supports
  • Supports IR matrix

What's in the box:

  • Muxlab UHD-4K 4x2 HDMI Matrix Switch
  • 5V DC Power Supply
  • IR Remote Control
  • RS-232 Cable
  • 3x IR Sensor
  • 4x IR Emitter
  • Wall Mount Bracket
  • Muxlab 2 Year Warranty
