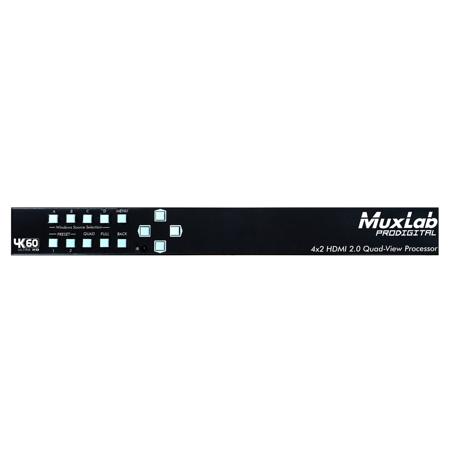

Muxlab 4x2 4K UHD HDMI 2.0 Quad-View Video Processor/Switcher

SKU: ML500446 MFR: 500446
Earn VIP Reward Points

Key Features

  • Seamlessly switch between four HDMI sources with this 4K UHD video switcher.
  • Enjoy low latency and high-resolution video output for crystal-clear visuals.
  • Easily manage your video via IR, RS232, or Ethernet for ultimate control.
  • Extract 2CH analog audio from digital PCM sources for enhanced sound options.
  • Reliable connection ensures smooth transitions between media players and cameras.
  • Affordable price for a high-quality Muxlab video processor with quad-view.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500446 Specifications

  • Environment

    HDMI 2.0 (4K/60 4:4:4 8 bit)

  • HDMI Devices

    DVD/Blu-Ray/Media Players, Cameras, PCs/Laptops, projectors/monitors/TVs

  • Transmission

    Transparent to the user

  • Frequency

    Up to 594 MHz

  • Video Signal

    HDMI2.0 protocol and HDCP 1.4 & 2.2

  • Connectors

    Four (6) HDMI connectors for video (four inputs and two outputs)
    Two (2) RCA jacks for audio extraction
    One RJ45S connector for Ethernet Management
    One (1) DB9 connector for RS232 Management
    One (1) 3.5mm jack for IR Management
    One (1) Micro USB connector for firmware updates
    One (1) 2.1mm Jack for power supply

  • Management

    Locally via front panel push buttons, and remotely via IR, RS232 and Ethernet

  • IR Handheld Remote Control

    Included for IR remote unit management (28 keys)

  • Audio Extraction

    From 2CH Digital PCM, to 2CH Analog Audio

  • Power Supply

    12VDC, 5A

  • Power Consumption

    22W (max)

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
    Humidity: Up to 90% non-condensing

  • Enclosure

    Metal enclosure

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    15.35 x 9.29 x 1.73" (390 x 236 x 44mm)

About Muxlab 500446

The 4x2 HDMI 2.0 Quad-View Processor allows up to four (4) HDMI 4K/60 sources to be simultaneously presented on one or two displays at 4K/60 as a multi-view arrangement. The user may select from one of five (5) default multi-view layout presets, or from eight (8) custom layout presets (resized and position as required with PIP support) in order to tailor their multi-view setup.

The unit supports transitions including seamless, fade-in & fade-out, wipe, and dissolve when switching in full screen mode. Pass through of all audio formats is supported, including 2CH audio extraction via two RCA jacks. The user may provide a background and logo to be displayed.

The unit may be managed locally via front panel push buttons or remotely via IR (IR Remote is included), RS232 and over an Ethernet network, and comes with rackmount brackets for a 19" rack, and a 12VDC @ 5A Power Supply.

Applications:
Digital Signage, Security & Surveillance systems, education, conference rooms, presentation halls, and test lab environments.

Muxlab 500446 Features

  • Supports 4 HDMI 2.0 inputs and 2 HDMI 2.0 outputs
  • Supports resolutions up to 4K/60 (4:4:4)
  • HDCP 2.2 compliant
  • Send multi-view video from 1 to 4 inputs shown on both output ports simultaneously
  • PIP is supported as well as 5 preset multi-view layouts, and up to 8 custom layouts may be created, saved and recalled
  • Supports various transitions between views
  • Supports audio extraction of 2CH PCM to 2CH analog audio
  • Supports pass-through of LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio and DTS:X
  • May be managed by local push buttons, and remotely via IR, RS232, and Ethernet
  • Includes IR remote

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly switch between four HDMI sources with this 4K UHD video switcher.
  • Enjoy low latency and high-resolution video output for crystal-clear visuals.
  • Easily manage your video via IR, RS232, or Ethernet for ultimate control.
  • Extract 2CH analog audio from digital PCM sources for enhanced sound options.
  • Reliable connection ensures smooth transitions between media players and cameras.
  • Affordable price for a high-quality Muxlab video processor with quad-view.

What's in the box:

  • Muxlab 4x2 4K UHD HDMI 2.0 Quad-View Video Processor/Switcher
  • 12VDC Power Supply
  • IR Remote Control
  • Rackmounting Bracket
  • Muxlab 2 Year Limited Warranty
