Muxlab Extender Kit Plus Specifications

  • Environment

    HDMI 1.3a, HDBaseT (Supports the 3D feature of HDMI 1.4)

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Bandwidth

    340MHz

  • Signals

    HDMI 1.3a, HDBaseT

  • Connectors

    1x HDMI receptacle
    1x RJ45S for Cat5e/6 unshielded or shielded twisted pair
    3.5mm / 0.14" jacks for IR emitter and IR Sensor

  • Maximum Distance

    480i/p, 720p / 1080i, 1080p, 1080p Deep Color, 4K (3840 x 2160): Cat 5e/6: 330" / 100.59m
    Based on a maximum length of 6.6" / 2.01m of HDMI cable per end

  • RJ45 Pin Configuration

    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    1x Cat5e/6 or better twisted pair cable required

  • Power Consumption

    Transmitter: 1.8W
    Receiver: 3.6W

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Cast aluminum

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.5 x 3 x 1.25" / 114.30 x 76.20 x 31.75mm

  • Weight

    2.0lbs / 0.91kg

  • Power Supply

    2x 110-240V/12V DC power supply with interchangeable blades included

  • UPC Code

    627699004500

About Muxlab Extender Kit Plus

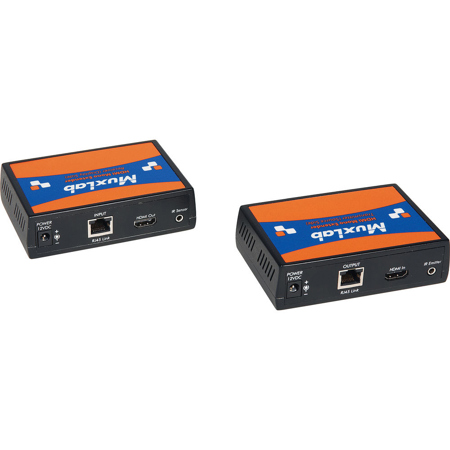

The HDMI Extender Kit Plus allows HDMI equipment to be connected up to 330 ft (100m) at all resolutions up to 4K via one (1) Cat 5e/6 unshielded twisted pair cables in a point-to-point configuration. The kit comes with one (1) Transmitter and one (1) Receiver as well as an IR Emitter (500998) and IR Sensor (500999) for remote control applications.

• HDMI 1.3a
• Supports 3D
• Up to 330 ft (100m) at all resolutions up to 4K via single Cat5e/6
• Supports IR remote source control
• Includes IR Emitter (500998) and IR Sensor (500999)

Applications
Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • IR Emitter
  • IR Sensor
  • 2x 110-240V/12V DC Power Supply with Interchangeable Blades
  • Muxlab 2 Year Warranty
