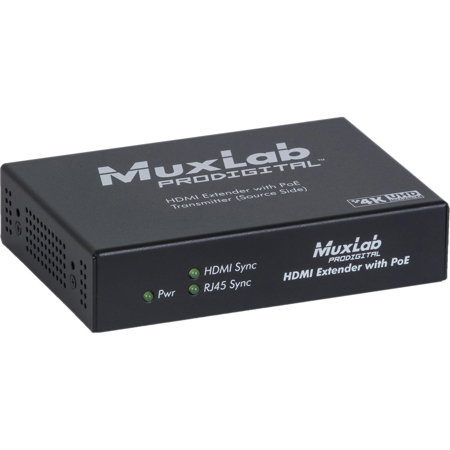

Muxlab 4K UHD HDMI HDBaseT Lite Transmitter with PoE
See all Muxlab items
32% Off

Muxlab 4K UHD HDMI HDBaseT Lite Transmitter with PoE

SKU: ML500451PETX MFR: 500451-POE-TX
Be the first to review this itemAsk a Question
$116.00
$170.00
Save: $54 (32%)
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 230ft with this 4K UHD HDBaseT Lite Transmitter.
  • Enjoy seamless connectivity with DVDs, Blu-ray players, PCs, and more via HDMI.
  • Supports 4K/30 (4:4:4) video up to 131ft, ensuring high-quality performance.
  • This HDMI transmitter is transparent to the user, offering hassle-free setup.
  • Utilize PoE (Power over Ethernet) for simplified installation and power management.
  • Ensure regulatory compliance with FCC, CE, and RoHS standards for peace of mind.
See More Product Details
Special Order?Estimated to Ship: 12/05/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$9.99
2-Year Adorama Protect$14.99
3-Year Adorama Protect$23.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum distance the HDMI signal can be extended with this kit?

The HDMI signal can be extended up to 131 feet (40 meters) at 4K/30Hz or 4K/60Hz resolutions, and up to 230 feet (70 meters) at 1080p resolution.

What type of cable is required to use with this HDMI extender kit?

This HDMI extender kit requires a single Cat 5e/6 unshielded twisted pair cable for operation.

What is the power source for the transmitter in this kit?

The transmitter in this HDMI extender kit is powered by PoE (Power over Ethernet) technology, which uses the Ethernet cable to transmit both power and data.

What types of devices can I connect with this HDMI extender kit?

This HDMI extender kit is compatible with a variety of devices, including computers, laptops, media players, and gaming consoles.

Do I need to install any software or configuration to use this HDMI extender kit?

No, this HDMI extender kit is designed to be easy to use with a plug-and-play design, eliminating the need for complex software or configuration.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 500451PETX Specifications

  • Environment

    HDMI 1.4a (3D)

  • Devices

    DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Bandwidth

    340MHz

  • Signals

    HDMI 1.4a protocol

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair
    Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave)

  • Max. Distance

    4K/30 (4:4:4): Cat 5e/6: 131' (40m)
    4K/60 (4:2:0): Cat 5e/6: 131' (40m)
    1080p: Cat 5e/6: 230' (70m)
    1080p Deep Color: Cat 5e/6: 230' (70m)

  • Cable

    One (1) Category 5e or better twisted pair cables required

  • Power Supply

    One (1) 110-240V/48VDC power supply with interchangeable blades

  • Power Consumption

    6W

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    4.40 x 3 x 1" (11.2 x 7.6 x 2.5cm)

  • UPC Code

    627699944516

About Muxlab 500451PETX

The HDMI Transmitter allows HDMI equipment to be connected up to 131ft (40m) at 4K/30 (4:4:4) or 4K/60 (4:2:0) resolutions, or 230 ft (70 m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. For ease of cabling the transmitter features PoE (PD), including PoC.

Applications:
Digital signage, commercial AV systems, classroom projector systems, boardroom systems, collaborative PC systems, medical information systems.

Muxlab 500451PETX Features

  • Supports 1080p deep color and full 3D to distances of up to 230' (70m) over single Cat5e/6
  • Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131' (40m) over single Cat5e/6
  • Supports Bi-directional IR pass through
  • Supports all digital audio modes
  • PoE (PD) & PoC on both the transmitter and receiver

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HDMI signal up to 230ft with this 4K UHD HDBaseT Lite Transmitter.
  • Enjoy seamless connectivity with DVDs, Blu-ray players, PCs, and more via HDMI.
  • Supports 4K/30 (4:4:4) video up to 131ft, ensuring high-quality performance.
  • This HDMI transmitter is transparent to the user, offering hassle-free setup.
  • Utilize PoE (Power over Ethernet) for simplified installation and power management.
  • Ensure regulatory compliance with FCC, CE, and RoHS standards for peace of mind.

What's in the box:

  • Muxlab 4K UHD HDMI HDBaseT Lite Transmitter
  • Muxlab 2 Year Limited Warranty
