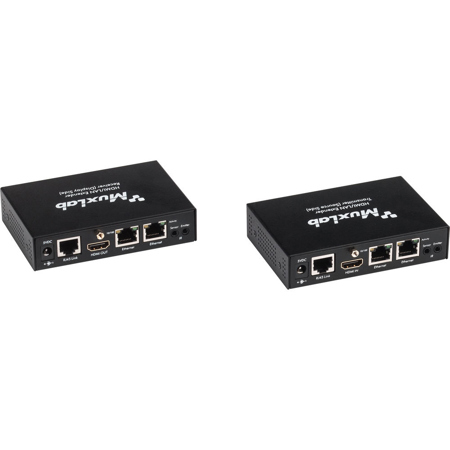

Muxlab HDMI/LAN UHD-4K Extender Kit, HDBT

SKU: ML500453 MFR: 500453
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal up to 330ft with this reliable Muxlab HDMI extender kit.
  • Enjoy crystal-clear UHD 4K resolution with HDBaseT technology for superior performance.
  • This HDMI/LAN extender supports all digital audio modes, including Dolby TrueHD and DTS-HD.
  • Connect your DVD, PC, or projector easily with the versatile HDMI/LAN extender kit.
  • Control your devices remotely with included IR emitter and sensor for added convenience.
  • Ensure seamless transmission with Cat5e/6 cables, maintaining signal integrity up to 330ft.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Extender Kit Specifications

  • Environment

    HDMI 1.3a, HDBaseT (5 Play technology) (Supports the 3D feature of HDMI 1.4)
    Supports all digital audio modes

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Bandwidth

    340 MHz

  • Signals

    HDMI 1.3a, HDBaseT, Digital audio: 7.1CH, Dolby TrueHD, DTS-HD

  • Connectors

    1x HDMI receptacle with locking screw
    1x RJ45S for Link
    2x RJ45S for LAN
    3.5mm / 0.14" jacks for IR emitter and IR Sensor

  • Maximum Distance

    480i/p: Cat 5e/6: 330' / 100.59m
    720p, 1080i: Cat 5e/6: 330' / 100.59m
    1080p: Cat 5e/6: 330' / 100.59m
    1080p Deep Color: Cat 5e/6: 330' / 100.59m
    4K (3840x 2160): Cat 5e/6: 330' / 100.59m
    (Based on a maximum length of 6.6' / 2.01m of HDMI cable per end.)

  • RJ45 Pin Configuration

    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    ( Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight through wiring.)

  • Cable

    1x Cat5e/6 or better twisted pair cable required

  • Power Supply

    2x 110-240V/5VDC power supply with interchangeable blades included

  • Power Consumption

    Transmitter: 2.75W
    Receiver: 5.15W

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.4 x 3 x 1" / 111.76 x 76.20 x 25.40mm

About Muxlab Extender Kit

If you're seeking a reliable solution for extending your HDMI signal without compromising on quality, the Muxlab HDMI/LAN UHD-4K Extender Kit, HDBT (500453) is your ideal choice. This high-quality kit is designed to connect HDMI equipment over distances up to 330 feet (100 meters) at a stunning 4K resolution, all through a single Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration.

This compact and easy-to-use kit is more than just an extender. It supports two Ethernet 10/100 connections, making it a versatile addition to your audio and video setup. The kit includes one transmitter and one receiver, along with an IR Emitter (500998) and IR Sensor (500999) for seamless remote control applications.

The Muxlab HDMI/LAN UHD-4K Extender Kit supports the 3D feature of HDMI 1.4, ensuring a rich and immersive viewing experience. It also supports all digital audio modes, providing crystal clear sound to match your high-definition visuals. With two LAN ports, this kit supports Ethernet connections, adding to its functionality.

The kit also includes a locking screw for the HDMI connector, ensuring a secure and stable connection. It supports 4K (UHD) resolutions at 24fps and 30fps (4:4:4), delivering a crisp and vibrant display that's perfect for both commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems.

In essence, the Muxlab HDMI/LAN UHD-4K Extender Kit, HDBT is a durable, high-quality solution for extending your HDMI signal, offering superior performance and versatility.

Muxlab Extender Kit Features

  • High-quality HDMI/LAN UHD-4K Extender Kit for extending HDMI signal up to 330 feet
  • Supports 4K resolution and 3D feature of HDMI 1.4 for immersive viewing experience
  • Includes IR Emitter and IR Sensor for seamless remote control applications
  • Supports all digital audio modes for crystal clear sound quality
  • Features two Ethernet 10/100 connections for added versatility
  • Ideal for commercial and residential AV systems, classroom projector systems, digital signage, and more

Key Features

  • Extend your HDMI signal up to 330ft with this reliable Muxlab HDMI extender kit.
  • Enjoy crystal-clear UHD 4K resolution with HDBaseT technology for superior performance.
  • This HDMI/LAN extender supports all digital audio modes, including Dolby TrueHD and DTS-HD.
  • Connect your DVD, PC, or projector easily with the versatile HDMI/LAN extender kit.
  • Control your devices remotely with included IR emitter and sensor for added convenience.
  • Ensure seamless transmission with Cat5e/6 cables, maintaining signal integrity up to 330ft.

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • IR Emitter
  • IR Sensor
  • 2x 110-240V/5VDC Power Supply with Interchangeable Blades
  • Muxlab 2 Year Warranty
