Muxlab HDMI / RS232 UHD-4K Extender Kit with PoE, HDBT
See all Muxlab items

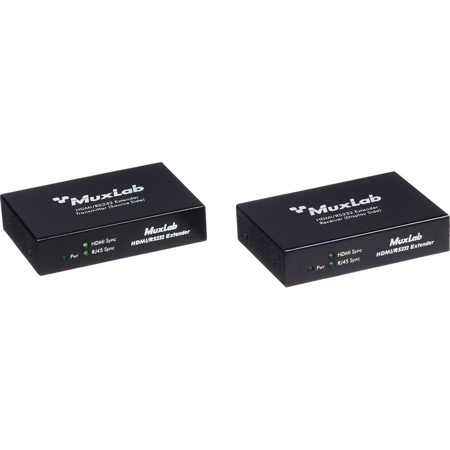

Muxlab HDMI / RS232 UHD-4K Extender Kit with PoE, HDBT

SKU: ML500454POE
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Muxlab 500451POE: Picture 1 regular
Muxlab 4K UHD HDMI HDBaseT Lite Extender Kit with PoE
$295.00
Muxlab 500451PORX: Picture 1 regular
Muxlab 4K UHD HDMI HDBaseT Lite Receiver with PoE
$148.00
Muxlab 500458-ARC: Picture 1 regular
Muxlab 4K UHD HDMI/RS232 HDBaseT Extender Kit with ARC
$462.00
Muxlab 500459: Picture 1 regular
Muxlab 4K UHD HDMI 2.0/RS232 HDBaseT Extender Kit
$435.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Extender Kit Specifications

  • Environment

    HDMI 1.3a, HDBaseT (5 Play technology) (Supports the 3D feature of HDMI 1.4)
    Supports all digital audio modes

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Bandwidth

    340 MHz

  • Signals

    HDMI 1.3a, HDBaseT, Digital audio: 7.1CH, Dolby TrueHD, DTS-HD

  • Connectors

    1x HDMI receptacle

  • Maximum Distance

    Cat 5e/6: 230' / 70.10m up to 1080P Deep Color
    115' / 35.05m for 4K; 3840 x 2160/24,25,30 Hz
    (Based on a maximum length of 6.6' / 2.01m of HDMI cable per end)

  • RJ45 Pin Configuration

    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight through wiring.)

  • Cable

    1x Cat5e/6 or better twisted pair cable required

  • Power Supply

    1x PoE power supply

  • Power Consumption

    Transmitter: 1.6W
    Receiver: 3.2W

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.4 x 3 x 1" / 111.76 x 76.20 x 25.40mm

  • Weight

    1.4lbs / 0.64kg

  • UPC Code

    627699014547

About Muxlab Extender Kit

The HDMI/RS232 Extender Kit (500454, 500454- POE) allows HDMI equipment to be connected up to 230 ft (70 m) at all resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. Furthermore, the product supports RS232 to allow control commands to be transmitted between the HDMI source and receiver. The product is available in a "PoE" configuration to allow the HDMI/RS232 Receiver to be powered by the transmitter for greater ease of cabling.

• Supports 3D of HDMI 1.4
• Up to 230 ft (70m) at all resolutions up to 1080p via single Cat5e/6
• PoE version (optional)
• Supports all digital audio modes
• Supports RS232
• Supports bi-directional IR remote source control
• Includes IR Emitter (500998) and IR Sensor 500999

Applications
Digital signage, commercial AV systems, classroom projector systems, boardroom systems, collaborative PC systems, medical information systems.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • IR Emitter
  • IR Sensor
  • PoE Power Supply
  • Muxlab 2 Year Warranty
