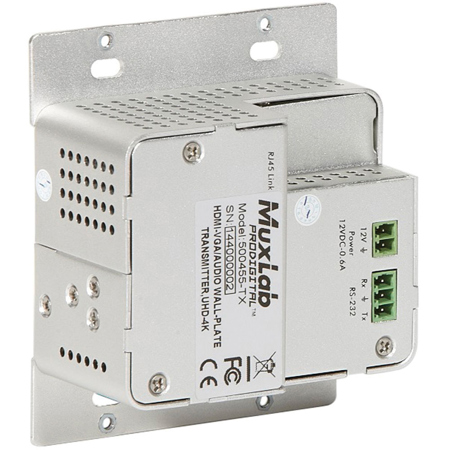

Muxlab HDMI VGA/Audio Over CAT5e/6 UHD-4K Wall-Plate Transmitter

SKU: ML500455TX MFR: 500455-TX
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal with this Wall-Plate Transmitter, supporting up to 4K UHD resolution.
  • This HDMI over CAT5e/6 transmitter is perfect for boardroom systems and collaborative PC setups.
  • Enjoy flexible connectivity with HDMI, VGA, and Audio inputs on this versatile wall plate.
  • Achieve reliable signal transmission up to 230 ft using standard CAT5e/6 cabling for your devices.
  • This durable metal enclosure offers a professional Decora two-gang chassis style for easy install.
  • Power your displays with the included 12VDC power supply, ensuring consistent performance always.
See More Product Details
Special Order?Estimated to Ship: 08/07/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$64.99

2 Year

$109.00

3 Year

$169.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Wall-Plate Transmitter Specifications

  • Environment

    HDMI 1.4

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Applications

    Commercial and residential AV systems
    Classroom projector systems,
    Digital signage
    Boardroom systems
    Collaborative PC systems
    Medical information systems

  • Video Bandwidth

    10.2 Gbps

  • Video Resolution

    VGA: 800 x600, 1024 x 768, 1280 x 800,1280 x 1024, 1440 x 900,1600 x 1200, 1920 x 1080, 1920 x 1200
    HDMI: 4K at 24, 25 & 30 Hz, 3D 1080p/1080i/720p/576p/ 576i/480p/480i

  • Audio Bandwidth

    20Hz to 20KHz

  • Audio Impedance

    >10Ohms

  • Audio SNR

    >85dB at 20Hz to 20KHz

  • Signals

    HDMI 1.3a protocol and HDCP

  • Connectors

    1x HDMI receptacle
    1x VGA HD-15 receptacle
    1x Audio 3.5mm Stereo Jack
    2x 3 Pin terminal block for RS232
    1x 2 pin terminal block for Power
    1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair

  • Maximum Distance

    CAT5e/6: 230' (70 m) up to 1080p Deep Color
    131' (40 m) for 4K; 3840 X 2160/24, 25, & 30 Hz

  • Cable

    Cat 5e/6 or better twisted pair cable required

  • Compatible Receiver

    500451-RX HDMI Mono Receiver
    500454-RX HDMI / RS-232 Receiver

  • Power Supply

    110-240V/12VDC power supply with interchangeable blades

  • Power Consumption

    10.3W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Enclosure

    Metal

  • Chassis Style

    Decora two gang

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    4.11 x 3.50 x 1.73" / 10.44 x 8.89 x 4.39cm

  • Weight

    1.35lbs / 0.61kg

  • UPC Code

    00627699904558

About Muxlab Wall-Plate Transmitter

Be at the forefront of audio-visual technology with the HDMI VGA/Audio Over CAT5e/6 UHD-4K Wall-Plate Transmitter, a sophisticated and sleek addition to any modern home or office setup. This elegant wall-plate transmitter is designed to fit seamlessly into a double-gang wall box, offering a high-tech interface for your HDMI and VGA input sources.

Crafted with style and functionality in mind, this transmitter features one HDMI IN port, one VGA IN port, and one Audio IN port, culminating in a single HDBaseT Out that allows for efficient signal transmission over CAT5e or CAT6 cables. It's the perfect solution for extending your audio and video signals with clarity and precision.

The device is engineered to handle the demands of UHD-4K video, ensuring compatibility with the latest high-resolution displays and content. With support for HDMI 1.4, including 4K resolution and 3D video, this transmitter delivers a rich, immersive viewing experience. Additionally, the VGA input comes with a full HD scaler, guaranteeing that even legacy devices can output to your display at the highest possible quality.

Users will appreciate the transmitter's smart auto-switching feature, which automatically detects and selects the most recently connected input source, as well as the option for manual switching, providing ultimate control over their multimedia content. The stylish wall-plate design ensures that the transmitter blends into any environment, maintaining the aesthetic integrity of your space while offering the latest in audio-visual technology.

Whether you're looking to enhance your home theater, streamline your office presentations, or simply enjoy a refined and clutter-free multimedia setup, the HDMI VGA/Audio Over CAT5e/6 UHD-4K Wall-Plate Transmitter is an exceptional choice. Its compatibility with a wide range of devices and easy installation process make it a versatile and user-friendly solution for audio and video transmission needs.

Muxlab Wall-Plate Transmitter Features

  • Selectable HDMI/ VGA with audio input
  • Support of VGA output resolution up to 1920x1200
  • High bandwidth: 10.2Gbps
  • Built-in scaler function supports scaling HDMI/ VGA signals to match the native resolution of the display
  • Transmission of HDMI signals up to 4K
  • Compliant with HDMI 1.4, supports 1080p and 3D
  • HDCP compliance, equipped with HDCP auto-tracking solution
  • Auto-switching capability
  • Support of multiple control methods including front panel buttons and RS232, Serial interface supports bi-directional RS232 pass-through control
  • Supports firmware upgrading via USB
  • Powered by local 12VDC power supply
  • Aluminum design for elegant and better cooling

Key Features

  • Extend your HDMI signal with this Wall-Plate Transmitter, supporting up to 4K UHD resolution.
  • This HDMI over CAT5e/6 transmitter is perfect for boardroom systems and collaborative PC setups.
  • Enjoy flexible connectivity with HDMI, VGA, and Audio inputs on this versatile wall plate.
  • Achieve reliable signal transmission up to 230 ft using standard CAT5e/6 cabling for your devices.
  • This durable metal enclosure offers a professional Decora two-gang chassis style for easy install.
  • Power your displays with the included 12VDC power supply, ensuring consistent performance always.

What's in the box:

  • Muxlab HDMI VGA/Audio Over CAT5e/6 UHD-4K Wall-Plate Transmitter
  • 4x Screws
  • 2x Pluggable Terminal Blocks (One 2-Pin Block & One 3-Pin Block)
  • Power Adapter (12VDC 2A)
  • User Manual
  • Muxlab 2 Year warranty
