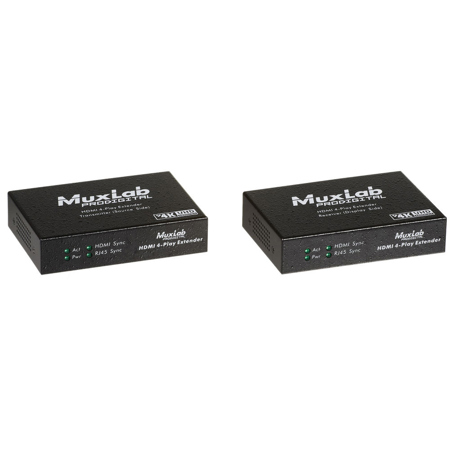

Muxlab 4K UHD HDMI HDBaseT 4-Play Extender Kit

SKU: ML500456 MFR: 500456
Earn VIP Reward Points

Key Features

  • Extend your 4K HDMI signal up to 230 feet with this HDBaseT extender kit, ensuring optimal performance.
  • Enjoy seamless connectivity with support for DVD, plasma, projectors, PCs, and other HDMI devices.
  • This HDMI extender supports 1080p Deep Color, maintaining video quality over long distances.
  • Utilize the transparent transmission feature, making setup easy without complex configurations.
  • Control your devices remotely with included IR emitter and sensor, enhancing user experience.
  • This Muxlab extender kit offers reliable durability with its metal enclosure and regulatory compliance.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500456 Specifications

  • Environment

    HDMI 1.3a (Supports the 3D feature of HDMI 1.4)

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Bandwidth

    340 MHz

  • Signals

    HDMI 1.3a protocol

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    One (1) RJ45S for LAN (10/100BaseT) connection
    One (1) three position terminal block for RS-232
    Two (2) 3.5mm jacks for IR emitter and sensor

  • Maximum Distance

    480i/p: Cat 5e/6: 330' (100m)
    720p, 1080i: Cat 5e/6: 330' (100m)
    1080p: Cat 5e/6: 330' (100m)
    1080p Deep Color: Cat 5e/6: 330' (100m)
    4K @ 24, 25, 30 Hz: Cat 5e/6: 230' (70m)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Supply

    Two (2) 110-240V/5VDC power supplies with interchangeable blades

  • Power Consumption

    Transmitter: 2.75 Watt
    Receiver: 5.15 Watt

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS Flammability: 94V0

  • Dimensions

    4.40 x 3 x 1" (11.2 x 7.6 x 2.5cm)

  • Weight

    1.4 lbs (600g)

About Muxlab 500456

The HDMI 4-Play Extender Kit allows HDMI equipment to be connected up to 330 ft (100 m) @1080p Deep Color via one (1) Cat 5e/6 unshielded twisted pair cables in a point-to- point configuration. The product also features one LAN port for interconnecting Ethernet equipment and a RS-232 port for control via the same Cat5e/6 cable. The kit comes with one (1) Transmitter and one (1) Receiver as well as an IR Emitter and IR Sensor for remote control applications.

Applications:
Commercial and residential audio systems, boardroom systems, collaborative PC systems, and medical information systems.

Muxlab 500456 Features

  • Supports 1080p deep color, 4K @ 30fps & 3D resolutions
  • Up to 330' (100m) via Cat5e cable
  • Full 4-play HDBaseT Extender
  • Supports LAN, Bidirectional IR & RS-232 up to the display
  • Supports all digital audio modes
  • Compatible with all other MuxLab HDBaseT extenders

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your 4K HDMI signal up to 230 feet with this HDBaseT extender kit, ensuring optimal performance.
  • Enjoy seamless connectivity with support for DVD, plasma, projectors, PCs, and other HDMI devices.
  • This HDMI extender supports 1080p Deep Color, maintaining video quality over long distances.
  • Utilize the transparent transmission feature, making setup easy without complex configurations.
  • Control your devices remotely with included IR emitter and sensor, enhancing user experience.
  • This Muxlab extender kit offers reliable durability with its metal enclosure and regulatory compliance.

What's in the box:

  • Transmitter
  • Receiver
  • 2x 110-240V Power Supplies with Interchangeable Blades
  • IR Emitter
  • IR Sensor
  • Muxlab 2 Year Limited Warranty
