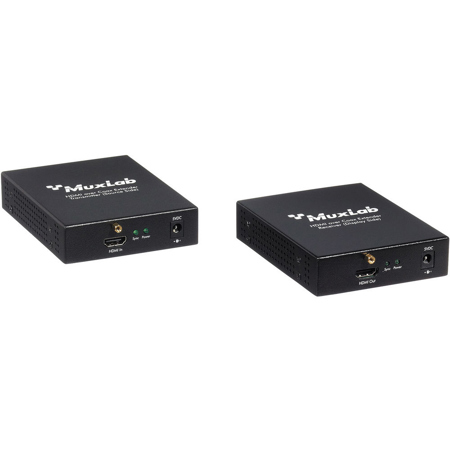

Muxlab HDMI Over Coax Extender Kit

SKU: ML500465 MFR: 500465
Earn VIP Reward Points

Key Features

  • Extend your HDMI signal reliably over coax cable with this HDMI extender kit.
  • Supports up to 1080p resolution, ensuring crystal-clear video quality over long distances.
  • Use your existing RG-59 or RG-6 coax cables to transmit HDMI signals, saving on new wiring.
  • Ideal for distributing HDMI signals in residential, commercial, and surveillance applications.
  • This HDMI over coax solution is compliant with FCC, CE, and RoHS regulatory standards.
  • Enjoy seamless, transparent HDMI signal transmission, with no user configuration needed.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500465 Specifications

  • Environment

    HDMI 1.3a, 3G-SDI, HD-SDI & SD-SDI

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Bandwidth

    225MHz

  • Signal

    HDMI 1.3a & SDI protocol

  • Supported Resolution

    480i, 576i, 720p, 1080i, 1080p/23.98/24/25/29.9/30/50/59.94/60

  • Connectors

    One (1) HDMI receptacle
    Two (2) BNC Female 75 Ohms

  • Maximum Distance

    480i: RG-59: 650' (198m) RG-6: 800' (244m)
    720p, 1080i: RG-59: 500' (152m) RG-6: 650' (198m)
    1080p: RG-59: 250' (76m) RG-6: 300' (91m)

  • Cable

    One (1) RG-59 or better cable required

  • Power Supply

    Two (2) 110-240V/5VDC power supplies with interchangeable blades

  • Power Consumption

    Transmitter: 3.30 Watt
    Receiver: 3.55 Watt

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.72 x 3.54 x 1.18" (12 x 9 x 3cm)

  • Weight

    1.3 lbs (589.6g)

  • UPC Code

    627699804650

About Muxlab 500465

The HDMI over Coax Extender Kit (500465) allows an HDMI source to be connected to an HDMI display up to 250ft (76m) at 1080p resolution via one (1) coax cable in a point-to-point configuration. Furthermore, the product may be cascaded via the HDMI-over-Coax Receiver (500465-RX) in order to support multi-display applications.

KVM Related Applications
Digital signage, industrial and commercial AV systems, classroom projector systems, boardroom systems, medical information systems, retrofit.

Muxlab 500465 Features

  • Supports HDMI over one RG59 coax cable
  • Up to 250' (76m) at 1080p resolution
  • Up to 500' (152m) at 1080i/720p resolution
  • Ideal for harsh electrical environments
  • Cascadable on the TX and RX side

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your HDMI signal reliably over coax cable with this HDMI extender kit.
  • Supports up to 1080p resolution, ensuring crystal-clear video quality over long distances.
  • Use your existing RG-59 or RG-6 coax cables to transmit HDMI signals, saving on new wiring.
  • Ideal for distributing HDMI signals in residential, commercial, and surveillance applications.
  • This HDMI over coax solution is compliant with FCC, CE, and RoHS regulatory standards.
  • Enjoy seamless, transparent HDMI signal transmission, with no user configuration needed.

What's in the box:

  • Transmitter
  • Receiver
  • 2x 110-240 VAC/5 VDC Power Supply
  • (HDMI Cable Not Included)
  • Muxlab 2 Year Limited Warranty
