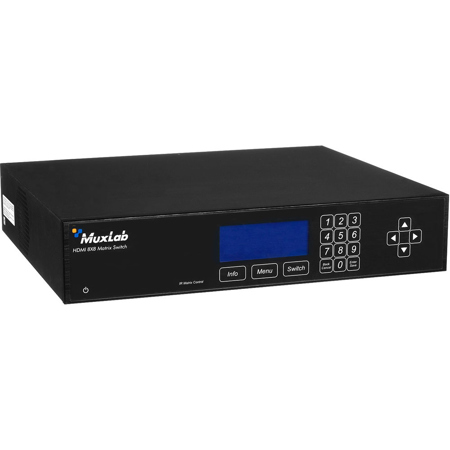

Muxlab HDMI 8x8 Matrix Switch, HDBT, PoE, United States

SKU: ML500469US MFR: 500469-POE-US
Earn VIP Reward Points

Key Features

  • Seamless HDMI matrix switching: Effortlessly route eight sources to eight displays.
  • HDBaseT technology ensures reliable video signal extension up to 230 feet!
  • Power over Ethernet (PoE) support simplifies installs, reducing cable clutter.
  • Control your video matrix via Ethernet, RS-232, or included IR remote.
  • Enjoy wide compatibility with MuxLab receivers for flexible system design.
  • High-resolution video support delivers crystal-clear images for all your content.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Matrix Switch Specifications

  • Environment

    HDMI 1.4a, 3D support, HDBaseT

  • Switching Time

    3 seconds (maximum)

  • Input

    8x HDMI
    8x 3.5 mm stereo jacks for IR sensors

  • Output

    8x RJ45 HDBaseT
    8x 3.5 mm mono for IR emitters

  • Connectivity

    Ethernet LAN (RJ45), USB (Type B), and RS-232 (DB-9)

  • Transmission Distance Supported

    Via UTP/STP Cat 5e/6: 230' (70 m)

  • Required Cabling

    HDMI and Cat5e/6 UTP/STP cables (or better) required for HDBaseT port

  • Power Supply

    110 to 240 VAC 50/60 Hz, 0.72 A power supply (with included US power cord)

  • Compatible Receivers

    MuxLab 500451-RX, 500454-RX, 500454-POE-RX

  • Approvals

    FCC, CE, RoHS, WEEE

  • Operating Temperature

    32 to 104½F (0 to 40½C)

  • Storage Temperature

    -4 to 185½F (-20 to 85½C)

  • Humidity

    Up to 95% non-condensing

  • Dimensions

    19.0 x 13.6 x 3.5" / 48.26 x 34.54 x 8.89cm
    Rack-Mountable: 2 RU

  • Weight

    7lbs / 3.18kg

About Muxlab Matrix Switch

When seeking a sophisticated solution for high-definition video and audio signal distribution, the MuXLab HDMI 8x8 Matrix Switch with HDBT and PoE technology stands out as an advanced and efficient choice for both commercial and residential AV systems. This high-tech matrix switcher is designed to manage and distribute content from up to 8 HDMI input sources to as many as 8 HDMI output displays, ensuring reliable and flexible video routing for environments such as classroom projector systems, digital signage, boardrooms, multi-room installations, and more.

The MuXLab HDMI 8x8 Matrix Switch supports resolutions up to 1080p, including 1080p Deep Color, and is compatible with HDMI 3D content, making it a versatile option for a variety of high-definition applications. With the ability to extend signals up to 230 feet (70 meters) over Cat 5e/6 UTP/STP cables, this matrix switch is particularly efficient for setups where remote displays are a necessity.

Incorporating HDBaseT technology, the switch ensures long-distance transmission without compromising signal quality, while PoE (Power over Ethernet) simplifies installation by allowing the switch to be powered through the Ethernet cable, thus reducing cable clutter and the need for additional power sources.

The unit is designed for seamless integration with MuXLab's HDMI Receivers (500451-RX, 500454-RX, or 500454-POE-RX), and features single modular RJ45 jacks for straightforward connectivity. The configurable EDID settings, web interface, and control options via RS232, USB CDC, and HTTP protocol provide a user-friendly experience with enhanced device management capabilities.

For manual control, the front panel includes a touch pad, and the firmware is field-upgradable, ensuring the switch remains up-to-date with the latest features and improvements. As a 2U rackmount unit, it is also conveniently designed for professional installations and is HDCP 1.4 compliant, adhering to high standards of content protection.

Ideal for a range of applications including collaborative PC systems, retail environments, and medical information systems, the MuXLab HDMI 8x8 Matrix Switch is a reliable and sophisticated choice for those who require a high-performance AV distribution system.

Muxlab Matrix Switch Features

  • Advanced HDMI 8x8 Matrix Switch with HDBT and PoE technologies for high-definition video and audio distribution
  • Supports up to 8 HDMI input sources and 8 HDMI output displays, ideal for commercial and residential AV systems
  • Extends 1080p Deep Color and 3D signals up to 230 feet (70 meters) over Cat 5e/6 UTP/STP cables
  • Powered via Ethernet cable with PoE technology, reducing the need for additional power sources
  • Seamless integration with MuXLab's HDMI Receivers and user-friendly device management via web interface, RS232, and USB CDC controls
  • 2U rackmount design, HDCP 1.4 compliant, and field-upgradable firmware for professional installations and enhanced functionality

Key Features

  • Seamless HDMI matrix switching: Effortlessly route eight sources to eight displays.
  • HDBaseT technology ensures reliable video signal extension up to 230 feet!
  • Power over Ethernet (PoE) support simplifies installs, reducing cable clutter.
  • Control your video matrix via Ethernet, RS-232, or included IR remote.
  • Enjoy wide compatibility with MuxLab receivers for flexible system design.
  • High-resolution video support delivers crystal-clear images for all your content.

What's in the box:

  • Muxlab HDMI 8x8 Matrix Switch
  • IR Sensor
  • 8x IR Emitters
  • Remote
  • USB Type A to Type B Cable
  • RS232 Cable
  • 110-240V / 24VDC 5A Power Supply with US Adapter
  • Muxlab 2 Year Warranty
