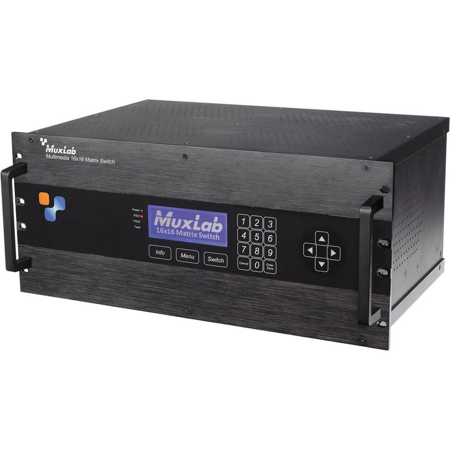

Muxlab Multimedia 16x16 Matrix Switch Chassis, United Kingdom and Europe

SKU: ML500470UKEU MFR: 500470 [-UK, -EU]
Earn VIP Reward Points

Key Features

  • Manage multiple video sources effortlessly with this 16x16 Matrix Switch Chassis.
  • Enjoy reliable video switching with a backplane bandwidth of 12.75Gbps per channel.
  • Achieve seamless integration with LCDs, Blu-Ray players, and more via HDMI.
  • Control your video distribution via front panel LCD, RS232, USB, or Webserver.
  • Ensure stable performance with dual redundant power supply for uninterrupted use.
  • Expand your connectivity with Ethernet LAN, USB, and RS232 ports for versatile setup.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Matrix Switch Specifications

  • Environment

    HDMI 1.3A, HDMI 1.4A 3D Support, DVI, 3G-SDI, VGA

  • Devices

    LCD and Plasma TVs, DVD and Blu-Ray players, monitors, projectors, PCs, laptops, home theatre systems, home theater PCs, game consoles

  • Transmission

    Transparent to the user

  • Switching configurations

    4x4, 4x8, 4x16, 8x4, 8x8, 8x16, 16x4,16x8, 16x12, 16x16

  • Backplane bandwidth

    12.75Gbps per channel

  • Management

    Front panel LCD control, RS232, USB, Webserver 3rd party drivers: Control4

  • Input Slots

    4 Slots supporting 4-port modular input card; HDMI, DVI, 3G-SDI, VGA

  • Output Slots

    4 Slots supporting 4-port modular output card; HDMI, HDBaseT

  • Connectivity

    Ethernet LAN (RJ45), USB (Type B) and RS232 (DB9)

  • Maximum Distance

    UTP/STP Cat 5e/6 Output port: 230' / 70.10m

  • Cables

    Cat 5e/6 UTP/STP cables (or better) required for HDBaseT port

  • Power

    AC 100-240 V 50/60 Hz

  • Power Supply

    Dual Redundant Power Supply
    100-240 VAC to 12 VDC at 25A (300 W)

  • LED Diagnostics

    Power (Blue)
    PSU1 and PSU2 (Green)
    Fault (Red)
    LAN (Green: Link and Yellow: Activity)

  • Temperature

    Operating: 0 to 50 deg. C / 32 to 122 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Safety

    CSA (pending)

  • Dimensions

    5U Rack Mountable: 17.7 x 11 x 7.5" / 449.58 x 279.40 x 190.50mm

  • Weight

    18lbs / 8.16kg

About Muxlab Matrix Switch

Be at the forefront of audio-visual technology with the Muxlab Multimedia 16x16 Matrix Switch System, a versatile and modular AV switching platform designed for the UK and European markets. This advanced system seamlessly converts and switches a broad spectrum of digital and analog AV inputs to HDMI, utilizing HDBaseT technology over Cat5e/6 cable for superior signal quality and reliability.

The Matrix Switch boasts an 8-slot chassis, accommodating up to four 4-port input modules and four 4-port output modules, offering a maximum switching capacity of 16x16. This flexibility ensures it can meet the demands of complex AV setups, from digital signage and retail AV signal routing to professional video editing and multimedia entertainment centers.

Management of the Matrix Switch is user-friendly, with options for control via the front panel, RS232, USB, and a web server interface. It also supports integration with third-party drivers, providing a versatile solution for diverse AV needs.

The system is equipped with dual-redundant power supplies, ensuring uninterrupted service and ease of maintenance. It works in harmony with the 500451-RX HDBaseT receiver, converting all HDBaseT transmissions back to HDMI for a streamlined AV experience.

The Matrix Switch supports a variety of input modules, including HDMI (with and without stereo audio out), HD-SDI, DVI, and VGA, and output modules such as HDMI, HDBaseT, HDMI Output Card with Audio Out, and Fiber. This wide range of compatibility makes it a versatile choice for various applications.

The Multimedia 16x16 Matrix Switch is also Control4 compatible. The Control4 driver allows seamless integration with Control4 home automation and commercial AV systems via RS232 and LAN. This feature enables AV sources to be switched to any HDMI display via a single user-friendly interface, making it an ideal choice for boardroom projector systems, classroom training, medical imaging, courtroom systems, rental and staging, video kiosks, airport video information systems, and emergency operations centers.

Muxlab Matrix Switch Features

  • Modular AV switching platform, converting a wide range of digital and analog AV inputs to HDMI
  • Uses HDBaseT technology over Cat5e/6 cable for superior signal transmission
  • Features an 8-slot chassis for maximum switching capacity of 16x16
  • User-friendly management via front panel, RS232, USB, and web server interface
  • Compatible with a variety of input and output modules, including HDMI, HD-SDI, DVI, VGA, and Fiber
  • Control4 integration for seamless operation with home automation and commercial AV systems

Key Features

  • Manage multiple video sources effortlessly with this 16x16 Matrix Switch Chassis.
  • Enjoy reliable video switching with a backplane bandwidth of 12.75Gbps per channel.
  • Achieve seamless integration with LCDs, Blu-Ray players, and more via HDMI.
  • Control your video distribution via front panel LCD, RS232, USB, or Webserver.
  • Ensure stable performance with dual redundant power supply for uninterrupted use.
  • Expand your connectivity with Ethernet LAN, USB, and RS232 ports for versatile setup.

What's in the box:

  • Muxlab Multimedia 16x16 Matrix Switch Chassis
  • Replacement Power Supply
  • Muxlab 2 Year Warranty
