Muxlab 4 Channel HDBaseT Output Card for Multimedia 16 x 16 Matrix Switch
See all Muxlab items
27% Off

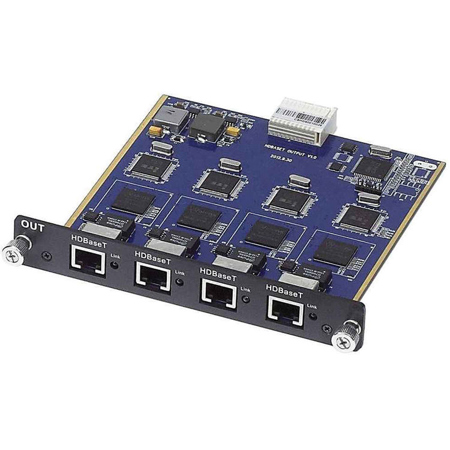

Muxlab 4 Channel HDBaseT Output Card for Multimedia 16 x 16 Matrix Switch

SKU: ML500476 MFR: 500476
Be the first to review this itemAsk a Question
$949.95
$1,300.00
Save: $350.05 (27%)
OR
$80/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Expand your multimedia matrix with this 4-channel HDBaseT output card from Muxlab.
  • Enjoy reliable connections up to 230ft with Cat 5e/6 cables using this video component.
  • Ideal for digital signage, retail, and boardroom setups, offering wide compatibility.
  • This video switcher card supports professional video editing and medical imaging needs.
  • Easy setup with a 4-port RJ45 connector for HDBaseT extender receivers, ensuring low latency.
  • Get good value with transparent transmission for courtroom systems and entertainment centers.
See More Product Details
Special Order?Estimated to Ship: 09/11/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab HDBaseT Output Card Specifications

  • Compatibility

    Multimedia 16 x 16 Matrix Switch

  • Environment

    HDBaseT

  • Devices

    HDBaseT Extender Receiver

  • Applications

    Digital signage
    Retail
    Residential
    Boardroom
    Classroom training
    Professional video editing
    Medical imaging
    Courtroom systems
    Rental and staging
    Video kiosks
    Airport video information systems
    Emergency operations centers
    Multimedia entertainment centers

  • Transmission

    Transparent to the user

  • Connectivity

    4-port RJ45 connector

  • Maximum Distance

    UTP/STP Cat 5e/6 Output port: 230' / 70.10m

  • Cables

    Cat 5e/6 UTP/STP cables (or better)

  • LED Diagnostics

    Link (Blue)

  • Compatible Receiver

    HDMI Econo Mono Receiver for HDBaseT (500451-RX)

  • Operating Temperature

    0 to 50 deg. C / 32 to 122 deg. F

  • Storage Temperature

    -20 to 85 deg. C / -4 to 185 deg. F

  • Humidity

    Up to 95% non-condensing

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Dimensions

    160 x 150 x 25mm / 6.30 x 5.91 x 0.98"

  • Weight

    0.55lbs / 0.25kg

  • UPC Code

    00627699004760

About Muxlab HDBaseT Output Card

Find the ultimate solution for your large-scale multimedia installations with the advanced 4-Channel HDBaseT Output Card (500476) designed for Muxlab's Multimedia 16x16 Matrix Switch. This high-tech module is engineered to distribute high-definition audio and video signals over extended distances, making it an ideal choice for professional audio/video and broadcast applications.

The sophisticated HDBaseT Output Card features four HDBaseT output ports, each capable of transmitting signals up to 328 feet (100 meters) over a single CAT5e/6 cable. This innovative technology allows for the seamless distribution of high-quality multimedia content, eliminating the need for multiple cables and reducing installation costs.

Working in perfect harmony with the HDMI Receiver (500451-RX), this state-of-the-art output card ensures reliable and consistent performance. Experience the convenience and efficiency of Muxlab's 4-Channel HDBaseT Output Card, a testament to the brand's commitment to producing durable and reliable networking equipment for the modern multimedia landscape.

Muxlab HDBaseT Output Card Features

  • 4 channel HDBASE-T output card only
  • Hot-swappable

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Expand your multimedia matrix with this 4-channel HDBaseT output card from Muxlab.
  • Enjoy reliable connections up to 230ft with Cat 5e/6 cables using this video component.
  • Ideal for digital signage, retail, and boardroom setups, offering wide compatibility.
  • This video switcher card supports professional video editing and medical imaging needs.
  • Easy setup with a 4-port RJ45 connector for HDBaseT extender receivers, ensuring low latency.
  • Get good value with transparent transmission for courtroom systems and entertainment centers.

What's in the box:

  • Muxlab 4 Channel HDBaseT Output Card
  • Muxlab 2 Year Warranty
