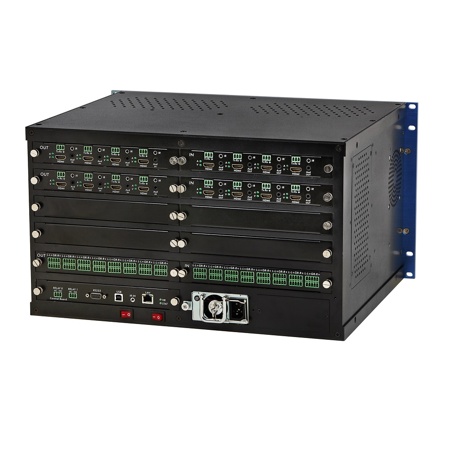

Muxlab Multimedia 16x16 HDMI 2.0 4K Matrix Switch with One Power Supply Unit, United States

The HDMI 2.0 ready Multimedia 16x16 Matrix Switch is a modular AV switching platform that converts and switches a wide range of digital AV interfaces including 4K at 60 Hz. The switch features an 8-slot chassis that allows up to four 4-port input modules to be switched to up to four 4-port output modules for a maximum switching capacity of 16x16. This product features the option of having a separate 16x16 line-level analog audio matrix within the chassis. The matrix switch offers control via front LCD touch panel, RS232, USB, IR, web server interface or third party control system. The dual-redundant power supply design reduces the potential for downtime. The matrix switch is compatible with Muxlab HDBaseT transmitters and receivers for I/O distribution of signals over distance.

• HDMI 2.0 ready chassis
• Input signal cards include: HDMI, HDBaseT
• Output signal cards include: HDMI, HDBaseT
• PoH on HDBaseT inputs and outputs with compatible Muxlab balun
• Full HDBaseT "5-Play" feature set available
• IR, RS232 pass through
• RS232, IR, USB, LAN management and web interface
• Analog audio extraction and insertion
• Front 7" LDC touch screen with video preview
• Local HDMI monitor output
• Dual-redundant power supply (one included)

Typical Applications
Control and server room displays, meeting and events, residential multi-room systems, digital signage.
