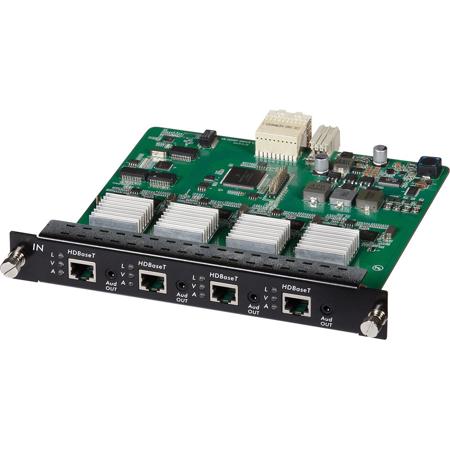

Muxlab 4 Channel HDBT/LAN PoE 4K UHD Input Card for Multimedia 16x16 Matrix Switch

SKU: ML500482I MFR: 500482-I
Earn VIP Reward Points

Key Features

  • Integrate 4K UHD video sources easily with this HDBT input card for seamless switching.
  • Enjoy reliable connection up to 330' with Cat 5e/6 cables, perfect for large installations.
  • This video switcher supports PoE, simplifying setup & reducing cable clutter for your devices.
  • Experience low latency & high resolution up to 4K/30 for crystal-clear video distribution.
  • Wide compatibility: Works with HDBT extender receivers for flexible video connectivity options.
  • Ensure good value with this 4-channel input card, designed for Muxlab's Multimedia Matrix.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab HDBT/LAN Input Card Specifications

  • Compatibility

    Multimedia 16x16 Matrix Switch

  • Environment

    HDBT, HDCP 1.4

  • Device

    Compatible with HDBT Extender Receivers (500450-RX, 500451-RX, 500451-PoE-RX, 500453-RX, 500454-RX, 500454-PoE-RX and 500456-RX)

  • Transmission

    Transparent to the user

  • Bandwidth

    10.2Gbps

  • Video Resolution

    Up to 3840x2160 at 30Hz and limited support for 3840x2160 at 60Hz (4:2:0)

  • Audio

    Stereo Analog Audio (Insertion or Extraction)

  • Ethernet

    Up to 10/100Mbps

  • Connectivity

    4-port RJ45 connector & Audio (3.5mm Stereo Jack)

  • Maximum Distance

    UTP/STP Cat 5e/6:
    330' / 100.59m up to 1080P Deep Color
    230' / 70.10m for 4K/30

  • Cables

    Cat 5e/6 UTP/STP cables (or better)

  • LED Diagnostics

    Link (Blue), Video (Blue) and Audio (Blue)

  • Temperature

    Operating:0 to 50 deg. C / 32 to 122 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Dimensions

    7.1 x 7.1 x 1.2" / 18.03 x 18.03 x 3.05cm

  • Weight

    1.5lbs / 0.68kg

About Muxlab HDBT/LAN Input Card

Find the ultimate solution for your multimedia switching needs with the 4 Channel HDBT/LAN PoE 4K UHD Input Card for Multimedia 16x16 Matrix Switch. This high-performance input card is designed to support four HDBaseT input ports, each capable of handling 4K Ultra High Definition (UHD) resolution (3840 x 2160) at 30 frames per second (4:4:4).

In addition to its impressive video capabilities, this 4K UHD input card also features four infrared (IR) ports. This allows for seamless integration with a variety of multimedia devices, enhancing your overall user experience.

One of the key features of this 4 Channel HDBT/LAN PoE 4K UHD Input Card is its compatibility with the 500480 4K60 Multimedia 16x16 Matrix Switch. This allows any of the four HDBT input ports to be switched to any of the mounted output ports. With the capacity to mount up to 16 modular output ports (4 modular cards of 4 ports each), this input card offers unparalleled flexibility and scalability for your multimedia setup.

Moreover, this input card supports switching HDBT input ports to either HDMI or HDBT output ports, providing you with a wide range of connectivity options.

The 4 Channel HDBT/LAN PoE 4K UHD Input Card also supports RS232 and IR commands. These can be sent to the 500480 4K60 Multimedia 16x16 Matrix Switch and transmitted over the HDBT port to MuXLab HDBT Extenders. This feature allows for the control of end devices and/or the transmission of LAN signals, making this input card an essential component of any advanced multimedia system.

In summary, the 4 Channel HDBT/LAN PoE 4K UHD Input Card for Multimedia 16x16 Matrix Switch is a powerful, versatile, and user-friendly solution for managing your multimedia switching needs.

Muxlab HDBT/LAN Input Card Features

  • 4x HDBT Class A input ports and 4x IR output ports
  • Supports resolutions up to 4K (3840 x 2160) at 30fps (4:4:4)
  • HDBT Class A supports 1080p to 330' (100m) and 4K/30 to 230' (70m)
  • Supports RS232 and IR transmission to control end devices
  • Supports LAN transmission
  • HDBT input ports may be switched to HDMI or HDBT output ports
  • Supplies PoE to other MuxLab PoE capable HDBT devices
  • Hot swappable card

Key Features

  • Integrate 4K UHD video sources easily with this HDBT input card for seamless switching.
  • Enjoy reliable connection up to 330' with Cat 5e/6 cables, perfect for large installations.
  • This video switcher supports PoE, simplifying setup & reducing cable clutter for your devices.
  • Experience low latency & high resolution up to 4K/30 for crystal-clear video distribution.
  • Wide compatibility: Works with HDBT extender receivers for flexible video connectivity options.
  • Ensure good value with this 4-channel input card, designed for Muxlab's Multimedia Matrix.

What's in the box:

  • Muxlab 4 Channel HDBT/LAN PoE 4K UHD Input Card
  • Muxlab 2 Year Warranty
