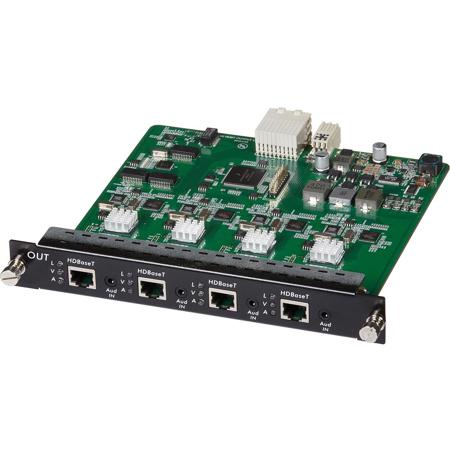

Muxlab 4 Channel HDBT/LAN PoE 4K UHD Output Card for Multimedia 16x16 Matrix Switch

SKU: ML500482O MFR: 500482-O
Earn VIP Reward Points

Key Features

  • Enhance your video setup with this 4K UHD output card for seamless switching.
  • Experience reliable connection with HDBT/LAN PoE, perfect for multimedia setups.
  • Enjoy wide compatibility with HDBT extender receivers for versatile connectivity.
  • Achieve high resolution video up to 4K/30 for stunning visual clarity and detail.
  • Simplify setup with this user-transparent card, ensuring hassle-free operation.
  • Ensure optimal performance with low latency, ideal for live streaming and events.
See More Product Details
Special Order?Estimated to Ship: 10/17/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Muxlab HDBT/LAN Output Card Specifications

  • Compatibility

    Multimedia 16x16 Matrix Switch

  • Environment

    HDBT, HDCP 1.4

  • Device

    Compatible with HDBT Extender Receivers (500450-RX, 500451-RX, 500451-PoE-RX, 500453-RX, 500454-RX, 500454-PoE-RX and 500456-RX)

  • Transmission

    Transparent to the user

  • Bandwidth

    10.2Gbps

  • Video Resolution

    Up to 3840x2160 at 30Hz and limited support for 3840x2160 at 60Hz (4:2:0)

  • Audio

    Stereo Analog Audio (Insertion or Extraction)

  • Ethernet

    Up to 10/100Mbps

  • Connectivity

    4-port RJ45 connector & Audio (3.5mm Stereo Jack)

  • Maximum Distance

    UTP/STP Cat 5e/6:
    330' / 100.59m up to 1080P Deep Color
    230' / 70.10m for 4K/30

  • Cables

    Cat 5e/6 UTP/STP cables (or better)

  • LED Diagnostics

    Link (Blue), Video (Blue) and Audio (Blue)

  • Temperature

    Operating:0 to 50 deg. C / 32 to 122 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Dimensions

    7.1 x 7.1 x 1.2" / 18.03 x 18.03 x 3.05cm

  • Weight

    1.5lbs / 0.68kg

About Muxlab HDBT/LAN Output Card

How do you enhance your multimedia experience with high-definition video and audio signals Look no further than the advanced 4 Channel HDBT/LAN PoE 4K UHD Output Card for Multimedia 16x16 Matrix Switch. This high-tech device supports four HDBT output ports, each capable of delivering 4K UHD resolution (3840 x 2160) at a smooth 30fps (4:4:4).

This sophisticated output card is designed to work seamlessly with the 500480 4K60 Multimedia 16x16 Matrix Switch, allowing any of the four HDBT output ports to be switched to any of the mounted input ports. With the capacity to mount up to 16 modular input ports (4 modular cards of 4 ports each), this innovative device provides flexibility and scalability for your multimedia needs.

In addition to its video capabilities, this state-of-the-art output card also supports four IR ports. It allows for RS232 and IR commands to be sent to the 500480 4K60 Multimedia 16x16 Matrix Switch, and transmitted over the HDBT port to MuXLab HDBT Extenders. This feature enables control of end devices and the ability to pass on LAN signals, making it a comprehensive solution for your multimedia distribution needs.

Equipped with Power over Ethernet (PoE) functionality, this output card simplifies installation and usage by receiving power and data over a single Ethernet cable. Whether you're setting up a home theater or a professional multimedia presentation, the 4 Channel HDBT/LAN PoE 4K UHD Output Card for Multimedia 16x16 Matrix Switch is the key to a high-quality, high-performance experience.

Muxlab HDBT/LAN Output Card Features

  • 4x HDBT Class A output ports and 4x IR output ports
  • Supports resolutions up to 4K (3840 x 2160) at 30fps (4:4:4)
  • HDBT Class A supports 1080p to 330' (100m) and 4K/30 to 230' (70m)
  • Supports RS232 and IR transmission to control end devices
  • Supports LAN transmission
  • HDBT output ports may be switched to HDMI or HDBT input ports
  • Supplies PoE to other MuxLab PoE capable HDBT devices
  • Hot swappable card

Key Features

  • Enhance your video setup with this 4K UHD output card for seamless switching.
  • Experience reliable connection with HDBT/LAN PoE, perfect for multimedia setups.
  • Enjoy wide compatibility with HDBT extender receivers for versatile connectivity.
  • Achieve high resolution video up to 4K/30 for stunning visual clarity and detail.
  • Simplify setup with this user-transparent card, ensuring hassle-free operation.
  • Ensure optimal performance with low latency, ideal for live streaming and events.

What's in the box:

  • Muxlab 4 Channel HDBT/LAN PoE 4K UHD Output Card
  • Muxlab 2 Year Warranty
