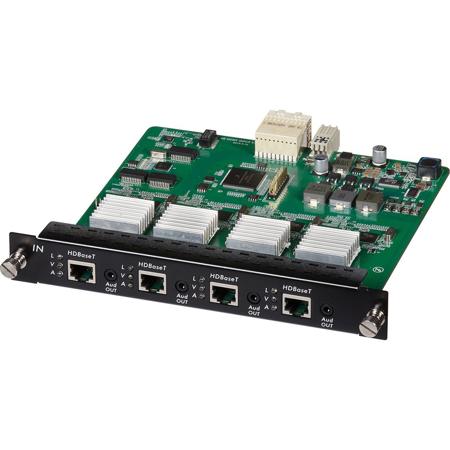

Muxlab 4 Channel HDBT PoE 4K UHD Input Card for Multimedia 16x16 Matrix Switch

SKU: ML500483I MFR: 500483-I
Earn VIP Reward Points

Key Features

  • Integrate 4K UHD video seamlessly with this HDBT input card for your matrix switch.
  • Enjoy reliable performance with HDBT technology, supporting up to 4K/30 resolutions.
  • Extend your reach! Transmit 1080P Deep Color up to 230ft using Cat 5e/6 cables.
  • Simplify setup with PoE support, delivering power and data over a single cable.
  • Enhance audio with stereo analog audio insertion/extraction via 3.5mm jack.
  • Ensure compatibility with Muxlab's Multimedia 16x16 Matrix Switch system.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab HDBT Input Card Specifications

  • Compatibility

    Multimedia 16x16 Matrix Switch

  • Environment

    HDBT, HDCP 1.4

  • Device

    Compatible with HDBT Extender Receivers (500450-RX, 500451-RX, 500451-PoE-RX, 500453-RX, 500454-RX, 500454-PoE-RX and 500456-RX)

  • Transmission

    Transparent to the user

  • Bandwidth

    10.2Gbps

  • Video Resolution

    Up to 3840x2160 at 30Hz and limited support for 3840x2160 at 60Hz (4:2:0)

  • Audio

    Stereo Analog Audio (Insertion or Extraction)

  • Connectivity

    4-port RJ45 connector & Audio (3.5mm Stereo Jack)

  • Maximum Distance

    UTP/STP Cat 5e/6:
    230' / 70.10m up to 1080P Deep Color
    115' / 35.05m for 4K/30

  • Cables

    Cat 5e/6 UTP/STP cables (or better)

  • LED Diagnostics

    Link (Blue), Video (Blue) and Audio (Blue)

  • Temperature

    Operating:0 to 50 deg. C / 32 to 122 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Dimensions

    7.1 x 7.1 x 1.2" / 18.03 x 18.03 x 3.05cm

  • Weight

    1.5lbs / 0.68kg

About Muxlab HDBT Input Card

Make your multimedia experience seamless with the 4 Channel HDBT PoE 4K UHD Input Card for Multimedia 16x16 Matrix Switch. This high-performance input card supports four HDBaseT (HDBT) input ports, each capable of handling Ultra High Definition (UHD) 4K resolution (3840 x 2160) at a smooth 30 frames per second (4:4:4).

This advanced input card also features four infrared (IR) ports, providing you with an enhanced level of control. With the flexibility to switch any of the four HDBT input ports via the 500480 4K60 Multimedia 16x16 Matrix Switch, you can direct your media to any of the mounted output ports. This input card allows for up to 16 modular output ports to be mounted, divided into 4 modular cards of 4 ports each.

The 4 Channel HDBT PoE 4K UHD Input Card offers the versatility of switching HDBT input ports to either HDMI or HDBT output ports. It also supports RS232 and IR commands, which can be sent to the 500480 4K60 Multimedia 16x16 Matrix Switch and transmitted over the HDBT port. This feature enables you to control end devices using MuXLab HDBT Extenders that support RS232 and/or IR ports.

In essence, this 4 Channel HDBT PoE 4K UHD Input Card for Multimedia 16x16 Matrix Switch is designed to elevate your multimedia setup, offering superior resolution, flexibility, and control.

Muxlab HDBT Input Card Features

  • 4x HDBT Class B input ports and 4x IR output ports
  • Supports resolutions up to 4K (3840 x 2160) at 30fps (4:4:4)
  • HDBT Class B supports 1080p to 230' (70m) and 4K/30 to 115' (35m)
  • Supports RS232 and IR transmission to control end devices
  • HDBT input ports may be switched to HDMI or HDBT output ports
  • Supplies PoE to other MuxLab PoE capable HDBT devices
  • Hot swappable card

Key Features

  • Integrate 4K UHD video seamlessly with this HDBT input card for your matrix switch.
  • Enjoy reliable performance with HDBT technology, supporting up to 4K/30 resolutions.
  • Extend your reach! Transmit 1080P Deep Color up to 230ft using Cat 5e/6 cables.
  • Simplify setup with PoE support, delivering power and data over a single cable.
  • Enhance audio with stereo analog audio insertion/extraction via 3.5mm jack.
  • Ensure compatibility with Muxlab's Multimedia 16x16 Matrix Switch system.

What's in the box:

  • Muxlab 4 Channel HDBT PoE 4K UHD Input Card
  • Muxlab 2 Year Warranty
