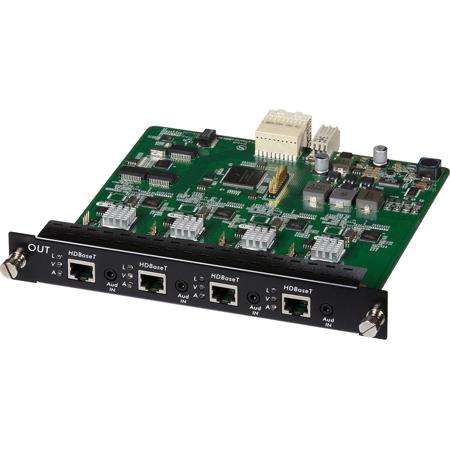

Muxlab 4 Channel HDBT PoE 4K UHD Output Card for Multimedia 16x16 Matrix Switch

SKU: ML500483O MFR: 500483-O
Earn VIP Reward Points

Key Features

  • Expand your Multimedia Matrix Switch with this 4-Channel HDBT PoE output card.
  • Enjoy 4K UHD video distribution up to 70m using Cat 5e/6 cables for crystal-clear quality.
  • This HDBT output card supports stereo analog audio insertion/extraction for enhanced sound.
  • Use with HDBT extender receivers for seamless, transparent video and audio transmission.
  • Get reliable performance with up to 10.2Gbps bandwidth for high-resolution video.
  • Diagnose easily with LED indicators for link, video, and audio on this output card.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab HDBT Output Card Specifications

  • Compatibility

    Multimedia 16x16 Matrix Switch

  • Environment

    HDBT, HDCP 1.4

  • Device

    Compatible with HDBT Extender Receivers (500450-RX, 500451-RX, 500451-PoE-RX, 500453-RX, 500454-RX, 500454-PoE-RX and 500456-RX)

  • Transmission

    Transparent to the user

  • Bandwidth

    10.2Gbps

  • Video Resolution

    Up to 3840x2160 at 30Hz and limited support for 3840x2160 at 60Hz (4:2:0)

  • Audio

    Stereo Analog Audio (Insertion or Extraction)

  • Connectivity

    4-port RJ45 connector & Audio (3.5mm Stereo Jack)

  • Maximum Distance

    UTP/STP Cat 5e/6:
    230' / 70.10m up to 1080P Deep Color
    115' / 35.05m for 4K/30

  • Cables

    Cat 5e/6 UTP/STP cables (or better)

  • LED Diagnostics

    Link (Blue), Video (Blue) and Audio (Blue)

  • Temperature

    Operating:0 to 50 deg. C / 32 to 122 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Dimensions

    7.1 x 7.1 x 1.2" / 18.03 x 18.03 x 3.05cm

  • Weight

    1.5lbs / 0.68kg

About Muxlab HDBT Output Card

You can experience superior video quality with the 4 Channel HDBT PoE 4K UHD Output Card for Multimedia 16x16 Matrix Switch. This advanced output card supports four HDBT output ports, each capable of delivering up to 4K UHD resolution (3840 x 2160) at 30fps (4:4:4). It also includes four infrared (IR) ports for added functionality.

One of the standout features of this 4K UHD output card is its flexibility. Each of the four HDBT output ports can be switched, via the 500480 4K60 Multimedia 16x16 Matrix Switch, to any of the mounted input ports. This means you can mount up to 16 modular input ports - that's four modular cards of four ports each.

The HDBT output ports can be switched to either HDMI or HDBT input ports, giving you a range of options for your multimedia setup. But the versatility doesn't stop there. The 4 Channel HDBT PoE 4K UHD Output Card also supports RS232 and IR commands. These can be sent to the 500480 4K60 Multimedia 16x16 Matrix Switch and transmitted over the HDBT port to MuXLab HDBT Extenders. This feature allows you to control end devices that support RS232 and/or IR ports, making this output card a powerful addition to your multimedia equipment.

Muxlab HDBT Output Card Features

  • 4x HDBT Class B output ports and 4x IR output ports
  • Supports resolutions up to 4K (3840 x 2160) at 30fps (4:4:4)
  • HDBT Class B supports 1080p to 230' (70m) and 4K/30 to 115' (35m)
  • Supports RS232 and IR transmission to control end devices
  • HDBT output ports may be switched to HDMI or HDBT input ports
  • Supplies PoE to other MuxLab PoE capable HDBT devices
  • Hot swappable card

Key Features

  • Expand your Multimedia Matrix Switch with this 4-Channel HDBT PoE output card.
  • Enjoy 4K UHD video distribution up to 70m using Cat 5e/6 cables for crystal-clear quality.
  • This HDBT output card supports stereo analog audio insertion/extraction for enhanced sound.
  • Use with HDBT extender receivers for seamless, transparent video and audio transmission.
  • Get reliable performance with up to 10.2Gbps bandwidth for high-resolution video.
  • Diagnose easily with LED indicators for link, video, and audio on this output card.

What's in the box:

  • Muxlab 4 Channel HDBT PoE 4K UHD Output Card
  • Muxlab 2 Year Warranty
