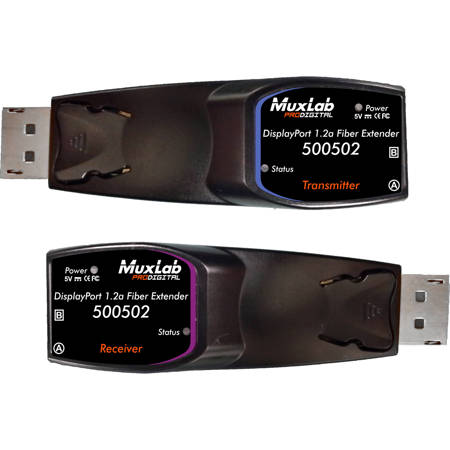

Muxlab DisplayPort 1.2a Fiber Extender Kit

SKU: ML500502 MFR: 500502
Earn VIP Reward Points

Key Features

  • Extend your DisplayPort signal up to 330ft with this fiber extender kit for crystal-clear visuals.
  • Experience seamless video transmission with this DisplayPort 1.2a extender, perfect for presentations.
  • This Muxlab DisplayPort extender supports resolutions up to 3840x2400 @ 60Hz for stunning detail.
  • Connect your DisplayPort devices easily using this kit, compatible with PCs, laptops, and servers.
  • Enjoy reliable performance with this fiber optic DisplayPort extender, ideal for sensitive applications.
  • This DisplayPort KVM component ensures transparent signal extension, maintaining video bandwidth up to 21.6Gbps.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500502 Specifications

  • Environment

    DisplayPort 1.2a

  • Devices

    Plasma, projectors, monitors, PC, laptops, and servers supporting DisplayPort

  • Transmission

    Transparent to the user

  • Video Bandwidth

    21.6 Gbps (5.4 Gbps per lane)

  • Video Resolution

    Up to 3840x2400 @ 60Hz

  • Signal

    DisplayPort 1.2a

  • Connectors

    One (1) DisplayPort Male Connector
    Two (2) LC Optical Connectors
    One (1) Micro USB connector for external power

  • Maximum Distance

    330' (100 m) over 50/125m multi-mode fiber (OM3)

  • Cable

    Two (2) LC multi-mode fibers, having a 50/125m core

  • Power Supply

    Two (2) 110-240V to 5VDC, 1A power supply with interchangeable blades for US, UK & Euro

  • Temperature

    Operating: 32 Degree to 122 Degree F (0 Degree to 50 Degree C)
    Storage: -22 Degree to 158 Degree F (-30 Degree to 70 Degree C)
    Humidity: Up to 85% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    1.02 x 2.83 x 0.57 (26 x 72 x 15mm)

  • Weight

    1 lbs (453.5g)

  • UPC Code

    00627699005026

About Muxlab 500502

The DisplayPort 1.2a Fiber Extender Kit, 500502 enables the user to transmit WQUXGA (3840x2400) video at 60Hz signal up to 330ft (100m), with any form of scaling or data compression being applied to the signal. This device support a total data throughput of 21.6Gbps (5.4Gbps per lane).

Applications:
Extending DisplayPort Monitors in various applications including:
• Commercial and residential computer systems
• Classroom training computer systems
• Collaborative computer systems
• Medical information computer systems

Muxlab 500502 Features

  • Extend DisplayPort connectivity via multi-mode fiber
  • Supports the DisplayPort 1.2a standard
  • Up to 330' (100m) over 50/125m multi-mode fiber
  • Supports WQUXGA (3840x2400) resolution @ 60Hz
  • Bandwidth of 21.6Gbps
  • Supports Dual-Mode DP (DP++)
  • Supports auxiliary/I2C channel over fiber
  • Compact Metal Enclosure for a robust and easy installation

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Extend your DisplayPort signal up to 330ft with this fiber extender kit for crystal-clear visuals.
  • Experience seamless video transmission with this DisplayPort 1.2a extender, perfect for presentations.
  • This Muxlab DisplayPort extender supports resolutions up to 3840x2400 @ 60Hz for stunning detail.
  • Connect your DisplayPort devices easily using this kit, compatible with PCs, laptops, and servers.
  • Enjoy reliable performance with this fiber optic DisplayPort extender, ideal for sensitive applications.
  • This DisplayPort KVM component ensures transparent signal extension, maintaining video bandwidth up to 21.6Gbps.

What's in the box:

  • Transmitter
  • Receiver
  • 2x 110-240V to 5VDC Power Supply with Interchangeable Blades
  • 2X USB Type A to Micro USB Cables
  • User Manual
  • Muxlab 2 Year Limited Warranty
