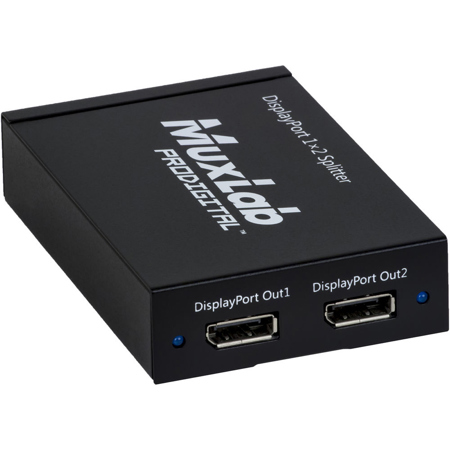

Muxlab 1x2 4K UHD DisplayPort 1.2a Splitter, SST
Muxlab 500505: Picture 1 thumbnail
Muxlab 500505: Picture 2 thumbnail
Muxlab 500505: Picture 3 thumbnail
Muxlab 500505: Picture 4 thumbnail
Muxlab 500505: Picture 5 thumbnail
See all Muxlab items

Muxlab 1x2 4K UHD DisplayPort 1.2a Splitter, SST

SKU: ML500505 MFR: 500505
Be the first to review this itemAsk a Question
$207.95
OR
$35/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Share crystal-clear 4K UHD video with this DisplayPort 1.2a splitter on two displays.
  • Enjoy high-quality audio with LPCM 7.1CH support, perfect for immersive presentations.
  • This Muxlab 1x2 splitter supports Single Stream Transport (SST) for seamless video.
  • Experience reliable performance with a video bandwidth of 21.6 Gbps for smooth visuals.
  • Easily connect using standard DisplayPort cables for hassle-free installation every time.
  • Compact & durable metal enclosure ensures long-lasting use of your DisplayPort splitter.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Jason T : I need to find an authorized seller.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500505 Specifications

  • Environment

    DisplayPort 1.2a

  • Device Targeted

    Installation of DisplayPort or Mini DisplayPort output source equipment with DisplayPort input monitors

  • Transmission

    Transparent to the user

  • Video Bandwidth

    21.6 Gbps (5.4Gbps per lane)

  • Signal

    DisplayPort 1.2a & Dual mode DisplayPort protocol

  • Transport

    Supports Single Stream Transport (SST)

  • Resolution

    Up to 3840 X 2160 @ 60 FPS

  • HDCP

    Revision 1.4 compliant

  • Audio

    LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

  • Connectors

    Three DisplayPort connectors
    One PSU connector

  • Cabling Requirement

    Input port: 1x Standard DisplayPort Cable
    Output port: 2x Standard DisplayPort Cables (Select appropriate cable length for video resolution selected)

  • LEDs

    Input & Output Link: Blue

  • Power Supply

    5VDC, 2A

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 185 Degree F (-20 Degree to 60 Degree C)
    Humidity Maximum 90% (non-condensing)

  • Enclosure

    Black metal enclosure

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    4.33 x 2.95 x 1" (110 x 75 x 25mm)

  • Weight

    8.81 oz (250g)

  • UPC Code

    627699005057

About Muxlab 500505

The DisplayPort 1.2a 1 x2 Splitter, SST (500505) allows you to duplicate identical DisplayPort 1.2a content from one DisplayPort connector to two monitors. The splitter supports video resolutions up to 4K and PCM Audio up to 7.1-Channel and up to 192 kHz sampling rate, supporting a Single Stream Transport (SST).

Applications:
• Commercial and residential AV systems
• Classroom training systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 500505 Features

  • Duplicate identical DisplayPort 1.2a content from one DisplayPort connector to two monitors
  • Supports data rate of 5.4 Gbps per lane with a total of 21.6 Gbps link rate
  • HDMI link rate: 3.2 Gbps/data pair
  • Supports dual mode DisplayPort
  • 4K at 60Hz, 24 bits/pixel in DP 1.2a configuration
  • 1080p at 240Hz, 24 bits/pixel
  • Supports Single Stream Transport (SST)

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Share crystal-clear 4K UHD video with this DisplayPort 1.2a splitter on two displays.
  • Enjoy high-quality audio with LPCM 7.1CH support, perfect for immersive presentations.
  • This Muxlab 1x2 splitter supports Single Stream Transport (SST) for seamless video.
  • Experience reliable performance with a video bandwidth of 21.6 Gbps for smooth visuals.
  • Easily connect using standard DisplayPort cables for hassle-free installation every time.
  • Compact & durable metal enclosure ensures long-lasting use of your DisplayPort splitter.

What's in the box:

  • Muxlab 1x2 4K UHD DisplayPort 1.2a Splitter (SST)
  • Power Supply
  • Muxlab 2 Year Limited Warranty
