Muxlab IR Remote Extender Kit

SKU: ML500600 MFR: 500600
Earn VIP Reward Points

Key Features

  • Extend your IR remote control signal up to 2200ft with this reliable extender kit.
  • Control your TV, STB, DVD, DVR, PVR, and satellite receivers using this IR remote kit.
  • Enjoy transparent transmission; this IR extender kit is simple and easy to use.
  • This IR remote extender supports NEC, RC5, RC6, Grundig, RCA, Zenith, & Sony 12-bit codes.
  • Connect easily with Cat 5e/6 cables for a stable IR signal extension in your setup.
  • This Muxlab IR kit includes transmitter, receiver, IR emitters, sensor & velcro pads.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab Extender Kit Specifications

  • Environment

    Infra-red (IR) control

  • Devices

    TV Sets, STB, DVD, DVR, PVR, and satellite receivers

  • Transmission

    Transparent to the user

  • Supported IR Data Formats

    NEC code, RC5 code, RC6 code, Grundig code, RCA Code, Zenith code and Sony 12-bit code

  • Carrier Frequency

    38 kHz

  • IR Wavelength

    940nm

  • Connectors

    Transmitter:
    1x 3.5mm / 0.14" stereo jack for IR sensor
    1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    3x screw-type terminal blocks for RJ45 pass-thru
    1x PSU connector
    Receiver:
    4x 3.5mm / 0.14" stereo jacks for IR Emitter
    1x RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    3x screw-type terminal blocks for RJ45 pass-thru

  • Maximum Distance IR

    2200' / 670.57m

  • RJ45 Pin Configuration

    Signal:
    IR remote: pin 7 (R) pin 8 (T)
    Pass-thru: pin 1 (R) pin 2 (T)
    Pass-thru: pin 3 (R) pin 6 (T)
    Pass-thru: pin 4 (R) pin 5 (T)

    RJ45
    Pin 8 (T)
    Pin 2 (T)
    Pin 6 (T)
    Pin 5 (T)
    (Reverse PolaritySensitive. Use EIA/TIA568A or 586B straight-through wiring.)

  • Cable

    Cat 5e/6

  • Power Supply

    1x 110-240V / 12VDC - 500mA power supply with interchangeable blades

  • Power Consumption

    Transmitter: 1.8W

  • Temperature

    Operating: 0 to 55 deg. C / 32 to 131 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Fire retardant plastic

  • Mounting

    Velcro pads (included)

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    Transmitter: 2.40 x 2.25 x 1" / 60.96 x 57.15 x 25.40mm
    Receiver: 2.40 x 2.25 x 1" / 60.96 x 57.15 x 25.40mm

  • Weight

    1.3lbs / 0.59kg

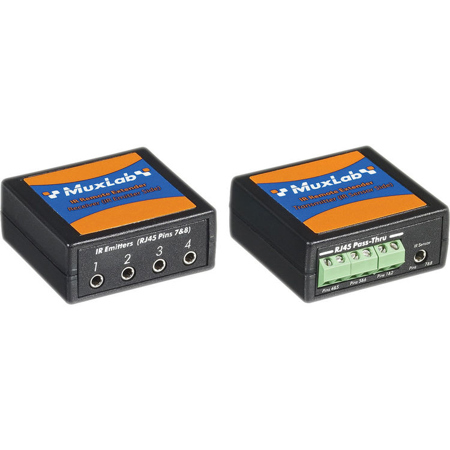

About Muxlab Extender Kit

After investing in the Muxlab IR Remote Extender Kit (500600), you'll experience the convenience of controlling up to four audio-video sources from a distance of up to 2,200 ft (670m) away. This high-quality, durable product is designed to extend the range of your remote control via Cat5e/6 cable, making it an essential tool for managing your home theater, TV, and other IR-equipped electronics.

The kit includes one compact IR Sensor (500999) and four IR Emitters (500998), offering maximum cabling versatility. This easy-to-use system is designed to accommodate your unique setup, ensuring seamless integration into your existing technology ecosystem.

One of the standout features of this affordable IR Remote Extender Kit is its three pairs of screw terminal blocks. These allow the three unused twisted pairs to be accessed for other low voltage services. This means you can simultaneously use the system for balanced video, audio, or data services, enhancing its utility and value.

Whether you're looking to improve your residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems, or commercial display on/off control, the Muxlab IR Remote Extender Kit is a reliable solution. Experience the difference that comes with extended control range and enjoy the convenience of managing your devices from a distance.

Muxlab Extender Kit Features

  • Extends IR remote control range up to 2,200 ft via Cat5e/6 cable
  • Includes 1 IR Sensor and 4 IR Emitters for versatile AV setups
  • Easy-to-install with compact design for discreet placement
  • Durable construction from reputable brand Muxlab ensures long-lasting use
  • Screw terminal blocks for additional low voltage audio/video/data services
  • Ideal for a variety of settings including home theaters and commercial displays

Key Features

  • Extend your IR remote control signal up to 2200ft with this reliable extender kit.
  • Control your TV, STB, DVD, DVR, PVR, and satellite receivers using this IR remote kit.
  • Enjoy transparent transmission; this IR extender kit is simple and easy to use.
  • This IR remote extender supports NEC, RC5, RC6, Grundig, RCA, Zenith, & Sony 12-bit codes.
  • Connect easily with Cat 5e/6 cables for a stable IR signal extension in your setup.
  • This Muxlab IR kit includes transmitter, receiver, IR emitters, sensor & velcro pads.

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • 4x IR Emitter
  • IR Sensor
  • Velcro Pads
  • Muxlab 2 Year Warranty
