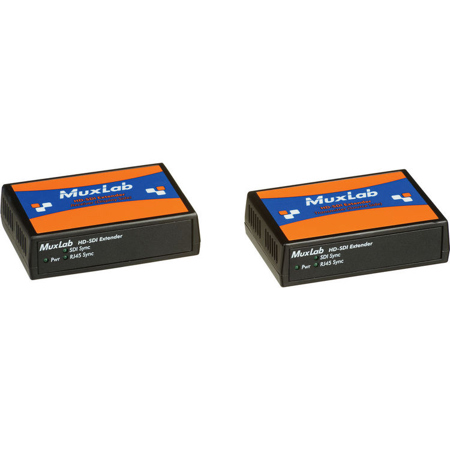

Muxlab 3G-SDI Extender Kit
Muxlab 3G-SDI Extender Kit: Picture 1 thumbnail
Muxlab 3G-SDI Extender Kit: Picture 2 thumbnail
See all Muxlab items

Muxlab HD-SDI Extender Kit

SKU: ML500700 MFR: 500700
Be the first to review this itemAsk a Question
$1,033.00
OR
$87/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your HD-SDI signal up to 400ft with this reliable extender kit, ensuring top performance.
  • Enjoy seamless connectivity with camcorders, monitors, and more using this versatile HD-SDI extender.
  • Supports multiple formats including SD, HD, and 3G-SDI, making it a highly compatible solution.
  • This durable Muxlab extender kit includes transmitter, receiver, and power supplies for easy setup.
  • Ideal for CCTV, broadcast, and professional video setups, this HD-SDI extender ensures quality.
  • Automatic speed selection up to 2.97 Gb/s guarantees optimal video quality with this SDI extender.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 3G-SDI Extender Kit Specifications

  • Environment

    SDI single link : SD, HD, and 3G

  • Devices

    Camcorders, video processors, monitors, projectors, scan converters, CCTV cams/DVR, and any equipment supporting HD-SDI single link

  • Standards

    SMPTE 259M (270 Mb/s), SMPTE 292M, and SMPTE 424M

  • Speed

    270 Mb/s, 1.485 Gb/s, and 2.97 Gb/s (automatic selection)

  • Formats

    Format tested - SD: 525i, 59.94 Hz & 625i, 50 Hz
    HD: 1035i, 60 Hz & 1080i, 50 Hz & 1080p, 30 Hz & 1080i, 60 Hz & 1080p, 25 Hz & 1080i, 50 Hz & 1080p, 24 Hz & 720p, 60 Hz
    3G: 1080p, 4:2:2, 10b, 60Hz & 1080p, 4:2:2, 10b, 50Hz &720p
    4:4:4:4, 10b, 60Hz & 720p, 4:4:4:4, 10b, 50Hz & 1080p
    4:4:4:4, 10b, 30Hz & 720p
    4:4:4:4, 10b, 30Hz &1080p
    4:4:4:4, 10b, 25Hz & 720p, 4:4:4:4, 10b, 25Hz & 1080p

  • Formats 1

    4:4:4:4, 10b, 24Hz & 720p, 4:4:4:4, 10b, 24Hz & 1080i
    4:4:4:4, 10b, 30Hz & 1080i
    4:4:4:4, 10b, 25Hz &1080p
    4:4:4, 12b, 30Hz & 1080p, 4:4:4, 12b, 25Hz &1080p
    4:4:4, 12b, 24Hz & 1080i, 4:4:4, 12b, 30Hz &1080i
    4:4:4, 12b, 25Hz & 1080p, 4:2:2, 12b, 30Hz &1080p
    4:2:2, 12b, 25Hz & 1080i, 4:2:2, 12b, 30Hz &1080i
    4:2:2, 12b, 25Hz

  • Indicators

    Power SDI Sync RJ45 Link

  • Connectors

    1x BNC 75 Ohms female
    1x RJ45S for Cat5e/6 unshielded twisted pair
    1x 2mm power connector

  • Maximum Distance

    CAT5e UTP/STP: 330' / 100.59m
    CAT6 UTP/STP: 400' / 121.92m

  • Power Supply

    2x 100 to 240 VAC /12 VDC 1.25 A power supplies with interchangeable blades for NA, Eur, and UK

  • Power Consumption

    Transmitter: 4 W
    Receiver: 8 W

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 80 deg. C / -4 to 176 deg. F

  • Humidity

    Up to 95% non-condensing

  • Enclosure

    Aluminum

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.5 x 3.0 x 1.2" / 11.43 x 7.62 x 3.05cm

  • Weight

    2.5lbs / 1.13kg

  • UPC Code

    627699007006

About Muxlab 3G-SDI Extender Kit

The 3G-SDI Extender Kit allows HD-SDI to be transmitted up to 330' (100m) via Cat5e/6 cable in a point-to-point configuration. The HD-SDI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.

Muxlab 3G-SDI Extender Kit Features

  • Supports SDI-SMPTE 259M-C (270Mbps) HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps) HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
  • Up to 330' (100m) via Cat5e/6 at all resolutions
  • LED diagnostics; sync, signal detect
  • Cast aluminum enclosure
  • 2 year warranty

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HD-SDI signal up to 400ft with this reliable extender kit, ensuring top performance.
  • Enjoy seamless connectivity with camcorders, monitors, and more using this versatile HD-SDI extender.
  • Supports multiple formats including SD, HD, and 3G-SDI, making it a highly compatible solution.
  • This durable Muxlab extender kit includes transmitter, receiver, and power supplies for easy setup.
  • Ideal for CCTV, broadcast, and professional video setups, this HD-SDI extender ensures quality.
  • Automatic speed selection up to 2.97 Gb/s guarantees optimal video quality with this SDI extender.

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • 2x Power Supply
  • Muxlab 2 Year Warranty
