Muxlab HD-SDI Balun, 2 Pack
See all Muxlab items

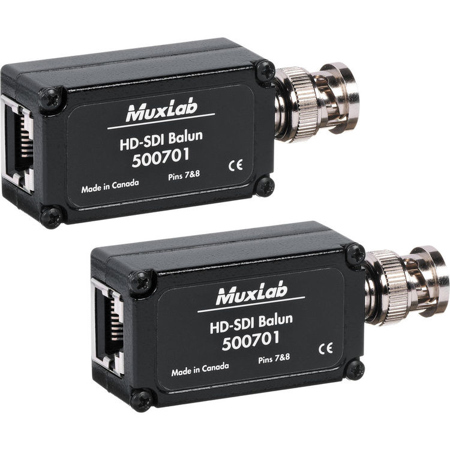

Muxlab HD-SDI Balun, 2 Pack

SKU: ML5007012PK MFR: 500701-2PK
Be the first to review this itemAsk a Question
$107.95
Earn VIP Reward Points

Key Features

  • Extend your HD-SDI signal up to 492ft with this balun using Cat6 cable for reliable surveillance.
  • Enjoy easy install with this 2-pack balun, connecting HD-CCTV cameras to DVRs via Cat5e/6.
  • This Muxlab HD-SDI balun supports SMPTE 292M, ensuring high-quality video for your security setup.
  • Weatherproof cast aluminum enclosure guarantees durability for your surveillance system's balun.
  • Achieve universal compatibility connecting camcorders, monitors, and more with this HD-SDI balun.
  • Maintain strong signal strength for HD video up to 147ft using Cat5e, perfect for surveillance.
See More Product Details
Free Expedited Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Muxlab HD-SDI Balun Specifications

  • Package Quantity

    2 Pack

  • Environment

    SDI single link : SD & HD

  • Devices

    Camcorders, video processors, monitors, projectors, scan converters, HD-CCTV cameras/DVR and any equipment supporting HD-SDI single link

  • Standard supported

    SD (PAL, NTSC): SMPTE 259M (270Mb/s)
    HD (720p, 1080i): SMPTE 292M (1.5 Gb/s)

  • Connectors

    1x BNC 75Ohms male
    1x RJ45S for Cat 5e/6

  • Maximum Distance Cat5e/6

    SD: Up to 100m / 328.08' using Cat 5 UTP
    Up to 120m / 393.70' for CAT 5E UTP
    Up to 150m / 492.12' for CAT 6 UTP

    HD: Up to 30m / 98.42' using Cat 5 UTP
    Up to 45m / 147.64' for CAT 5E or 6 UTP

  • RJ45 Pin Configuration

    Pin 7 (R) Pin 8 (T)
    (Use EIA/TIA 568A or 586B straight-through wiring.)

  • Cables

    1x straight Cat 5e/6 UTP cable required.

  • Temperature

    Operating: -40 to 85 deg. C / -40 to 185 deg. F
    Storage: -40 to 85 deg. C / -40 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    Cast aluminum

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions (L x H x W)

    0.8 x 1.85 x 1.05" / 20.32 x 46.99 x 26.67mm + extended BNC connector

  • Weight

    1.5oz / 42.52g

  • UPC Code

    627699907016

Designed For Use With:

  • Universal

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Muxlab HD-SDI Balun

The HD-SDI Balun (500701) allows one HD-SDI signal to be transmitted up to 150 ft (45m) via Cat5e cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports transmission of up to 1.5 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment.

• Supports SD and HD (720p, 1080i) resolutions
• Up to 150 ft (45m) via Cat5e cable at HD
• Up to 400 ft (120m) via Cat5e cable at SD
• Supports Cat5e/6 cable
• Cast aluminum enclosure for EMI/RFI shielding

Applications
Video production, broadcasting, HD camcorder, studio-to-studio, post-production, live events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, medical imaging.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HD-SDI signal up to 492ft with this balun using Cat6 cable for reliable surveillance.
  • Enjoy easy install with this 2-pack balun, connecting HD-CCTV cameras to DVRs via Cat5e/6.
  • This Muxlab HD-SDI balun supports SMPTE 292M, ensuring high-quality video for your security setup.
  • Weatherproof cast aluminum enclosure guarantees durability for your surveillance system's balun.
  • Achieve universal compatibility connecting camcorders, monitors, and more with this HD-SDI balun.
  • Maintain strong signal strength for HD video up to 147ft using Cat5e, perfect for surveillance.

What's in the box:

  • Muxlab HD-SDI Balun
  • Muxlab Lifetime Warranty
