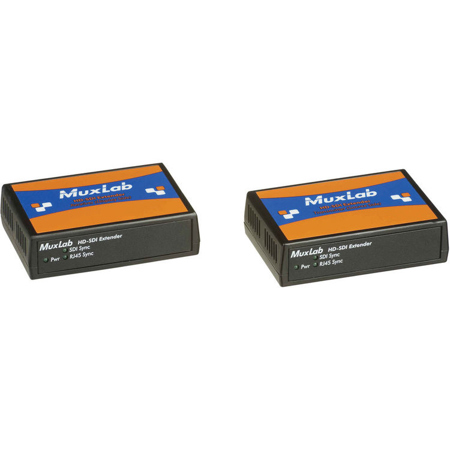

Muxlab LongReach HD-SDI Extender Kit
See all Muxlab items

Muxlab LongReach HD-SDI Extender Kit

SKU: ML500702
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Extender Kit Specifications

  • Environment

    SDI single link : SD, HD, and 3G

  • Devices

    Monitors or any equipment supporting SDI single link

  • Standards

    SMPTE 259M (270 Mb/s), SMPTE 292M, and SMPTE 424M

  • Speed

    270 Mb/s, 1.485 Gb/s, and 2.97 Gb/s (automatic selection)

  • Format tested 1

    SD: 525i, 59.94 Hz & 625i, 50 Hz
    HD: 1035i, 60 Hz & 1080i, 50 Hz & 1080p, 30 Hz & 1080i, 60 Hz & 1080p, 25 Hz & 1080i, 50 Hz & 1080p, 24 Hz & 720p, 60 Hz
    3G: 1080p, 4:2:2, 10b, 60Hz & 1080p, 4:2:2, 10b, 50Hz &
    720p, 4:4:4:4, 10b, 60Hz & 720p, 4:4:4:4, 10b, 50Hz &
    1080p, 4:4:4:4, 10b, 30Hz & 720p, 4:4:4:4, 10b, 30Hz &
    1080p, 4:4:4:4, 10b, 25Hz & 720p, 4:4:4:4, 10b, 25Hz &
    1080p, 4:4:4:4, 10b, 24Hz & 720p, 4:4:4:4, 10b, 24Hz

  • Format tested 2

    3G: 1080i, 4:4:4:4, 10b, 30Hz & 1080i, 4:4:4:4, 10b, 25Hz &
    1080p, 4:4:4, 12b, 30Hz & 1080p, 4:4:4, 12b, 25Hz &
    1080p, 4:4:4, 12b, 24Hz & 1080i, 4:4:4, 12b, 30Hz &
    1080i, 4:4:4, 12b, 25Hz & 1080p, 4:2:2, 12b, 30Hz &
    1080p, 4:2:2, 12b, 25Hz & 1080i, 4:2:2, 12b, 30Hz &
    1080i, 4:2:2, 12b, 25Hz
    Only LEVEL A MAPPING is supported

  • Indicators

    Power SDI Sync RJ45 Link

  • Connectors

    1x BNC 75Ohms female
    1x RJ45S for CAT 5e/6 unshielded or shielded twisted pair
    1x power connector, 2mm / 0.08"

  • Maximum Distance

    CAT5e UTP/STP: 500' / 152.40m
    CAT6 UTP/STP: 500' / 152.40m

  • Power Supply

    2x 100 to 240 VAC /12 VDC 1.25 A power supplies with interchangeable blades for NA, Eur, and UK

  • RJ45 Pin Configuration

    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Reverse PolaritySensitive.Use EIA/TIA 568A or 586Bstraight-through wiring.)

  • Power Consumption

    Transmitter: 4 W
    Receiver: 8 W

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    6061 Aluminum alloy

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.5 x 3 x 1.25" / 114.30 x 76.20 x 31.75mm

  • Weight

    2.5lbs / 1.13kg

  • UPC Code

    627699007020

About Muxlab Extender Kit

The 3G-SDI Extender Kit allows HD-SDI to be transmitted up to 330 ft (100m) via Cat5e/6 cable in a point-to-point configuration. The HD-SDI Extender Kit supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video (optionally including embedded Audio and/or Time Code) within television facilities and between professional video equipment. The LongReach 3G-SDI Extender Kit (model 500702) features LED diagnostics for sync, signal detect and supports transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video within television facilities and between professional video equipment.

• Supports SDI-SMPTE 259M-C (270Mbps), HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps), HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
• Up to 330 ft (100m) via Cat5e/6 at all resolutions
• Up to 500 ft via Cat5e/6 at all resolutions (model 500702)
• LED diagnostics; sync, signal detect
• Cast aluminum enclosure
• 2 year warranty

Applications
Video production, broadcasting, camcorder, studio-to-studio, pos t-production, live events, medical imaging displays, mobile video, HD/SD.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • Power Supply
  • Muxlab 2 Year Warranty
