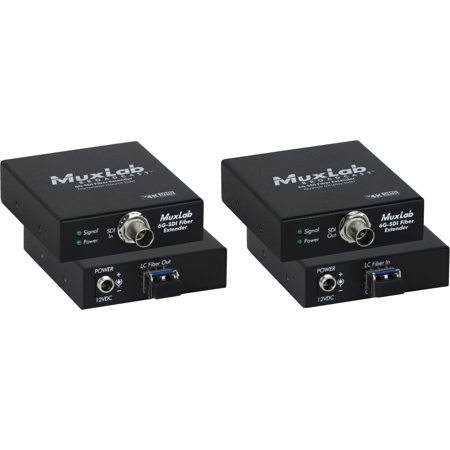

Muxlab 6G-SDI Over Single-Mode LC Fiber Extender Kit, 60000'
Muxlab 500712: Picture 1 thumbnail
Muxlab 500712: Picture 2 thumbnail
Muxlab 500712: Picture 3 thumbnail
Muxlab 500712: Picture 4 thumbnail
See all Muxlab items

Muxlab 6G-SDI Over Single-Mode LC Fiber Extender Kit, 60000'

SKU: ML500712 MFR: 500712
Be the first to review this itemAsk a Question
$806.00
OR
$68/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your 6G-SDI signals up to 60,000' with this reliable LC Fiber Extender Kit.
  • Supports SMPTE 2081, 424M, 292, & 259 standards for seamless SDI signal transmission.
  • Achieve high-quality UHD video with automatic bit rate selection up to 5.94Gb/s.
  • This 6G-SDI extender includes both transmitter & receiver for a complete setup.
  • Use with monitors or any equipment supporting 6G, 3G, & HD single coaxial links.
  • Enjoy a stable connection with single-mode fiber, ensuring optimal video clarity.
See More Product Details
Special Order?Estimated to Ship: 10/05/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$79.99
3-Year Adorama Protect$99.99
4-Year Adorama Protect$129.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 500712 Specifications

  • Environment

    SDI single coaxial link: 6G (UHD), 3G & HD

  • Devices

    Monitors or any equipment supporting 6G (UHD), 3G & HD single coaxial link

  • Standard supported

    SMPTE 2081, SMPTE 424M, SMPTE 292 & SMPTE 259

  • Bit rates

    5.94Gb/s, 2.97Gb/s & 1.485Gb/s (automatic selection)

  • Indicators

    Power
    Signal present

  • Connectors

    One BNC 75ohm female
    One duplex LC single-mode fiber connector
    One locking power connector, 2mm

  • Typical Distance

    On coax:
    Using low loss coax Belden 1694A cable (RG6):
    260' (80m) at 5.94Gb/s
    700' (210m) at 2.97Gb/s
    1000' (300m) at 1.485Gb/s

    On fiber:
    Using single-mode fiber 9/125microm for 1310nm:
    60,000' (20km)

  • Optic Link Required

    Simplex or Duplex SMF fiber 9/125microm with LC connectors (only one fiber is used)

  • Eye Safety for Laser

    Class 1, compliant with IEC60825-1

  • Voltage Required

    5 - 12 VDC, 1.25W each unit

  • Power Supply

    Included Two 100-240V/12VDC 6W power supplies with interchangeable blades for NA, Europe and UK

  • Power Consumption

    Transmitter: 1.25Watts
    Receiver: 1.25Watts

  • Temperature

    Operating: 32 Degree to 122 Degree F (0 Degree to 50 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Module Enclosure

    Black, metal

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    3 x 3 x 1" (7.6 x 7.6 x 2.5cm) (excluding connectors)

  • Weight

    2.2 lbs (1kg)

About Muxlab 500712

The 6G-SDI Fiber Extender Kit allows 6G-SDI to be transmitted up to 60,000ft (20km) via a one singlemode fiber cable in a point-to-point configuration at all specified bit rates. The 6G-SDI Fiber Extender Kit supports transmission of up to 6.0Gbps of digital video within television broadcasting facilities and between professional video equipment.

Applications:
• Video production & Broadcasting
• Studio-to-studio & Post production
• Outside broadcasting vehicle
• Mobile video & Live Events
• SDI camcorder
• Medical imaging display
• 6G/3G/HD-SDI routing
• 6G/3G/HD-SDI CCTV

Muxlab 500712 Features

  • Supports 6G/3G/HD-SDI signals
  • Supports up to 4K/30 video
  • Extend transmission up to 60,000' (20km) over singlemode fiber
  • LED diagnostics

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your 6G-SDI signals up to 60,000' with this reliable LC Fiber Extender Kit.
  • Supports SMPTE 2081, 424M, 292, & 259 standards for seamless SDI signal transmission.
  • Achieve high-quality UHD video with automatic bit rate selection up to 5.94Gb/s.
  • This 6G-SDI extender includes both transmitter & receiver for a complete setup.
  • Use with monitors or any equipment supporting 6G, 3G, & HD single coaxial links.
  • Enjoy a stable connection with single-mode fiber, ensuring optimal video clarity.

What's in the box:

  • 6G-SDI LC Fiber Extender Transmitter
  • 6G-SDI LC Fiber Extender Receiver
  • 2x 100-240V Power Supply with Interchangeable Blades
  • Muxlab 2 Year Limited Warranty
