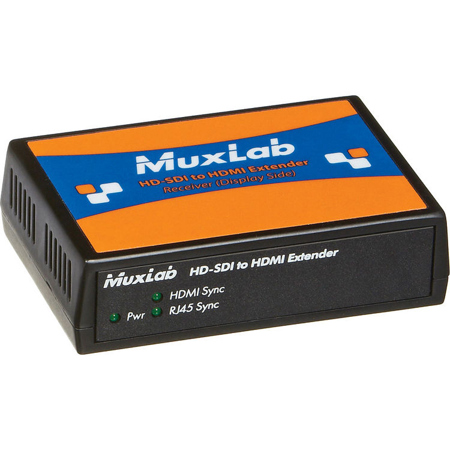

Muxlab LongReach 3G-SDI to HDMI Extender Kit
See all Muxlab items
32% Off

Muxlab LongReach 3G-SDI to HDMI Extender Kit

SKU: ML500716 MFR: 500716
Be the first to review this itemAsk a Question
$713.00
$1,041.00
Save: $328 (32%)
OR
$119/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your SDI signal up to 500ft with this reliable SDI to HDMI extender kit!
  • Enjoy stable video format conversion from 3G-SDI to HDMI with ease.
  • This video converter supports SMPTE standards for professional-grade quality.
  • Experience real-time conversion with automatic bit rate selection for convenience.
  • Get high resolution video output, supporting up to 1080p at 60Hz for crisp visuals.
  • Easy setup with RJ45 connectors; use standard Cat5e/6 cables for a seamless install.
See More Product Details
Special Order?Estimated to Ship: 09/13/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab Extender Kit Specifications

  • Environment

    SDI single link: SD, HD & 3G

  • Devices

    Monitors supporting the original SDI rate only

  • Standard supported

    SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M

  • Bit rates

    270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection)

  • Video format supported

    SD: 525i, 59.94/60Hz & 625i, 50Hz
    HD: 720p at 60Hz, 50Hz, 30Hz, 25Hz & 24Hz 1080i at 60Hz & 50Hz 1080p at 30Hz, 25Hz & 24Hz
    3G: 1080p at 60Hz & 50Hz
    (monitor must support the original SDI rate)

  • Sound format supported

    48kHz at 24 bit, 20 bit & 16 bit

  • Indicators

    Power
    SDI Sync (on rx side only)
    RJ45 Sync
    Video (on tx side only)
    Sound (on tx side only)
    HDMI Sync (on rx side only)

  • Connectors (On each unit)

    1x BNC 75Ohms female on source side.
    1x HDMI on receiver on receiver side
    1x RJ45S for Cat5e/6 unshielded twisted pair.
    1x power connector, 2mm / 0.08"

  • Maximum Distance

    UTP Cat 5e: 500' / 152.40m, UTP Cat 6: 500' / 152.40m
    Maximum distance applies for all format and speed between boxes
    On SDI side: 450' / 137.16m
    On HDMI side: 15' / 4.57m typical

  • RJ45 Pin Configuration

    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)
    (Use EIA/TIA 568A or 586B straight-through wiring only.)

  • Power Supply (Included)

    2x 100-240V/5VDC 6W power supplies with interchangeable blades for NA, Europe and UK

  • Power Consumption

    Transmitter: 4W
    Receiver: 6W

  • Temperature

    Operating: 0 to 40 deg. C / 32 to 104 deg. F
    Storage: -20 to 85 deg. C / -4 to 185 deg. F
    Humidity: Up to 95% non-condensing

  • Enclosure

    6061 Aluminum alloy

  • Dimensions

    4.50 x 3.00 x 1.25" / 114.30 x 76.20 x 31.75mm

  • Weight

    2.5lbs / 1.13kg

  • UPC Code

    627699007167

About Muxlab Extender Kit

The LongReach 3G-SDI to HDMI Extender Kit (500715) is a high-quality, efficient solution for converting HD-SDI signals to HDMI. This durable and reliable kit is designed to transmit your signal up to a distance of 330 ft (100m) via Cat5e/6 cable, maintaining the integrity of your video at all resolutions in a point-to-point configuration.

This user-friendly extender kit is compatible with a wide range of devices that utilize 3G HD-SDI and SDI inputs, making it a versatile choice for various professional video equipment setups. It supports the transmission of up to 2.97/3.0 Gbps uncompressed, un-encrypted digital video, optionally including embedded audio and/or time code. This ensures that the image being sent from one device to another is crystal clear, free of interference or distortion, and synchronized perfectly with your audio and time code data.

Whether you're working within television facilities or between different pieces of professional video equipment, the LongReach 3G-SDI to HDMI Extender Kit provides a seamless, high-quality video transmission solution.

Muxlab Extender Kit Features

  • Up to 330 ft (100m) via Cat5e cable
  • Up to 400 ft (122m) via Cat6 cable
  • Up to 500 ft via Cat5e cable
  • Supports SDI-SMPTE 259M-C (270Mbps), HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps), HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
  • LED diagnostics: sync, SDI detect

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your SDI signal up to 500ft with this reliable SDI to HDMI extender kit!
  • Enjoy stable video format conversion from 3G-SDI to HDMI with ease.
  • This video converter supports SMPTE standards for professional-grade quality.
  • Experience real-time conversion with automatic bit rate selection for convenience.
  • Get high resolution video output, supporting up to 1080p at 60Hz for crisp visuals.
  • Easy setup with RJ45 connectors; use standard Cat5e/6 cables for a seamless install.

What's in the box:

  • Muxlab Transmitter
  • Receiver
  • 2x 110-240V/5VDC Power Supply with Interchangeable Blades
  • Muxlab 2 Year Warranty
