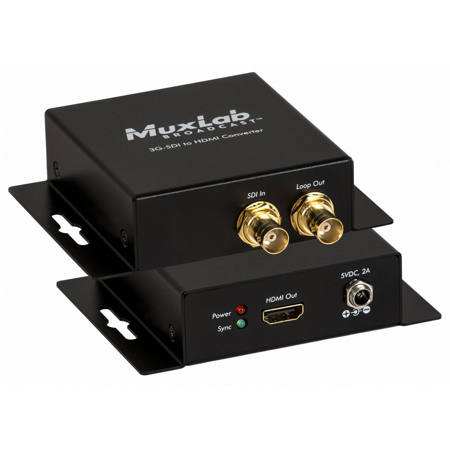

Muxlab 3G-SDI to HDMI Converter
See all Muxlab items

Muxlab 3G-SDI to HDMI Converter

SKU: ML500717 MFR: 500717
Be the first to review this itemAsk a Question
$239.95
OR
$40/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly convert 3G-SDI to HDMI for crystal-clear video on displays and projectors.
  • Enjoy auto detection of 3G/HD/SD-SDI signals, making setup a breeze for any broadcast need.
  • Supports up to 8 audio channels, ensuring rich, immersive sound with your HDMI conversion.
  • Extend your SDI signal with cable equalization up to 300' for 3G-SDI, ideal for live streaming.
  • This HDMI converter supports 1080p at 60Hz, delivering high-quality video for your audience.
  • Compact metal enclosure ensures durability and reliability for broadcast and production environments.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$29.99

3 Year

$39.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500717 Specifications

  • Environment

    HDMI 1.3a, 3G-SDI, HD-SDI & SD-SDI

  • Devices

    Camera, plasma, projectors, monitors, TV

  • Transmission

    Transparent to the user

  • Detection

    Auto Detection of the 3G/HD/SD-SDI Signal

  • Bandwidth

    2.97Gbps & 2.975/1.001Gbps

  • Signal

    HDMI 1.3a & SDI protocol

  • Supported Resolution

    3G-SDI: 1080p50/59.94/60Hz (4:2:2)

    HD-SDI: 1080p/23.98/24/25/29.97/30Hz
    720p/50/59.94/60Hz
    1080i/50/59.94/60Hz

    SD-SDI: NTSC (59.94Hz), PAL (50Hz)

  • Audio

    Up to 8 Audio Channels

  • Input Signal

    3G-SDI: SMPTE-424M
    HD-SDI: SMPTE 292M, 296M
    SD-SDI: SMPTE 259M

  • Connectors

    Two (2) BNC Female 75 Ohms, Gold Plated
    One (1) HDMI Type A receptacle

  • Cable Equalization

    3G-SDI up to 300' (90m)
    HD-SDI up to 500' (150m)
    SD-SDI up to 1000' (300m)

  • Cable

    One (1) RG-59 or better cable required

  • Power Supply

    One (1) 110-240V/5VDC power supply with interchangeable blades

  • Power Consumption

    3.0Watt (Max)

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
    Humidity: Up to 90% non-condensing

  • Enclosure

    Metal

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    3.1 x 3.3 x 1.2" (79 x 84 x 27mm)

  • Weight

    1.7 lbs (771g)

  • UPC Code

    627699007174

About Muxlab 500717

The 3G-SDI to HDMI Converter (500717) allows SDI equipment to be connected to an HDMI Display. The 3G-SDI to HDMI Converter converts the SDI signal back to HDMI, supporting resolutions of 480i (SD-SDI), 720p/1080i (HDSDI) and 1080p (3G-SDI). The 3G-SDI to HDMI Converter provides a low jitter and re-clocked outputs allowing for unit daisy chain.

Applications:
• Video production & Broadcasting
• Studio-to-studio & Post production
• Outside broadcasting vehicle
• Mobile video & Live Events
• SDI camcorder
• Medical imaging display

Muxlab 500717 Features

  • Auto 3G/HD/SD-SDI detection & conversion
  • View SDI source video on a lower cost HDMI display
  • Supports up to 1080p
  • 3G-SDI up to 300' (90m) via RG59 coax
  • Low jitter & re-clocked output
  • Supports daisy chain
  • Wall mountable
  • LED diagnostics

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert 3G-SDI to HDMI for crystal-clear video on displays and projectors.
  • Enjoy auto detection of 3G/HD/SD-SDI signals, making setup a breeze for any broadcast need.
  • Supports up to 8 audio channels, ensuring rich, immersive sound with your HDMI conversion.
  • Extend your SDI signal with cable equalization up to 300' for 3G-SDI, ideal for live streaming.
  • This HDMI converter supports 1080p at 60Hz, delivering high-quality video for your audience.
  • Compact metal enclosure ensures durability and reliability for broadcast and production environments.

What's in the box:

  • Muxlab 3G-SDI to HDMI Converter
  • 110-240V Power Supply with Interchangeable Blades
  • (HDMI and RG59 Coaxial Cables Not Included)
  • Muxlab 2 Year Limited Warranty
