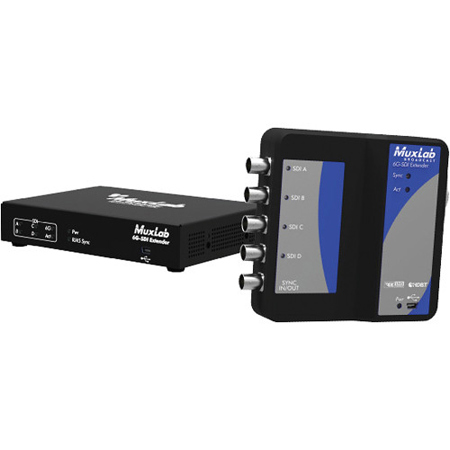

Muxlab Extender Over UTP Kit: Picture 1 thumbnail
Muxlab Extender Over UTP Kit Video #1
1 video
Muxlab 6G-SDI Extender Over UTP Kit
See all Muxlab items

Muxlab 6G-SDI Extender Over UTP Kit

SKU: ML500730
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab Extender Over UTP Kit Specifications

  • Environment

    6G-SDI digital signal transmission

  • Enclosure

    Metal box

  • Control

    Serial console emulation with USB interface

  • Front panel (RX)

    Mini USB for firmware updates status LEDS

  • Rear panel (RX)

    +48 V power jack
    BNC for SYNC input signal
    RJ45 for UTP cable between RX and TX unit
    4x BNC, SDI output connectors

  • Front panel (TX)

    BNC for SYNC output signal
    4x BNC SDI output connectors

  • Top panel (TX)

    Mini USB for firmware updates status LEDS

  • Connectors

    SDI in: 4x BNC connector ( 0.8V pp, 75 Ohms )
    SDI out: 4x BNC connector ( 0.8V pp, 75 Ohms )
    (Sync: 2 BNC connectors
    Control: Mini USB, for configuration and firmware updates
    UTP: RJ45 / Ethercon, for UTP communication
    Power: 1x Standard 2.1mm power jack

  • Power

    48 V external power supply with US, UK, and Euro blades

  • Compliance

    FCC, CE, RoHS

  • Dimensions

    Transmitter: 4.3 x 4.3 x 1.3" / 10.92 x 10.92 x 3.30cm
    Receiver: 5.8 x 4.1 x 1.0" / 14.73 x 10.41 x 2.54cm
    Power Connector: 0.2 x 0.1" / 0.51 x 0.25cm

  • Weight

    Transmitter: 0.76lbs / 0.34kg
    Receiver: 0.60lbs / 0.27kg

  • UPC Code

    627699007303

About Muxlab Extender Over UTP Kit

The 6G-SDI Extender is a unique new solution from Muxlab for extending SDI based cameras or other SDI sources up to 4K resolution with the added benefit of extending the Hi Resolution signal up to 500'(150m).Standard Cat5e/6 UTP cable is used for the extension. The pair of units (Transmitter, Receiver) use PoE for power and only require the Receiver (RX) side to be powered. The input source for the 6G-SDI Extender is HD-SDI using four coax cables, 3G-SDI using two coax cables and 6G-SDI using a single coax cable.

Muxlab Extender Over UTP Kit Features

  • Up to 500' (150M)
  • HD-SDI using two or four coax cables, 3G-SDI using single or two coax cables, 6G-SDI using a single coax cable
  • Maximum resolution supported: 4K
  • Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
  • Supports all 6G channel configurations (1/2/4)
  • Automatic SDI Link recognition and configuration
  • USB interface for field upgradable firmware and diagnostics
  • PoE to power supply to the Transmitter (Tx)
  • Ethercon Connectivity and Aluminum Enclosure for ruggedized use

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Up to 500' (150M)
  • Maximum resolution supported: 4K
  • Supported modes
  • Supports all 6G channel configurations (1/2/4)
  • Automatic SDI Link recognition and configuration
  • USB interface for field upgradable firmware and diagnostics

What's in the box:

  • Muxlab Transmitter Unit
  • Receiver Unit
  • 48 VDC Wall-Mount Power Supply
  • Blades for Wall-Mount Power Supply
  • Muxlab 2 Year Limited Warranty
