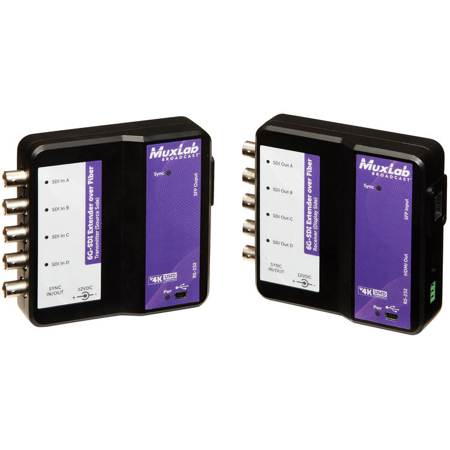

Muxlab 6G-SDI Extender Over Fiber Multi-Mode Optic Kit, 1300'
Muxlab 500732 Video #1
Muxlab 500732: Picture 1 thumbnail
See all Muxlab items

Muxlab 6G-SDI Extender Over Fiber Multi-Mode Optic Kit, 1300'

SKU: ML500732 MFR: 500732
Be the first to review this itemAsk a Question
$2,974.00
OR
$248/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your 6G-SDI signals up to 1300 feet with this reliable fiber optic extender kit.
  • Enjoy seamless 6G-SDI video transmission over multi-mode fiber with this Muxlab extender.
  • This SDI extender supports RS232 serial for control, ideal for pro AV setups needing control.
  • Get crystal-clear video with this 6G-SDI extender, perfect for broadcast and production studios.
  • Update firmware easily via Mini USB on this SDI extender for the best performance and features.
  • This fiber optic kit includes transmitter and receiver, ensuring a complete SDI extension solution.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500732 Specifications

  • Color

    Black

  • Environment

    6G-SDI, 3G-SDI, HD-SDI digital signal transmission

  • Serial Interface

    RS232 Serial transmission

  • Enclosure

    Aluminum casing

  • Control

    Serial console emulation with USB interface

  • Front panel

    Receiver: BNC for SYNC input signal (if required)
    4x BNC, SDI output connectors

    Transmitter: BNC for SYNC output signal (if required)
    4x BNC SDI input connectors

  • Rear panel

    Receiver & Transmitter: SFP+ connector for optical fiber cable interface
    Terminal Block for RS232

  • Top panel

    Receiver & Transmitter: Mini USB for firmware updates and status LEDs

  • Side panel

    Receiver & Transmitter: +12 VDC Locking power jack

  • SDI in Connectors

    4 BNC connectors for SDI input (0.8V pp, 75 ohm)

  • SDI out Connectors

    4 BNC connectors for SDI output (0.8V pp, 75 ohm)

  • Sync Connectors

    1 BNC connector (if required)

  • Control Connectors

    Mini USB, for configuration and firmware updates

  • Fiber Connectors

    SFP+ Connector for dual optical fiber cable interface

  • Power Connectors

    One standard 2.1mm locking Power Jack

  • Compliance

    FCC, CE, RoHS

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Power

    2x 12V DC external power supplies with US, UK and Euro blades

  • Signal Distance

    OM4 fiber length - 1300' (400m)

  • Dimensions

    4.3 x 4.3 x 1" (10.9 x 10.9 x 2.54cm)

About Muxlab 500732

The 6G-SDI Extender over Fiber Optic is a unique solution from Muxlab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of 400m (1300ft) using OM4 fiber (model 500732). This product allows for versatile combinations of sources, such as one 6G-SDI source, two 3G-SDI sources, or four HD-SDI sources.

Applications:
Video production, Broadcasting, Outside Broadcasting vehicle, HD camcorder, Studio-to-studio, Post production, Live events, Medical imaging display, Mobile video

Muxlab 500732 Features

  • Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
  • Accepts up to four HD-SDI feeds, two 3G-SDI feeds or one 6G-SDI feed
  • Supports all 6G channel configurations (1, 2, or 4 BNC)
  • Automatic SDI Link recognition and configuration
  • USB interface for diagnostics and field upgradable firmware
  • Standard SFP+ module for optical fiber interface, or other media
  • Heavy duty aluminum casing
  • Supports RS232 pass-through

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your 6G-SDI signals up to 1300 feet with this reliable fiber optic extender kit.
  • Enjoy seamless 6G-SDI video transmission over multi-mode fiber with this Muxlab extender.
  • This SDI extender supports RS232 serial for control, ideal for pro AV setups needing control.
  • Get crystal-clear video with this 6G-SDI extender, perfect for broadcast and production studios.
  • Update firmware easily via Mini USB on this SDI extender for the best performance and features.
  • This fiber optic kit includes transmitter and receiver, ensuring a complete SDI extension solution.

What's in the box:

  • Transmitter
  • Receiver
  • 2x 12VDC Wall-Mount Power Supply with Blades
  • Muxlab 2 Year Limited Warranty
