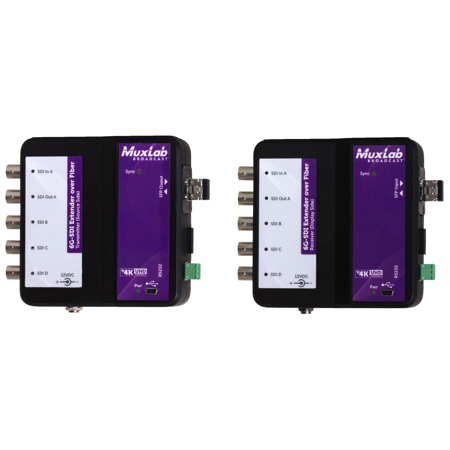

Muxlab 6G-SDI Extender Over Fiber Single-Mode Optic Kit with Return Channel, 33000'

SKU: ML500734SM10 MFR: 500734-SM10
Earn VIP Reward Points

Key Features

  • Extend your 6G-SDI signals up to 33,000 feet with this reliable fiber optic extender kit.
  • Enjoy seamless RS232 serial transmission alongside your high-quality 6G-SDI video signals.
  • This SDI extender kit includes both transmitter and receiver for a complete connectivity solution.
  • The durable aluminum casing protects your investment, ensuring long-lasting performance for your setup.
  • Simplify setup with the included power supplies and versatile BNC connectors for SDI input/output.
  • Update firmware easily via Mini USB for optimal performance of your KVM cables and switches setup.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$129.99

3 Year

$179.99

4 Year

$215.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500734-SM Specifications

  • Color

    Black

  • Environment

    6G-SDI, 3G-SDI, HD-SDI digital signal transmission

  • Serial Interface

    RS232 Serial transmission

  • Enclosure

    Aluminum casing

  • Control

    Serial console emulation with USB interface

  • Front panel

    Receiver: 5x BNC, SDI connectors (1 input, 1 output, 3 input/output)
    Transmitter: 5x BNC, SDI connectors (1 input, 1 output, and 3 configurable as input/output)

  • Rear panel

    SFP+ connector for optical fiber cable interface
    Terminal Block for RS232

  • Top panel

    Mini USB for firmware updates and status LEDs

  • Side panel

    Locking power jack (supports a +12VDC to +48VDC voltage range)

  • SDI in Connectors

    1 BNC connectors for SDI input (0.8V pp, 75 ohm)

  • SDI out Connectors

    1 BNC connectors for SDI output (0.8V pp, 75 ohm)

  • SDI in/out Connectors

    3 BNC connectors

  • Control Connectors

    Mini USB, for configuration and firmware updates

  • Fiber Connectors

    SFP+ Connector for dual optical fiber cable interface

  • Power Connectors

    One standard 2.1mm locking Power Jack

  • Compliance

    FCC, CE, RoHS

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Power

    2x 12V DC external power supplies with US, UK and Euro blades

  • Signal Distance

    Single-mode fiber - 33,000' (10km)

  • Dimensions

    4.3 x 4.3 x 1" (10.9 x 10.9 x 2.54cm)

  • UPC Code

    00627699907344

About Muxlab 500734-SM

The 6G-SDI Extender over Fiber Optic with Return Channel is a unique solution from Muxlab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of 10km (33,000ft) using single-mode fiber (model 500734-SM10), 40km (132,000ft) using single-mode fiber (model 500734-SM40), and 80km (264,000ft) using single-mode fiber (model 500734-SM80). The product supports multichannel transmission, and can simultaneously transmit up to 9Gbps of data throughput over the fiber link, and allows for versatile combinations of sources, including 6G-SDI, 3G-SDI and HD-SDI. The unit supports simultaneous transmission of mixed signals such as one 6G-SDI signal + one 3G-SDI, or two 3G-SDI signals + two HD-SDI signals, and many other combinations up to 9Gbps.

The device supports one input and one output SDI port, plus three directional SDI ports that can be individually configured as input or output. This flexibility allows for up to four source ports and one return channel, or up to one source port and four return channels, or anything in between. The SDI return channel may be used for AV monitoring and talkback, while the RS232 pass-through supports return of tally light, camera control unit (CCU) and control of end devices.

Applications:
Video production, Broadcasting, Outside Broadcasting vehicle, HD camcorder, Studio-to-studio, Post production, Live events, Medical imaging display, Mobile video

Muxlab 500734-SM Features

  • Extend up to 4K @ 30Hz resolution from 985' (300m) over OM3 MM fiber to 265000' (80km) over SM fiber
  • Supports multichannel transmission, and can simultaneously transmit up to 9Gbps of data
  • Accepts mixed signal transmission of up to one 6G-SDI signal + one 3G-SDI, or two 3G-SDI signals + two HD-SDI signals, and many other combinations in any direction, including the return channels
  • Supports one input and one output SDI port, plus three configurable directional SDI ports
  • Supports RS232 pass-through for remote control and as a return channel for tally light and camera control unit (CCU)
  • Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
  • Supports all 6G channel configurations (1, 2, or 4 BNC)
  • Automatic SDI Link recognition and configuration
  • Supports a standard SFP+ module for the optical fiber interface, or other media
  • USB interface for diagnostics and field upgradable firmware
  • Aluminum casting enclosure for ruggedized use

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Extend your 6G-SDI signals up to 33,000 feet with this reliable fiber optic extender kit.
  • Enjoy seamless RS232 serial transmission alongside your high-quality 6G-SDI video signals.
  • This SDI extender kit includes both transmitter and receiver for a complete connectivity solution.
  • The durable aluminum casing protects your investment, ensuring long-lasting performance for your setup.
  • Simplify setup with the included power supplies and versatile BNC connectors for SDI input/output.
  • Update firmware easily via Mini USB for optimal performance of your KVM cables and switches setup.

What's in the box:

  • Transmitter
  • Receiver
  • 2x 12VDC Wall-Mount Power Supply with Blades
  • 2x 10G SFP+ Modules with LC Connectors
  • Muxlab 3 Year Limited Warranty
