Name: Muxlab 6G-SDI Extender Over Fiber Single-Mode Optic Kit with Return Channel, 132000'
Brand: Muxlab
SKU: ML500734SM40
Price: 5426.00 USD
Availability: BackOrder

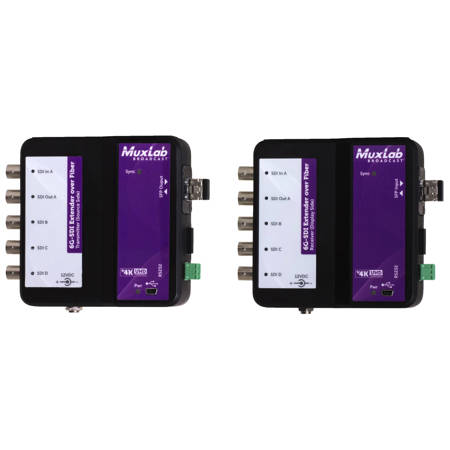

Muxlab 6G-SDI Extender Over Fiber Single-Mode Optic Kit with Return Channel, 132000'

Muxlab 500734-SM

Muxlab

<a rel="nofollow" class="promo-financing short trackEvent popup" data-track-data="financing apply,suggested minimum payment credit,pdp" data-callback-context="adrma" data-callback-arguments='{"financeMonth":"12","financePrice":"453","TotalPrice":"5426","financeDateEnd":"12/31/9999"}' data-callback="renderFinancingPromoPopup" data-href="/api/getContent?ContentName=CAFinancingPromo&Output=Desktop" data-popup-class="popup800 popupFinancing">$453/mo suggested payments with 12&#8209;month special financing. Learn&nbsp;how.</a>

Muxlab 6G-SDI Extender Over Fiber Single-Mode Optic Kit w/Return Channel,132000'

Generally ships in 7-14 days, subject to availability

Special Order

Generally ships in 7-14 days, subject to availability Estimated to Ship: 07/30/2025.

Adorama Protect 2-Year Protection Plan

Adorama Protect 3-Year Protection Plan

Adorama Protect 4-Year Protection Plan

Adorama Protect powered by Extend is available for purchases to customers in the United States only. Not available for international or U.S. territories purchases. Adorama Protect plans are available for ABS clients.

<a class="percent-off-everyday-promo popup promo-financing trackEvent" data-href="/api/getContent?ContentName=CAFinancingGenericPopup&amp;Output=Desktop" data-popup-class="popupFinancing popup800" rel="nofollow" data-track-data="financing apply,ways to save every day savings,pdp"
		data-callback-context="adrma" data-callback-arguments="{&quot;financeMonth&quot;:&quot;{1}&quot;,&quot;financePrice&quot;:&quot;{0}&quot;,&quot;TotalPrice&quot;:&quot;{2}&quot;}" data-callback="renderFinancingPromoPopup"><img alt="edge-creditcard" src="/col/assets/edge-creditcard.png">
 <h3>Save 5% Every Day†</h3>with the Adorama Edge Credit Card.Learn More</a>

Adorama

Computers

Computer Accessories

Computer Cables & Adapters

KVM Cables & Switches

Muxlab KVM Cables & Switches

Muxlab 500734-SM

Shop the Muxlab 6G-SDI Extender Kit for long-distance, high-performance video & RS232. Single-mode fiber up to 132,000'. Order today!

The 6G-SDI Extender over Fiber Optic with Return Channel is a unique solution from Muxlab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of 10km (33,000ft) using single-mode fiber (model 500734-SM10), 40km (132,000ft) using single-mode fiber (model 500734-SM40), and 80km (264,000ft) using single-mode fiber (model 500734-SM80). The product supports multichannel transmission, and can simultaneously transmit up to 9Gbps of data throughput over the fiber link, and allows for versatile combinations of sources, including 6G-SDI, 3G-SDI and HD-SDI. The unit supports simultaneous transmission of mixed signals such as one 6G-SDI signal + one 3G-SDI, or two 3G-SDI signals + two HD-SDI signals, and many other combinations up to 9Gbps.The device supports one input and one output SDI port, plus three directional SDI ports that can be individually configured as input or output. This flexibility allows for up to four source ports and one return channel, or up to one source port and four return channels, or anything in between. The SDI return channel may be used for AV monitoring and talkback, while the RS232 pass-through supports return of tally light, camera control unit (CCU) and control of end devices.Applications:Video production, Broadcasting, Outside Broadcasting vehicle, HD camcorder, Studio-to-studio, Post production, Live events, Medical imaging display, Mobile video

Muxlab 6G-SDI Extender Over Fiber Single-Mode Optic Kit with Return Channel, 132000'

Key Features
