Muxlab HDMI Over IP Decoder with PoE
See all Muxlab items
31% Off

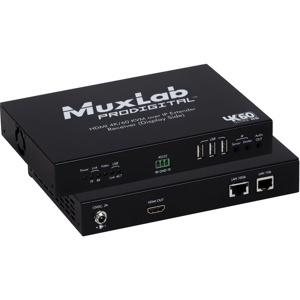

Muxlab HDMI Over IP Decoder with PoE

SKU: ML500752RX MFR: 500752-RX
Be the first to review this itemAsk a Question
$386.00
$563.00
Save: $177 (31%)
OR
$65/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Enjoy seamless HDMI over IP decoding with this Muxlab receiver, perfect for large displays.
  • This HDMI decoder supports PoE, simplifying installation and reducing cable clutter, a great value!
  • Transmit video up to 330ft using Cat5e/6 cable with this reliable HDMI over IP KVM solution.
  • Experience transparent video transmission with low latency, ideal for real-time applications.
  • This HDMI over IP decoder is compatible with DVD players, PCs, and projectors for versatility.
  • Ensure regulatory compliance with FCC, CE, and RoHS certifications for peace of mind and safety.
See More Product Details
Special Order?Estimated to Ship: 12/18/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$34.99
2-Year Adorama Protect$59.99
3-Year Adorama Protect$79.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main function of the HDMI Over IP Decoder with PoE?

The main function of the HDMI Over IP Decoder with PoE is to convert IP packets back into the original HDMI bitstream. This allows for high-quality playback on an HDMI display.

What does the PoE feature in the HDMI Over IP Decoder do?

The Power over Ethernet (PoE) feature in the HDMI Over IP Decoder allows the device to receive both power and data over a single Ethernet cable. This simplifies the setup process and reduces cable clutter.

Is the HDMI Over IP Decoder with PoE suitable for professional use?

Yes, the HDMI Over IP Decoder with PoE is suitable for both professional and personal use. It's ideal for high-definition video streaming and video conferencing.

Who would benefit from using the HDMI Over IP Decoder with PoE?

The HDMI Over IP Decoder with PoE is an essential tool for tech-savvy individuals and businesses that handle modern digital media.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 500752 Specifications

  • Environment

    HDMI 1.3a

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Video Transmission

    Transparent to the user

  • Video Bandwidth

    225MHz

  • Signal

    HDMI 1.3a protocol

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    One (1) 3.5mm jacks for IR emitter/sensor
    Four (4) DIP Switches for device ID addressing

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 1080P
    Cat5e/6: 400' (120m) when used point to point without hub

  • Latency

    One (1) Frame

  • Compression

    Motion JPEG

  • Network Bandwidth

    60Mbps

  • Network Requirement

    100BaseT for Point to Point; 1000BaseT for other configuration

  • IR Frequency

    38 to 56KHz

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Supply

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500992) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    1.8Watt

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal black

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    3.70 x 3.68 x 0.97" (94 x 93.5 x 24.6mm)

  • Weight

    1.1 lbs (499g)

  • UPC Code

    627699807521

About Muxlab 500752

The HDMI over IP Decoder with PoE allows HDMI equipment to be connected up to 330ft (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-tomultipoint and multipoint-to-multipoint is possible by connecting several Receivers to the same Ethernet network.

The Muxlab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management.

The Receiver (500752-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch. Comes with one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.

For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP Server capability and IGMP communications protocol. We recommend using the Cisco SG300 Series Managed Switches.

Muxlab 500752 Features

  • HDMI 1.3
  • Supports up to 1080p resolutions
  • Motion JPEG compression with Very low latency
  • Supports 100's of Receivers, depending on network bandwidth
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330' (100m) over Cat5e/6
  • Up to 390' (120m) between the TX and RX when no LAN switch is used
  • Supports IR transmission for remote control
  • PoE powered
  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Enjoy seamless HDMI over IP decoding with this Muxlab receiver, perfect for large displays.
  • This HDMI decoder supports PoE, simplifying installation and reducing cable clutter, a great value!
  • Transmit video up to 330ft using Cat5e/6 cable with this reliable HDMI over IP KVM solution.
  • Experience transparent video transmission with low latency, ideal for real-time applications.
  • This HDMI over IP decoder is compatible with DVD players, PCs, and projectors for versatility.
  • Ensure regulatory compliance with FCC, CE, and RoHS certifications for peace of mind and safety.

What's in the box:

  • Muxlab HDMI Over IP Decoder with PoE
  • Muxlab 3 Year Limited Warranty
