Muxlab HDMI/RS232 Over IP Extender Kit with PoE
See all Muxlab items
25% Off

Muxlab HDMI/RS232 Over IP Extender Kit with PoE

SKU: ML500753 MFR: 500753
Be the first to review this itemAsk a Question
$540.00
$720.00
Save: $180 (25%)
OR
$90/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your HDMI and RS232 signals over IP with this Muxlab extender kit, up to 330ft!
  • Enjoy seamless transmission with this HDMI over IP extender, transparent to the user.
  • This HDMI extender supports DVD, plasma, projectors, monitors, TVs, PCs, and laptops.
  • Utilize PoE (Power over Ethernet) for easy setup; no external power supply is needed.
  • Control devices remotely with the included IR sensor and emitter for added convenience.
  • Achieve high-quality video with Motion JPEG compression, ensuring optimal performance.
See More Product Details
Special Order?Estimated to Ship: 12/08/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$124.99
3-Year Adorama Protect$159.99
4-Year Adorama Protect$189.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the HDMI / RS232 Over IP Extender Kit with PoE include?

The kit includes one Encoder (500753-TX) and one Decoder (500753-RX), both of which support Power over Ethernet (PoE). It also comes with an IR Emitter and IR Sensor for remote control applications.

What configurations does the HDMI / RS232 Over IP Extender Kit with PoE support?

The kit supports point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations. This makes it ideal for complex installations in various environments.

What is the maximum transmission distance of the HDMI / RS232 Over IP Extender Kit with PoE?

The kit can extend HDMI and control signals over a single Cat5e/6 unshielded twisted pair cable up to 330 feet (100m) at 1080p resolution. In a direct connection between the TX and RX without a LAN switch, it can reach up to 390 feet (120m).

How can I manage and control the HDMI / RS232 Over IP Extender Kit with PoE?

The kit comes with MuXLab Management Software, which simplifies the setup and management. You can also control the kit via Windows-based software or through web-enabled devices when used with the model 500810 (Pro Digital Network Controller).

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 500753 Specifications

  • Environment

    HDMI 1.3a

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Transmission

    Transparent to the user

  • Video Bandwidth

    225MHz

  • Signal

    HDMI 1.3a protocol

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    One (1) 3.5mm jacks for IR emitter/sensor
    One (1) DB9 Serial Port Connector
    Four (4) DIP Switches for device ID addressing

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 1080P
    Cat5e/6: 400' (120m) when used point

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 1080P
    Cat5e/6: 400' (120m) when used point

  • Latency

    One (1) Frame

  • Compression

    Motion JPEG

  • Network Bandwidth

    60Mbps

  • Network Requirement

    100BaseT for Point to Point; 1000BaseT for other configuration

  • IR Frequency

    38 to 56KHz

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Power Supply

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500992) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    Transmitter: 2.9Watt
    Receiver: 1.8Watt

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal black

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.40 x 3 x 1" (11.2 x 7.6 x 2.5cm)

  • Weight

    1.1 lbs (499g)

About Muxlab 500753

The HDMI / RS232 over IP Extender Kit with PoE allows HDMI equipment to be connected up to 330ft (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is possible by connecting several Transmitters and Receivers to the same Ethernet network.

The Muxlab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management.

The Transmitter (500753-TX) and Receiver (500753-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.

For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP Server capability and IGMP communications protocol. We recommend using the Cisco SG300 Series Managed Switches.

Muxlab 500753 Features

  • HDMI 1.3
  • Supports up to 1080p resolutions
  • Motion JPEG compression with Very low latency
  • Supports 100's of Transmitters and Receivers, depending on network bandwidth
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Transmission up to 330' (100m) over Cat5e/6
  • Up to 390' (120m) between the TX and RX when no LAN switch is used
  • Supports RS232 and IR transmission for remote control
  • PoE powered
  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your HDMI and RS232 signals over IP with this Muxlab extender kit, up to 330ft!
  • Enjoy seamless transmission with this HDMI over IP extender, transparent to the user.
  • This HDMI extender supports DVD, plasma, projectors, monitors, TVs, PCs, and laptops.
  • Utilize PoE (Power over Ethernet) for easy setup; no external power supply is needed.
  • Control devices remotely with the included IR sensor and emitter for added convenience.
  • Achieve high-quality video with Motion JPEG compression, ensuring optimal performance.

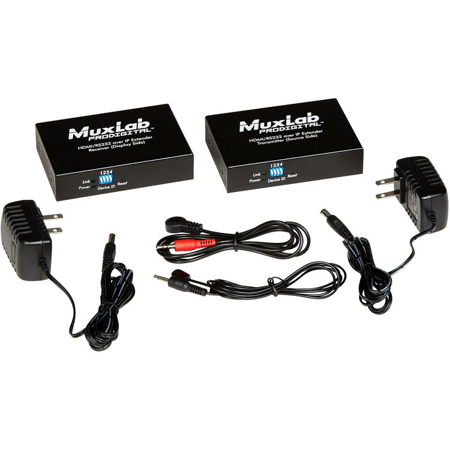

What's in the box:

  • Encoder
  • Decoder
  • IR Sensor
  • IR Emitter
  • Muxlab 3 Year Limited Warranty
