Muxlab HDMI/RS232 Video Wall Over IP Extender Kit with PoE, 330'
See all Muxlab items

Muxlab HDMI/RS232 Video Wall Over IP Extender Kit with PoE, 330'

SKU: ML500754
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Muxlab 500451: Picture 1 regular
Muxlab 4K UHD HDMI HDBaseT Extender Kit
$276.00
Muxlab 500451POE: Picture 1 regular
Muxlab 4K UHD HDMI HDBaseT Lite Extender Kit with PoE
$295.00
Muxlab 500456: Picture 1 regular
Muxlab 4K UHD HDMI HDBaseT 4-Play Extender Kit
$566.00
Muxlab 500457: Picture 1 regular
Muxlab 4K UHD HDMI/USB 2.0 Extender Kit
$725.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the maximum number of screens the HDMI/RS232 Over IP Video Wall Extender Kit with PoE can support?

The HDMI/RS232 Over IP Video Wall Extender Kit with PoE can support a video wall of up to 200 screens.

What is the maximum distance this extender kit can cover?

The extender kit can cover a maximum distance of 330 feet (100 meters) using Cat5e/6 cable.

Can the extender kit be used with non-PoE setups?

Yes, the transmitter unit can be connected via a LAN switch, compatible with both PoE and non-PoE setups.

What is required for the configuration of the video wall function?

The Muxlab ProDigital Network Controller (500811) is required for the configuration of the video wall function. It is sold separately.

Is there a dedicated receiver for each display?

Yes, each display in the array utilizes a dedicated receiver for seamless transmission and clear image quality.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Muxlab 500754 Specifications

  • Environment

    HDMI 1.3a

  • Devices

    DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI

  • Video Wall

    NxM video wall capabilities

  • Max. Configuration

    100's of transmitters and receivers, depending on network bandwidth

  • Compatibility

    500752 and 500753

  • Transmission

    Transparent to the user

  • Video Bandwidth

    225MHz

  • Signal

    HDMI 1.3a protocol

  • Connectors

    One (1) HDMI receptacle
    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair
    One (1) 3.5mm jacks for IR emitter/sensor
    One (1) DB9 Serial Port Connector
    Four (4) DIP Switches for device ID addressing

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end
    Cat5e/6: 330' (100m) up to 1080p

  • Latency

    One (1) Frame

  • Compression

    Motion JPEG

  • Network Bandwidth

    60Mbps

  • Network Requirement

    100BaseT for Point to Point; 1000BaseT for other configuration

  • IR Frequency

    38 to 56KHz

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Supply

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500992) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    Transmitter: 2.9Watt
    Receiver: 1.8Watt

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal black

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    4.40 x 3 x 1" (11.2 x 7.6 x 2.5cm)

  • Weight

    1.1 lbs (499g)

About Muxlab 500754

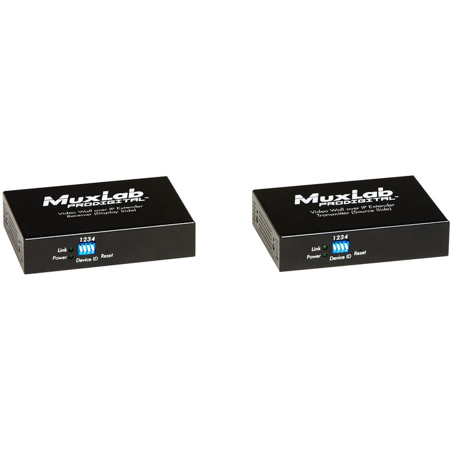

The Video Wall over IP Extender Kit with PoE allows HDMI equipment to create a Video Wall of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one receiver for each display in the array.

The transmitter unit can be connected using a LAN switch (PoE or non-PoE), with maximum distances of 330ft (100m) of Cat 5e/6 cable between equipment. The Muxlab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management. The transmitter (500754-TX) and receiver (500754-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet switch.

The kit comes with one (1) transmitter and one (1) receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications. For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP server capability and IGMP communications protocol. Muxlab recommends using the Cisco SG300 Series Managed Switches.

Muxlab 500754 Features

  • Configure a Video Wall array with 100's of displays, depending on network bandwidth
  • HDMI 1.3
  • Supports up to 1080p resolutions
  • Visually lossless video (1 frame latency)
  • Supports point-to-point, point-to-multipoint and multipointto-multipoint applications
  • Transmission up to 330' (100m) over Cat5e/6
  • Transmission up to 390' (120m) between one (1) TX and one (1) RX when no LAN switch is used in a point-to-point scenario
  • Supports RS232 and IR transmission for remote control
  • PoE powered
  • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Configure a Video Wall array with 100's of displays, depending on network bandwidth
  • HDMI 1.3
  • Supports up to 1080p resolutions
  • Visually lossless video (1 frame latency)
  • Supports point-to-point, point-to-multipoint and multipointto-multipoint applications
  • Transmission up to 330' (100m) over Cat5e/6

What's in the box:

  • Encoder
  • Decoder
  • IR Emitter
  • IR Sensor
  • Muxlab 3 Year Limited Warranty
