31% Off

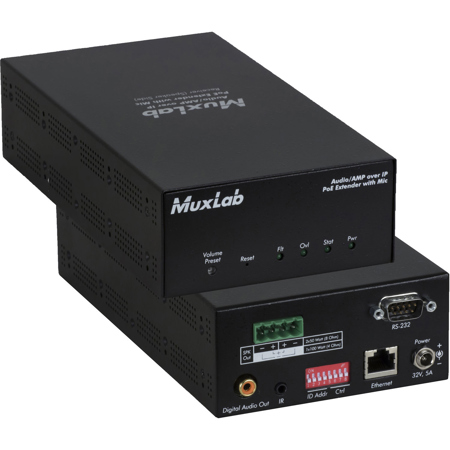

Muxlab Audio/AMP Over IP Receiver with Amplifier 50W/CH, US

SKU: ML500755RXUS MFR: 500755-AMP-RX-US
Earn VIP Reward Points

Key Features

  • Distribute 2CH analog audio over IP networks using this Muxlab audio receiver.
  • Amplify your audio experience with a robust 50W/CH amplifier for crystal-clear sound.
  • Connect various devices: audio sources, mics, speakers, & PA systems via IP network.
  • Achieve up to 330ft (100m) distance with Cat5e/6 cables, optimizing your audio setup.
  • Enjoy versatile connectivity with RJ45, 3.5mm jack, and DB9 Serial Ports for RS232.
  • Power your audio setup efficiently with the included 160W power supply for reliability.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Muxlab 500755-AMP Specifications

  • Environment

    2CH analog audio distribution over multiple zones via an IP network

  • Devices

    2CH audio source equipment, microphone systems, speakers, PA systems

  • Signal Bandwidth

    20Hz to 20KHz

  • Audio Signals

    Two (2) 2CH analog audio in
    One (1) SPDIF Out (2CH digital audio)

  • Connectors

    One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair (RX)
    One (1) 3.5mm jack for IR Emitter or IR Sensor (RX)
    One (1) DB9 Serial Ports for RS232 (RX)
    One (1) 8-position DIP Switches for device ID addressing and config (RX)
    One (1) 4 pin phoenix connector speaker terminals (2x50W into 8 Ohm)
    One (1) 2.1mm locking power connector (RX)

  • Cable

    One (1) Cat 5e/6 or better twisted pair cables required

  • Maximum Distance

    Cat5e/6: 330' (100m)

  • IR Frequency Directional

    IR: 38KHz to 56KHz

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • Power Source

    Includes a power supply (160W maximum, 32VDC 5A)

  • PoE Standard

    IEEE 802.3af

  • Power Consumption

    160W (Max)

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 90% non-condensing

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.33 x 7.91 x 1.97" (11 x 20.1 x 5cm)

  • Weight

    1.96 lbs (889g)

About Muxlab 500755-AMP

The Audio / AMP over IP Extender Receiver is allowing a one of two 2CH analog audio-in signals to be extended over an IP network, and up to 330ft (100m) from an Ethernet Switch via Cat5e/6 cable in a point-to-point configuration. Point-tomultipoint and multipoint-to-multipoint is supported by connecting several Transmitters and Receivers to the same local Ethernet network. Depending on the application one or more Transmitters (500755-AMP-TX) can communicate with (or multicast to) multiple Receivers (500755-AMP-RX).

Applications:
• 2CH analog audio distribution over an IP network
• Commercial and residential AV systems
• Classroom projector systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 500755-AMP Features

  • Extend 2CH Audio signals up to 330' (100m) over Cat5e/6 cable
  • Supports a 2x50W Amplifier, and bridge-mode for 1x100W
  • Supports Digital Audio Out
  • Manage RX locally via push/turn dial or remotely via 500811 Pro Digital Network Controller web interface
  • Compatible with 500755-70V for 70V speaker systems
  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Supports 100's of Transceivers depending on network bandwidth
  • Supports RS232 and IR transmission for remote control of end devices

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Distribute 2CH analog audio over IP networks using this Muxlab audio receiver.
  • Amplify your audio experience with a robust 50W/CH amplifier for crystal-clear sound.
  • Connect various devices: audio sources, mics, speakers, & PA systems via IP network.
  • Achieve up to 330ft (100m) distance with Cat5e/6 cables, optimizing your audio setup.
  • Enjoy versatile connectivity with RJ45, 3.5mm jack, and DB9 Serial Ports for RS232.
  • Power your audio setup efficiently with the included 160W power supply for reliability.

What's in the box:

  • Muxlab Audio/AMP Over IP Receiver with Amplifier 50W/CH (US)
  • Power Supply
  • Muxlab 3 Year Limited Warranty
