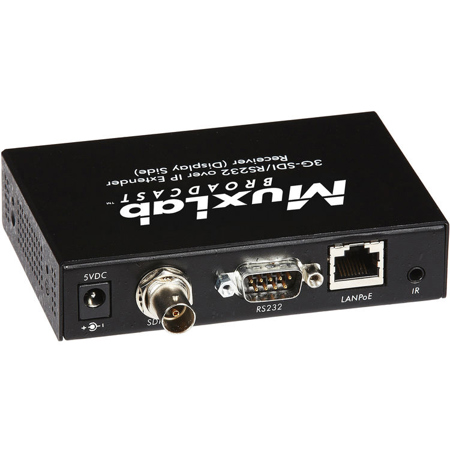

Muxlab 500756: Picture 1 thumbnail

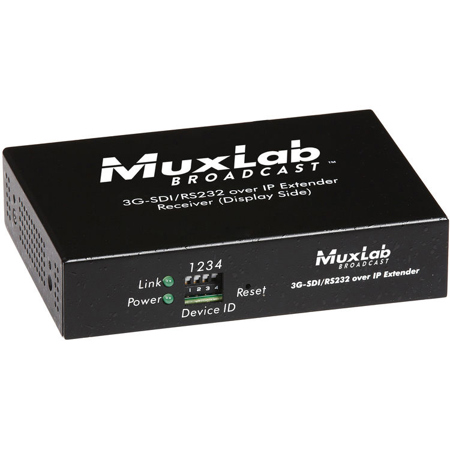

Muxlab 500756: Picture 2 thumbnail
See all Muxlab items

Muxlab 3G-SDI/RS232 Over IP Receiver with PoE

SKU: ML500756RX MFR: 500756-RX
Be the first to review this itemAsk a Question
$522.00
OR
$87/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Streamline your broadcast setup with this 3G-SDI over IP receiver, ensuring top performance.
  • Experience transparent transmission with this receiver, ideal for cameras and broadcast equipment.
  • Extend your 3G-SDI signal up to 330' via Cat5e/6 cable with a LAN switch for flexible connectivity.
  • Minimize latency with only one frame delay, ensuring near real-time video and audio synchronization.
  • This Muxlab receiver supports PoE for simplified installation, reducing cable clutter and setup time.
  • Manage devices easily using the DB9 serial port connector for remote control and configuration.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Muxlab 500756 Specifications

  • Environment

    3G-SDI

  • Devices

    Camera, monitor and other broadcast equipment supporting 3G-SDI

  • Transmission

    Transparent to the user

  • Video Bandwidth

    2.94Gbps

  • Signal

    3G-SDI protocol

  • Connectors

    One (1) 3G-SDI (BNC)
    One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair
    One (1) 3.5mm jack for IR emitter/sensor
    One (1) DB9 Serial Port Connector
    Four (4) DIP Switches for device ID addressing

  • Maximum Distance

    Based on a maximum length of 6.6' (2m) of HDMI cable per end:
    Cat5e/6: 330' (100m) with LAN switch
    Cat5e/6: 400' (120m) without LAN switch (point to point only)

  • Latency

    One (1) Frame

  • Compression

    Motion JPEG

  • Network Bandwidth

    60Mbps

  • RJ45 Pin Configuration

    RJ45 Link:
    Pin 1 (R) Pin 2 (T)
    Pin 3 (R) Pin 6 (T)
    Pin 4 (R) Pin 5 (T)
    Pin 7 (R) Pin 8 (T)

  • IR Frequency

    38KHz to 56KHz

  • Network Requirement

    100BaseT for Point to Point; 1000BaseT for other configurations

  • Cable

    One (1) Cat 5e/6 or better twisted pair cable required

  • Power Supply

    This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately

  • PoE

    IEEE 802.3af

  • Power Consumption

    1.8Watt

  • Temperature

    Operating: 32 to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 to 185 Degree F (-20 Degree to 85 Degree C)
    Humidity: Up to 95% non-condensing

  • Enclosure

    Metal black

  • Compliance

    Regulatory: FCC, CE, RoHS
    Flammability: 94V0

  • Dimensions

    4.4 x 3 x 1" (11.2 x 7.6 x 2.5cm)

  • Weight

    1.1 lbs (499g)

About Muxlab 500756

The 3G-SDI / RS232 over IP Extender Receiver with PoE allows SDI equipment to be connected up to 330ft (100m) @ 1080p through an IP network. Point-to-Multipoint, and Multipoint-to-Multipoint is possible by connecting several Transmitters to the same network. Supports 100's of Receivers, depending on network bandwidth.

The Receivers (500756-RX) also support PoE (PD) if used with a PoE (PSE) LAN Switch. In a Point-To-Point network (where no LAN switch is used) distances of up to 390ft (120m) can be achieved over single Cat5e/6. Comes with one (1) Receiver.

For the Point-to-Multipoint and Multipoint-to-Multipoint configurations, the Ethernet switch must have Gigabit ports, DHCP Server capability, and support the IGMP communications protocol. Muxlab recommends using the Cisco SG300 Series Managed Switches.The Muxlab ProDigital Network Controller (500811) is available to simplify the configuration and utilization of the 500756 over an IP network.

Muxlab 500756 Features

  • Supports up to 1080p resolutions
  • Motion JPEG compression with very low latency
  • Supports 100's of Receivers, depending on network bandwidth
  • LAN Switch based configurations support point-to-point, point-to-multipoint and multipoint-to-multipoint
  • Extend transmission up to 330' (100m) over an IP Network (when a LAN Switch is used)
  • Extend transmission up to 390' (120m) in a point-to-point configuration (when a LAN switch is not used)
  • Supports RS232 and one way IR transmission for remote control of end devices
  • PoE powered
  • Compatible with the 500811 Pro Digital Network Controller for software management
  • Compatible with 500752, 500753 and 500754 products

Warranty Information

This product has a limited warranty of 36 months.
